小松 PC 60

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

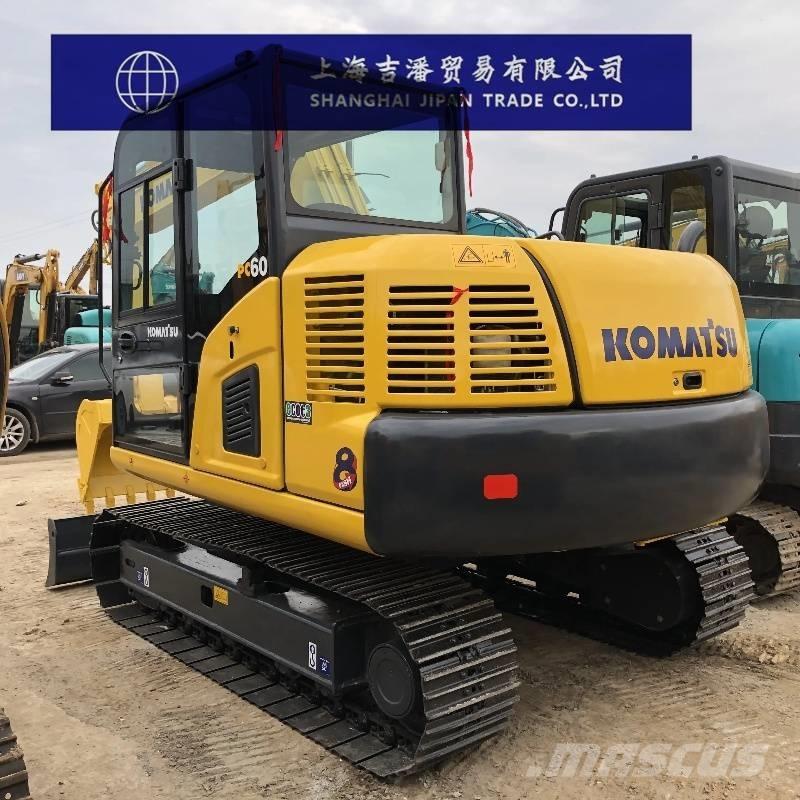

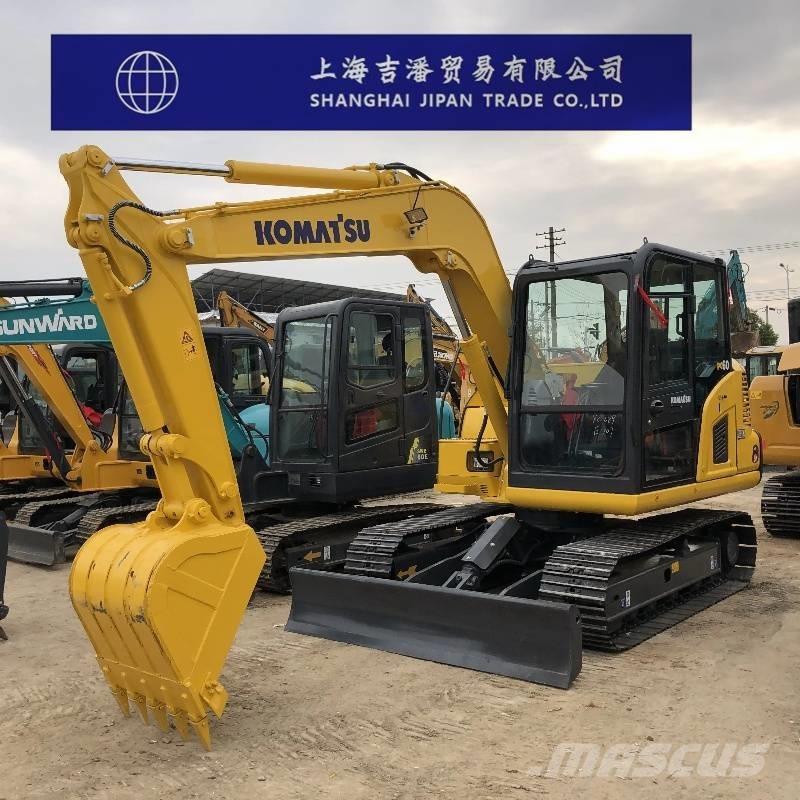

Komatsu PC60-8 Excavator Parameter Configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 6 The working weight of the whole machine (kg) is 6180 Bucket capacity (m³) 0.25~0.37 performance Rotational speed (rpm) 10 Travel speed (km/h) 2.8-4.5 Grounding specific pressure (Kpa) 28.4 Bucket digging force (kN) 54.8 Stick digging force (kN) 39.8 Maximum traction (kN) 56.6 dynamical system Engine model Komatsu SAA4D95LE-5 Rated power (kw/rpm) 40.7/1950 Displacement (L) 3.26 Number of cylinders (units) 4 Bore × stroke (mm) 95*115 Cooling method: Water cooling Working form turbocharged Hydraulic system Main pump type variable piston pump The maximum flow rate of the main pump (l/min) is 172 Pilot oil circuit (MPa) 2.9 Working Hydraulic Oil Circuit (Mpa) 24.5 Traveling hydraulic circuit (Mpa) 24.5 Slewing hydraulic circuit (Mpa) 21.1 Boom cylinder - number × bore × stroke (mm) 1-115*840 Bucket cylinder - number × bore × stroke (mm) 1-100*865 Bucket cylinder - number of pieces× bore × stroke (mm) 1-90*710 Whether the hydraulic crushing pipeline is standard or not Oil capacity Fuel tank (L) 130 Hydraulic Tank (L) 95 Engine oil change volume (L) 12.5 Coolant (L) 10 Body size Total length of transport (mm) 6035 Total width of transport (mm) 2225 Total height of transport (mm) 2620 Track grounding length (mm) 2130 Total track length (mm) 2765 Track shoe width (mm) 450 Total Track Width (mm) 2150 Track gauge (mm) 1700 Minimum ground clearance (mm) 350 Counterweight ground clearance (mm) 750 The minimum turning radius (mm) of the front working device is 1700 Rear end slewing radius (mm) 1750 Number of support wheels (one side) (pcs) 1 Number of track shoes (single side) (pcs) 38 Number of support wheels (unilateral) (pieces) 5 Scope of work Maximum digging radius (mm) 6190 The maximum excavation radius of the shutdown surface (mm) is 6045 Maximum digging depth (mm) 3900 Maximum digging height (mm) 7030 Maximum unloading height (mm) 4925 Maximum vertical digging depth (mm) 3350
