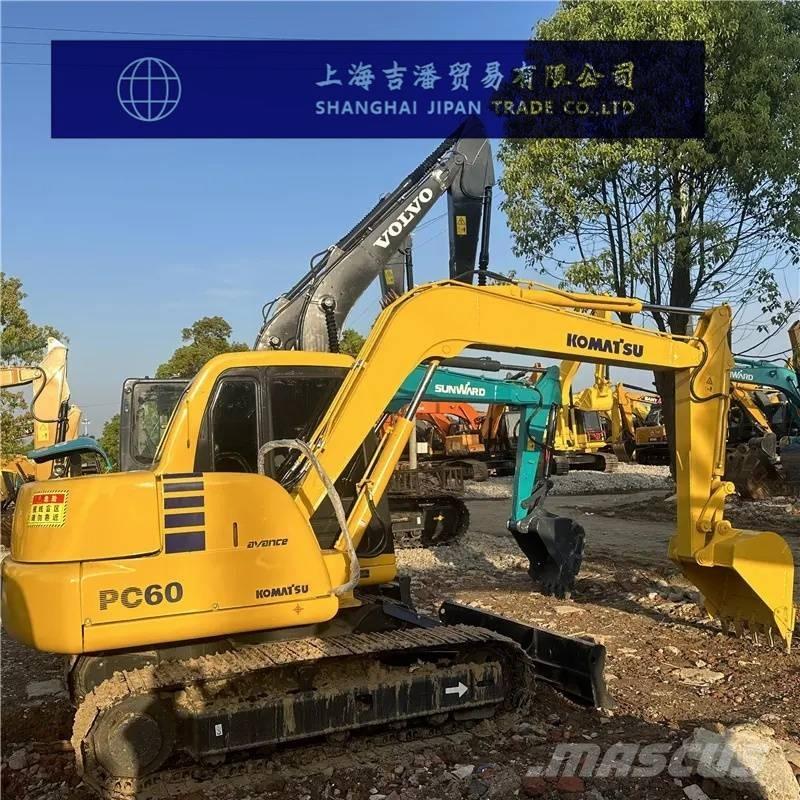

小松 PC 60

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Komatsu PC60-7 excavator parameter configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe The working weight of the whole machine (kg) is 6300 Bucket capacity (m³) 0.28-0.37 Boom length (mm) 3710 Stick length (mm) 1650 Origin: Japan Tonnage (tons) 6 performance Rotation speed (rpm) 12 Travel speed (km/h) 2.8-4.5 Grounding specific pressure (Kpa) 28.4 Bucket digging force (kN) 54.8kN The digging force of the stick (kN) is 37.3kN Maximum traction (kN) 56.37KN dynamical system Engine model Komatsu 4D95LE Rated power (kw/rpm) 40/2100 Displacement (L) 3.26 Working form 4-stroke, water-cooled, direct injection engine; Bore: 95mm; Stroke: 115mm; Mechanical speed regulation throughout the process. Hydraulic system Rotary hydraulic motor type axial plunger type × 1 Traveling hydraulic motor type: axial plunger type×2 The maximum flow rate of the main pump (l/min) is 155L/min Working Hydraulic Oil Circuit (Mpa) 24.5 Traveling hydraulic circuit (Mpa) 24.5 Slewing Hydraulic Circuit (Mpa) 19.1 Control Hydraulic Circuit (Mpa) 2.9 Boom cylinder - number × bore × stroke (mm) 115×840×65 Bucket cylinder - number × bore × stroke (mm) 100×865×60 Bucket cylinder - number × bore × stroke (mm) 90×710×60 Whether the hydraulic crushing pipeline is standard or not Oil capacity Fuel tank (L) 130 Hydraulic Tank (L) 90 Engine oil change volume (L) 11 Coolant (L) 10.3 Body size Total length of transport (mm) 6080 Total width of transport (mm) 2225 Total height of transport (mm) 2590 Cab total height (mm) 2590 Track grounding length (mm) 2130 Total track length (mm) 2765 Track shoe width (mm) 450 Total Track Width (mm) 2150 Track gauge (mm) 1700 Minimum ground clearance (mm) 350 Counterweight ground clearance (mm) 750 Rear end slewing radius (mm) 1750 Scope of work Maximum digging radius (mm) 6360 The maximum excavation radius of the stopping surface (mm) is 6220 Maximum digging depth (mm) 4100 Maximum digging height (mm) 7150 Maximum unloading height (mm) 5015 Maximum vertical digging depth (mm) 3505 Maximum effective digging depth (mm) 3755 Bulldozer shovel lifting or pushing depth (mm) 270/410
