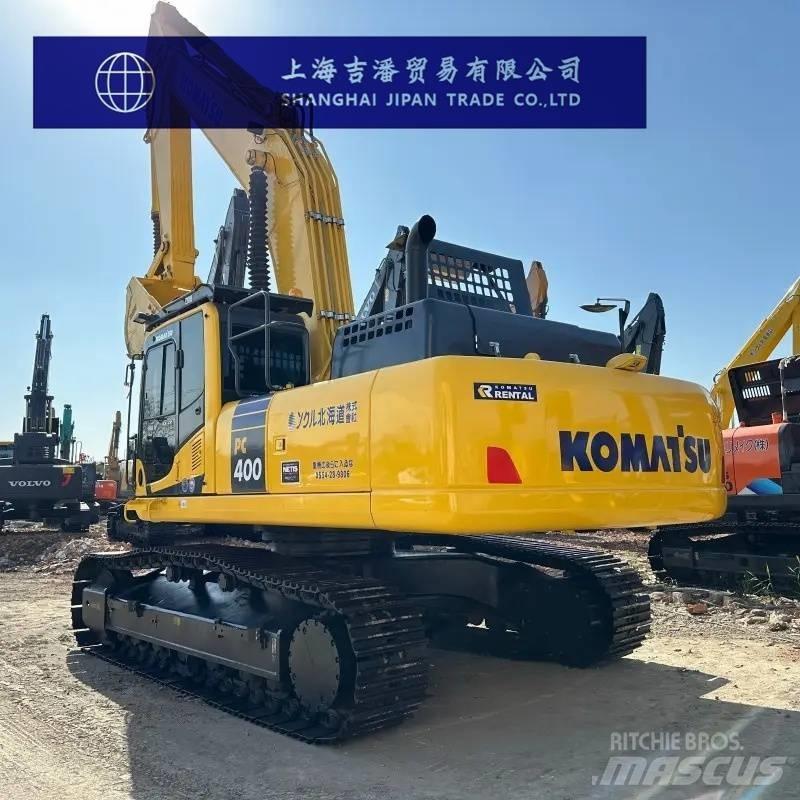

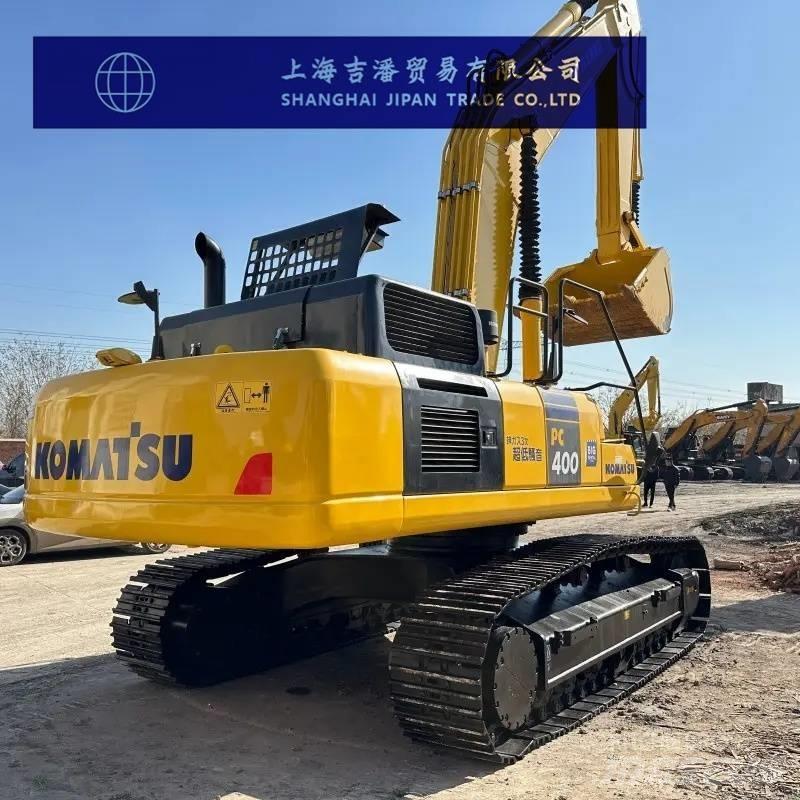

小松 PC 400

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Power, traditional power Joint venture/import by manufacturers Bucket backhoe The working weight of the entire machine (kg) is 42100 Bucket capacity (m³)1.9 Boom length (mm) : 7060 The length of the bucket pole (mm) is 3380 Origin: Jining, Shandong Province Tonnage (tons)40 Bucket backhoe Joint venture/import by manufacturers Power, traditional power Performance Rotational speed (rpm) : 9.1 Walking speed (km/h) : 3.0/4.0/5.5 Climbing ability (%)70/35° Grounding specific pressure (Kpa) : 78.2 Bucket digging force (kN)278 The digging force of the boom (kN)233 Power system Engine model: Komatsu SAA6D1125E-5 Rated power (kw/rpm)257/1900 Displacement (L) : 11.04 Number of cylinders (units)6 Bore × stroke (mm)125×150 The cooling method is water cooling The working forms are direct injection, turbocharging and electronic full-range speed regulation Hydraulic system The type of walking hydraulic motor is axial piston type ×2 Rotary hydraulic motor type: Axial piston type ×1 The maximum flow rate of the main pump (l/min) is 690 Walking hydraulic circuit (Mpa)37.3 Rotary hydraulic circuit (Mpa)27.9 Control the hydraulic circuit (Mpa)3.2 pilot oil circuit Boom cylinder - Number × cylinder bore × stroke (mm)160×1570×110 Bucket rod cylinder - Number × cylinder diameter × Stroke (mm)185×1985×130 Bucket cylinder - Number × cylinder diameter × stroke (mm)160×1270×110 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)650 Hydraulic oil tank (L)248 Engine oil change volume (L)37 Coolant (L)36 Main body size Total transportation length (mm) : 11940 Total transportation width (mm) : 3340 Total transportation height (mm) : 3660 The total height of the cab (mm) is 3285 Track grounding length (mm)4020 Total track length (mm) : 5055 Track plate width (mm)600 The total width of the track (mm) is 3340 Track gauge (mm)2740 Minimum ground clearance (mm)567 Counterweight ground clearance (mm)1320 Rear end rotation radius (mm) : 3605 Scope of work Maximum excavation radius (mm) : 12005 The maximum excavation radius (mm) of the shutdown surface is 11800 Maximum excavation depth (mm) : 7790 Maximum excavation height (mm) : 10,925 Maximum unloading height (mm)7625 The maximum vertical excavation depth (mm) is 6600 The bulldozer lift or push deep (mm) without a bulldozer plate
