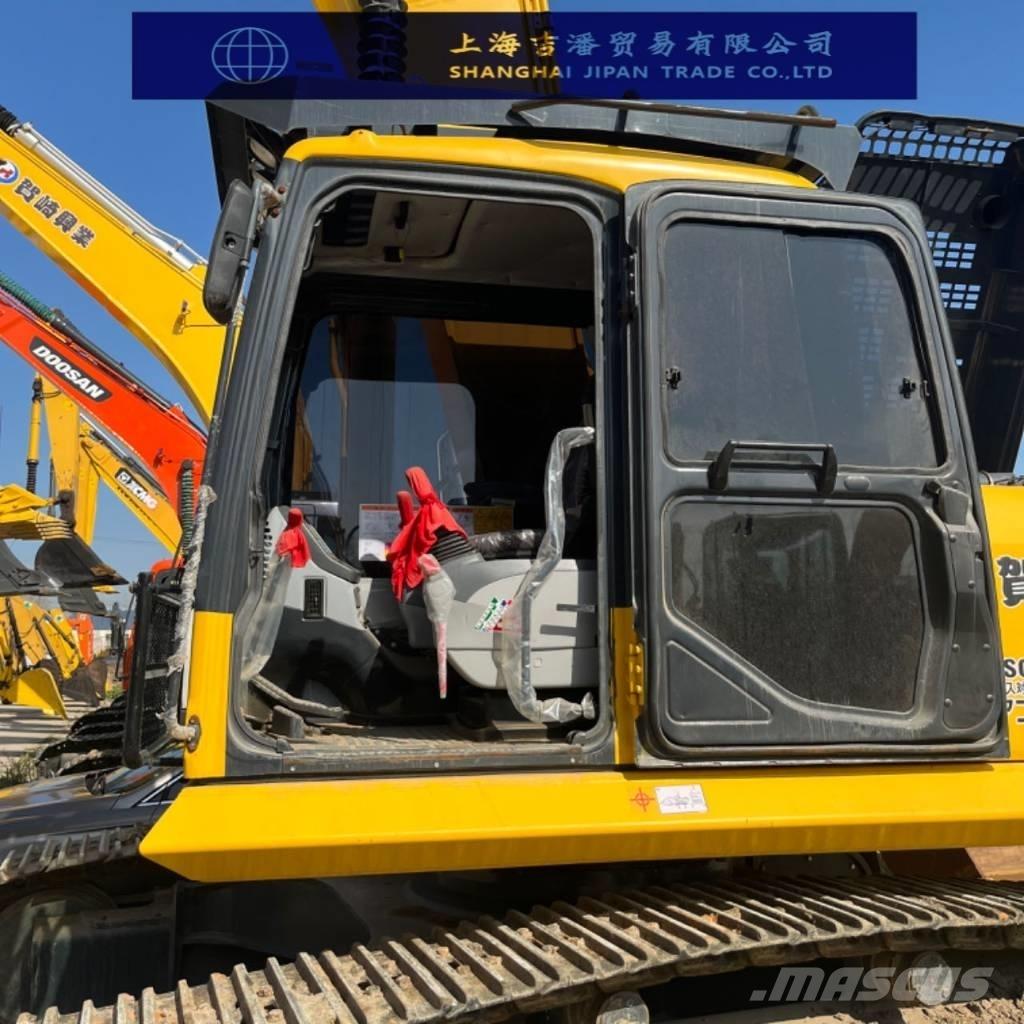

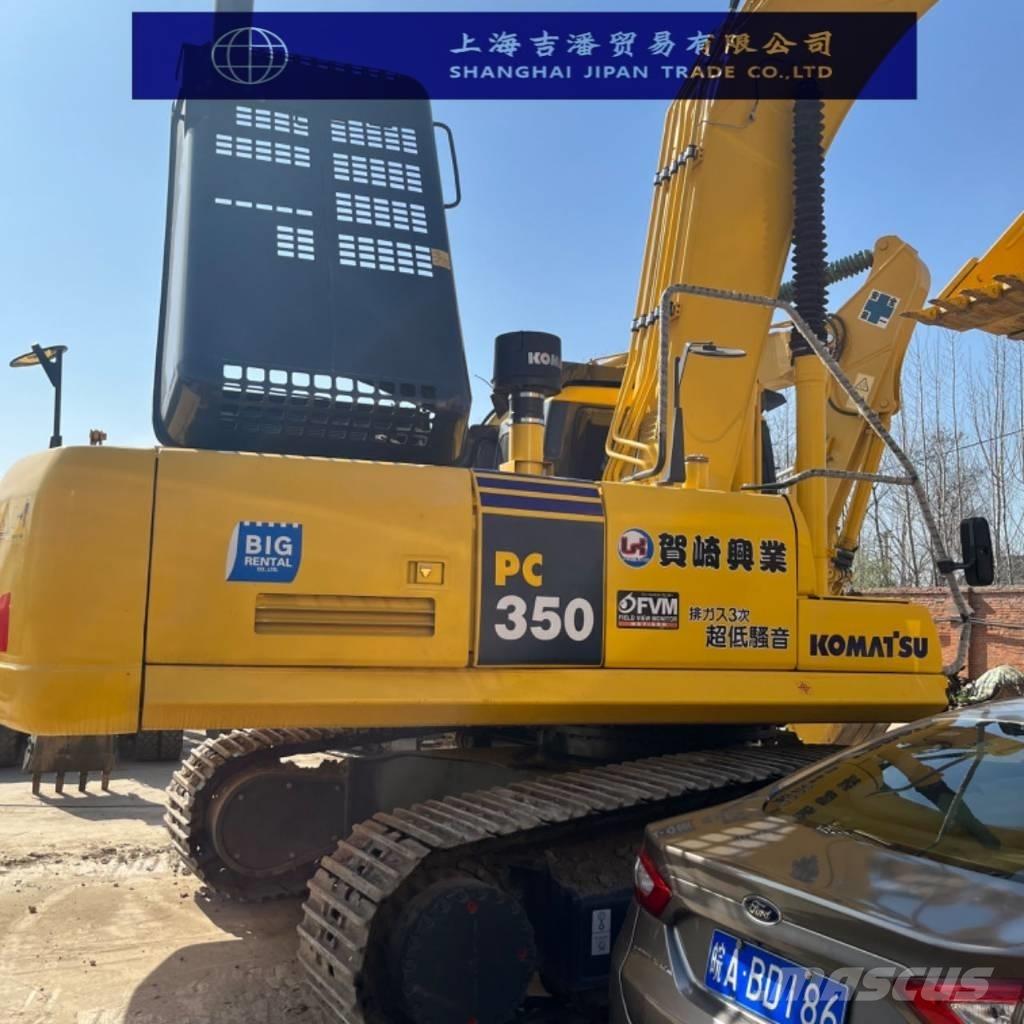

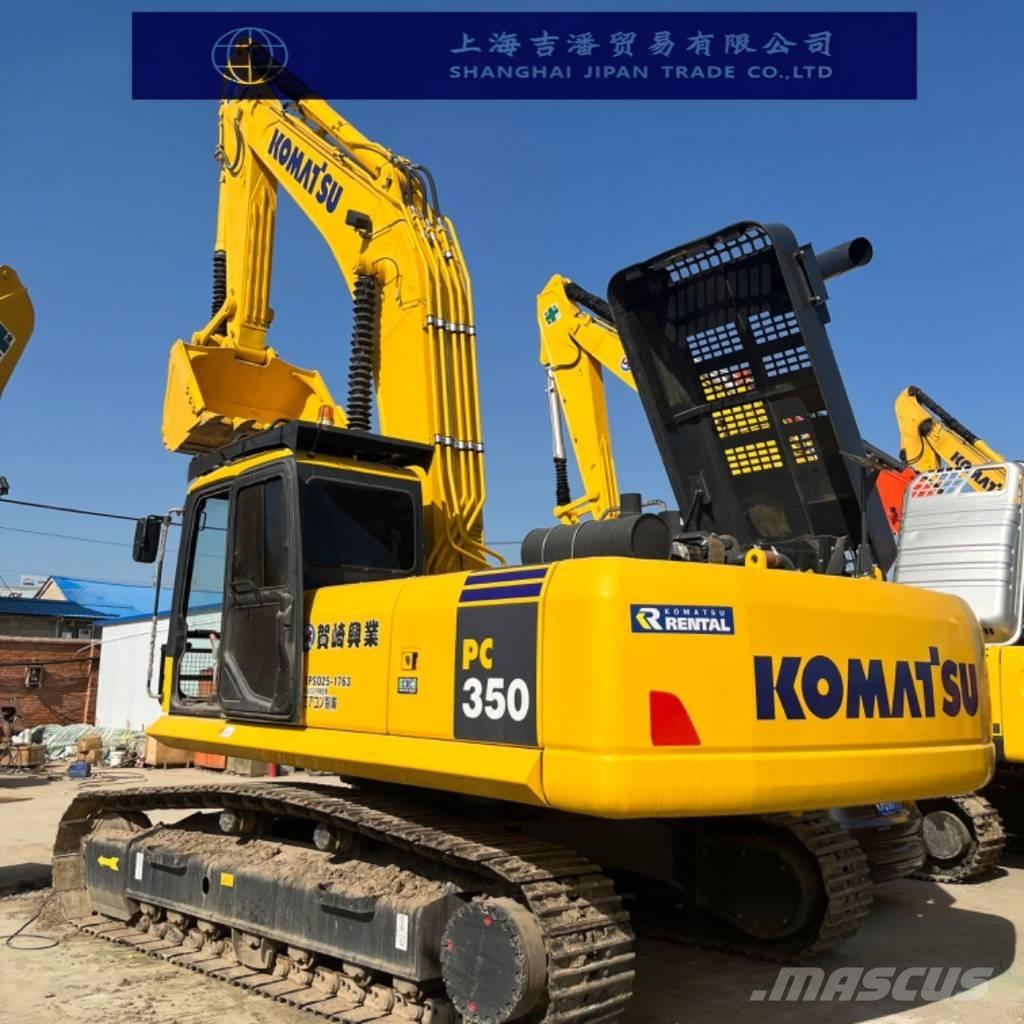

小松 PC 350

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Machine Parameters: Operating weight: 32,600 kg Bucket capacity: 1.4 m³ Boom length: 6,470 mm Arm length: 3,185 mm Ton class: 35 tons Performance Parameters: Swing speed: 9.5 rpm Travel speed: 3.2/4.5/5.5 km/h Gradeability: 70% Power System Parameters: Engine model: Komatsu SAA6D114E-3 Rated power: 184 kW @ 1,950 rpm Number of cylinders: 6 Bore × stroke: 114 × 135 mm Cooling method: Water-cooled Hydraulic System Parameters: Maximum main pump flow: 535 l/min Working hydraulic circuit pressure: 37.3 Mpa Travel hydraulic circuit pressure: 37.3 Mpa Swing hydraulic circuit pressure: 27.9 Mpa Control hydraulic circuit pressure: 3.2 Mpa Boom cylinders - Quantity × Bore × Stroke: 2 - 140 × 1,480 mm Arm cylinders - Quantity × Bore × Stroke: 1 - 160 × 1,825 mm Bucket cylinders - Quantity × Bore × Stroke: 1 - 140 × 1,285 mm Fluid Capacity Parameters: Fuel tank: 605 L Hydraulic oil tank: 188 L Engine oil change capacity: 35 L Coolant: 32 L
