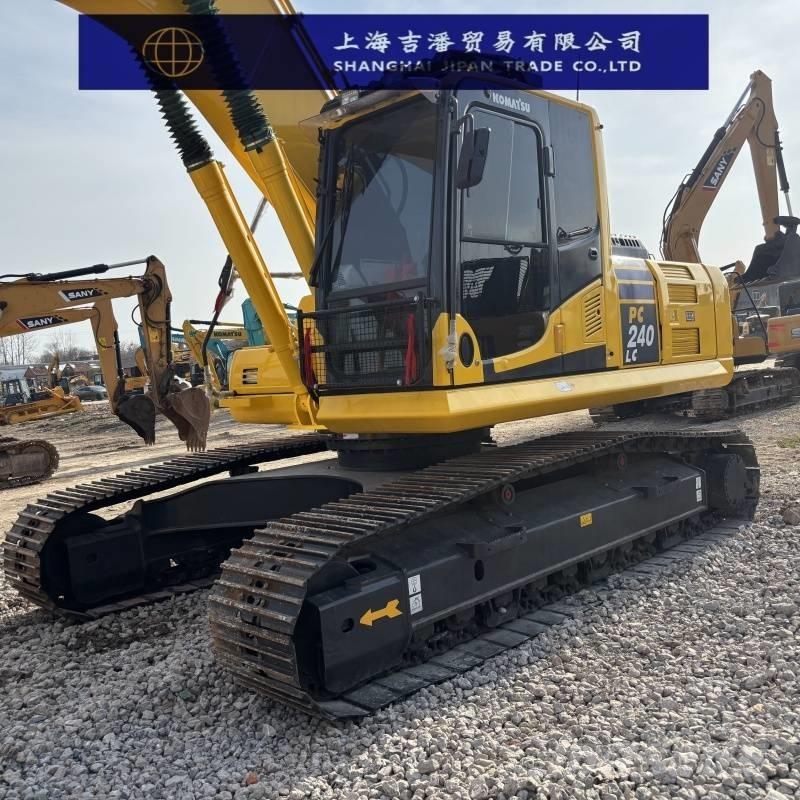

小松 PC 240

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Specifications Operating weight: 25,130 kg Bucket capacity: 1.2 m³ Boom length: 5,850 mm Arm length: 3,045 mm Tonnage: 24 tons Bucket type: Backhoe Manufacturer: Joint venture/Imported Power type: Conventional power Performance Swing speed: 11.7 rpm Travel speed: 3.1 / 4.2 / 5.5 km/h Gradeability: 70% / 35° Ground pressure: 41.7 Kpa Bucket digging force: 172 kN Arm digging force: 129 kN Power System Engine model: Komatsu SAA6D107E-1 Rated power: 125 kW / 2000 rpm Displacement: 6.69 L Number of cylinders: 6 Bore × stroke: 107 × 124 mm Cooling system: Water-cooled Operation type: Direct injection, turbocharged, after-cooled; Complies with 2006 EPA/Tier 3 and EU IIIA standards Hydraulic System Main pump maximum flow: 439 l/min Travel hydraulic motor type: Axial piston motor × 2 (with parking brake) Swing hydraulic motor type: Axial piston motor × 1 (with swing hold valve) Travel hydraulic circuit pressure: 37.3 Mpa Swing hydraulic circuit pressure: 28.9 Mpa Control hydraulic circuit pressure: 3.2 Mpa (pilot oil circuit) Boom cylinder - Quantity × Bore × Stroke: 130 × 1,335 × 90 mm Arm cylinder - Quantity × Bore × Stroke: 140 × 1,635 × 100 mm Bucket cylinder - Quantity × Bore × Stroke: 130 × 1,020 × 90 mm Hydraulic breaker pipeline: Not standard Fluid Capacities Fuel tank: 400 L Hydraulic oil tank: 135 L Engine oil change capacity: 23.1 L Coolant: 19.8 L Dimensions Overall transport length: 9,885 mm Overall transport width: 3,280 mm Overall transport height: 3,185 mm Overall height of cab: 3,055 mm Counterweight ground clearance: 1,100 mm Track contact length: 3,845 mm Total track length: 4,640 mm Track shoe width: 700 mm Total track width: 3,280 mm Track gauge: 2,580 mm Minimum ground clearance: 440 mm Rear swing radius: 2,905 mm Working Range Maximum digging radius: 10,180 mm Maximum digging radius at ground level: 10,020 mm Maximum digging depth: 6,920 mm Maximum digging height: 10,000 mm Maximum dumping height: 7,035 mm Maximum vertical digging depth: 6,010 mm Maximum effective digging depth: 6,700 mm Bulldozer lift or push depth: No bulldozer
