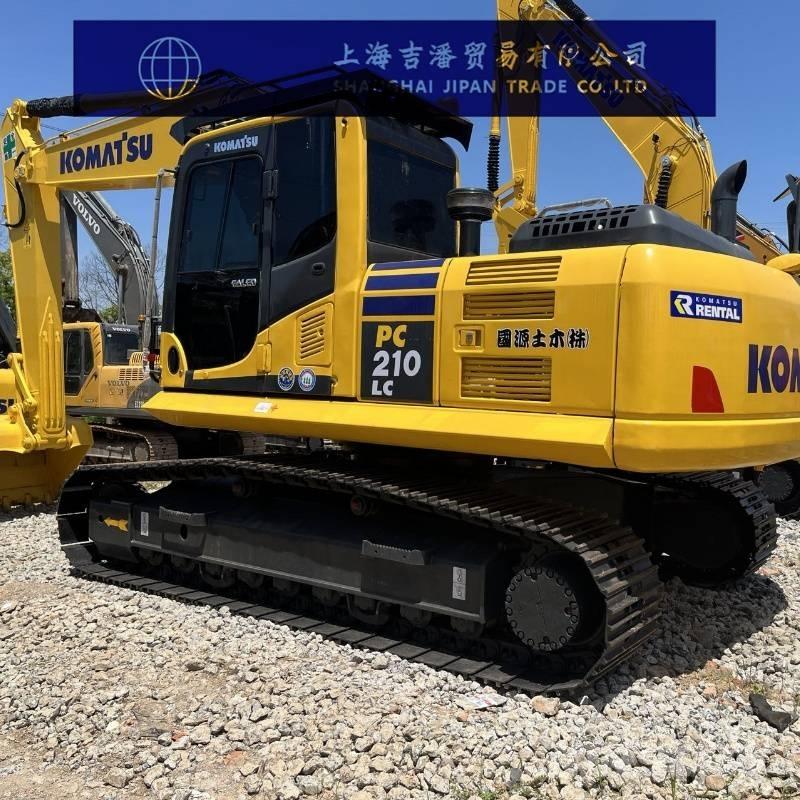

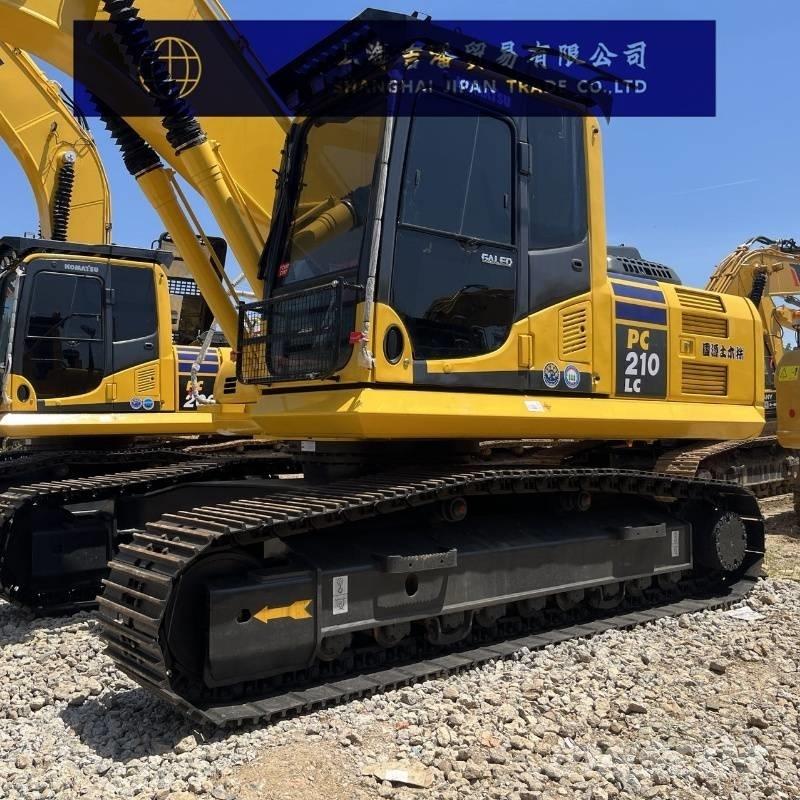

小松 PC 210

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Parameters Operating Weight: 22400-22800kg Total Power: 123.2kW (168PS) Bucket Capacity: 1.00-1.20m³ Dimension Parameters Overall Length: 9705mm Overall Width: 2800mm Overall Height (to Cab Top): 3045mm Performance Parameters Travel Speed: High 5.5km/h, Medium 4.1km/h, Low 3.0km/h Maximum Bucket Digging Force: 149kN Maximum Arm Digging Force: 108kN Working Range Parameters Maximum Digging Height: 10000mm Maximum Dumping Height: 7110mm Maximum Digging Depth: 6620mm Maximum Vertical Digging Depth: 5980mm Maximum Digging Radius: 9875mm Maximum Digging Radius at Ground Level: 9700mm Engine Parameters Model: SAA6D107E-3 Rated Speed: 2000rpm Displacement: 6.69L PC210-8M0 Basic Parameters Machine Operating Weight: 20100-20550kg Bucket Capacity: 0.94m³ Dimension Parameters Total Transport Length: 9425mm Total Transport Width: 2800mm Total Transport Height (to Boom Top): 2970mm Cab Overall Height: 3040mm Performance Parameters Swing Speed: 12.4rpm Travel Speed: High 5.5km/h, Medium 4.1km/h, Low 3.0km/h Gradeability: 70% (35°) Ground Pressure: 35.7/46.5Kpa Bucket Digging Force: 149kN Arm Digging Force: 108kN Maximum Traction Force: 178kN Working Range Parameters Maximum Digging Radius: 9875mm Maximum Digging Radius at 停机面: 9700mm Maximum Digging Depth: 6620mm Maximum Digging Height: 10000mm Maximum Dumping Height: 7110mm Maximum Vertical Digging Depth: 5980mm Engine Parameters Model: Komatsu SAA6D107E-1 Rated Power: 103kW/2000rpm Displacement: 6.69L Hydraulic System Parameters Main Pump Type: Variable Displacement Piston Pump Maximum Main Pump Flow: 439L/min Travel Hydraulic Motor Type: Axial Piston Motor × 2 (with Parking Brake) Swing Hydraulic Motor Type: Axial Piston Motor × 1 (with Swing Holding Brake) Working Hydraulic Circuit Pressure: 37.3MPa Travel Hydraulic Circuit Pressure: 37.3MPa Swing Hydraulic Circuit Pressure: 28.9MPa Pilot Circuit Pressure: 3.2MPa
