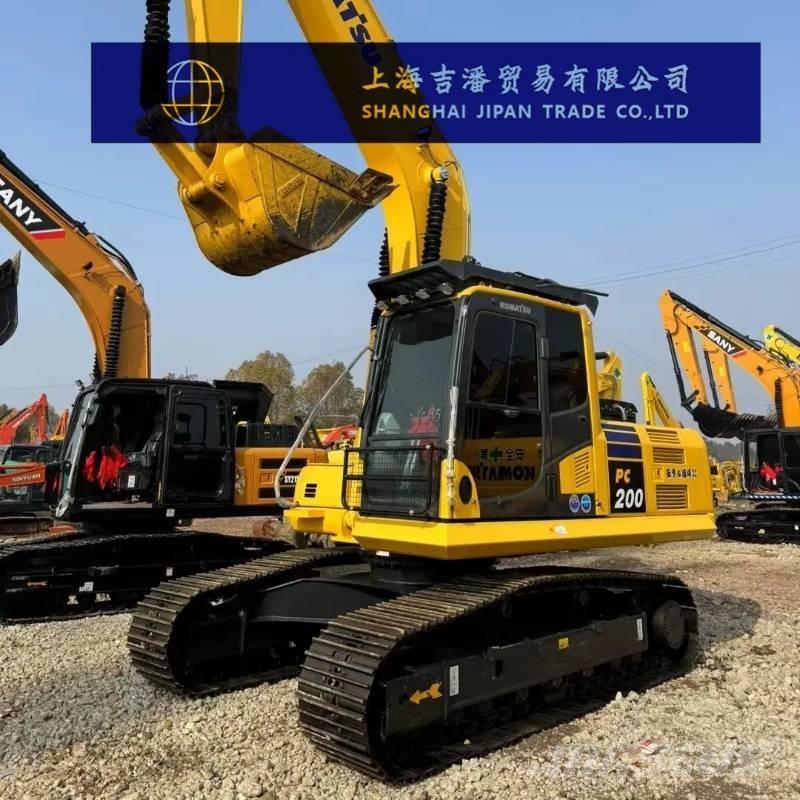

小松 PC 200

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Komatsu PC200-7 excavator parameter configuration specification The working weight of the whole machine (kg) is 20253 Bucket capacity (m³) 0.8 Stick length (mm) 1840/2410 Origin: Japan Tonnage (tons) 20 Bucket backhoe Joint ventures/imports Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Travel speed (km/h) 12.4 Bucket digging force (kN) 149 Stick digging force (kN) 145 dynamical system Engine model Komatsu SAA6D102E-2 Rated power (kw/rpm) 107 Displacement (L) 5.883 Bore × stroke (mm) 102×120 Cooling method: Water cooling Working form 4-stroke, water-cooled, direct injection Hydraulic system Main pump type variable piston pump The maximum flow rate of the main pump (l/min) is 2*214 Travel Hydraulic Circuit (Mpa) 37.3 Slewing hydraulic circuit (Mpa) 28.9 Control Hydraulic Circuit (Mpa) 3.2 Oil capacity Fuel tank (L) 400 Hydraulic Tank (L) 143 Engine oil change volume (L) 24 Coolant (L) 22.4 Body size Total length of transport (mm) 9480 Total Transport Width (mm) 3000 Total height of transport (mm) 2985 Cab Total Height (mm) 2095 Track grounding length (mm) 3270 Total track length (mm) 4080 Track shoe width (mm) 600 Total track width (mm) 3000 Rear end slewing radius (mm) 3270 Scope of work Maximum digging radius (mm) 9380 The maximum excavation radius of the stopping surface (mm) is 8660 Maximum digging depth (mm) 5380 Maximum digging height (mm) 9800 Maximum unloading height (mm) 6890
