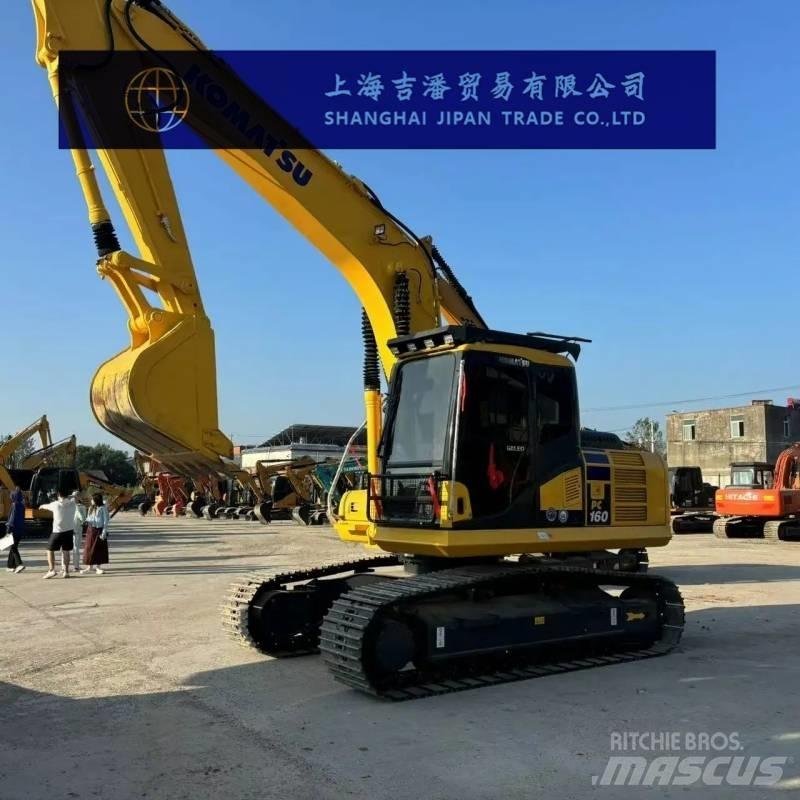

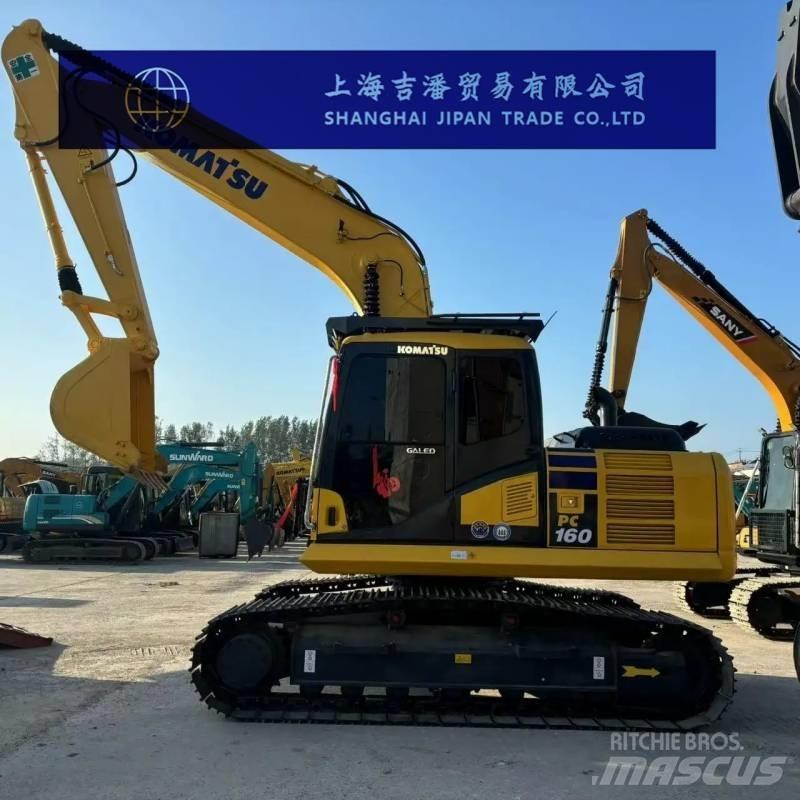

小松 PC 160

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Komatsu PC160 excavator Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)16 The working weight of the entire machine (kg) is 16700-17140 Bucket capacity (m³) : 0.65 Boom length (mm) : 5150 The length of the boom (mm) is 2610 Performance Rotational speed (rpm)12 Walking speed (km/h) : 3.4-5.5 Climbing ability (%) : 70 Bucket digging force (kN)122.6 The digging force of the bucket arm (kN) is 86.3 The maximum traction force (kN) is 156.4 Power system Engine model: Komatsu SAA4D107E-1 Rated power (kw/rpm) : 85/2200 Displacement (L)4.46 Number of cylinders (4) Cylinder diameter × stroke (mm)107*124 The cooling method is water cooling Hydraulic system The main pump type is a variable piston pump The maximum flow rate of the main pump (l/min) is 312 Pilot oil Circuit (MPa)3.2 The working hydraulic circuit (Mpa) is 34.8 The walking hydraulic circuit (Mpa) is 37.3 Rotary hydraulic circuit (Mpa)28.9 Boom cylinders - number × cylinder diameter × stroke (mm)2-110*1175 Bucket rod cylinder - number × cylinder diameter × stroke (mm)1-120*1342 Bucket cylinder - number × cylinder diameter × stroke (mm)1-105*1027 Oil capacity Fuel tank (L)280 Hydraulic oil tank (L)190 Engine oil change volume (L)17.9 (16) Coolant (L)18.5 Main body size Total transportation length (mm) : 8565 The total transportation width (mm) is 2490 Total transportation height (mm) : 3015 Track grounding length (mm) : 3170 The total length of the track (mm) is 3965 Track plate width (mm) : 500 The total width of the tracks (mm) is 2490 Track gauge (mm)1990 Minimum ground clearance (mm) : 440 The ground clearance of the counterweight (mm) is 1055 The minimum turning radius (mm) of the front working device is 2990 The rear end turning radius (mm) is 2390 Number of supporting wheels (single side) (units)7 Number of idler wheels (single side) (units)2 Number of track plates (single side) (pieces)44 Scope of work Maximum excavation radius (mm) : 8960 The maximum excavation radius of the shutdown face (mm) is 8800 Maximum excavation depth (mm) : 5960 Maximum excavation height (mm) : 8980 Maximum unloading height (mm) : 6370 Maximum vertical excavation depth (mm) : 5040
