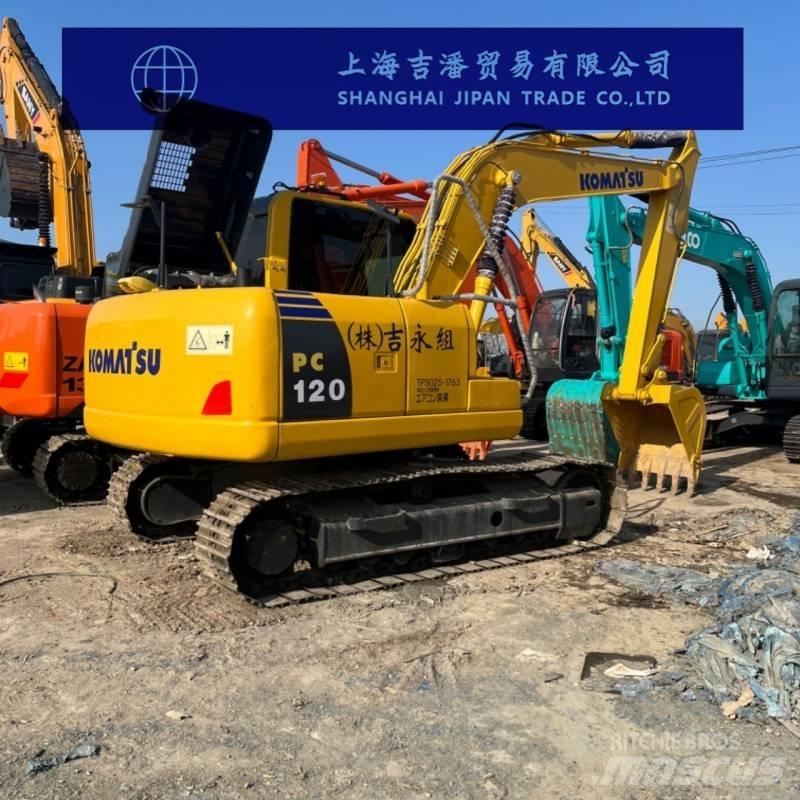

小松 PC 120

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification The overall working weight of the machine (kg) is 12,030 Bucket capacity (m³)0.5 The length of the boom (mm) is 2100 Tonnage (tons)12 Manufacturer: Joint venture/Imported Power: Traditional power Bucket: Backhoe Performance Ground pressure (Kpa) : 0.39kg/ cm ² Rotational speed (rpm)11 Walking speed (km/h) : 2.7-5.5 Climbing ability (%)70/30° Bucket digging force (kN) : 8800 The digging force of the bucket arm (kN) is 6300 Power system Engine model: Komatsu SAA4D95LE-3 Rated power (kw/rpm)64/2200 Displacement (L)3.26 The cooling method is water cooling The working forms are direct injection, turbocharged and intercooled diesel engines Hydraulic system The maximum flow rate of the main pump (l/min) is 226L/min The working hydraulic circuit (Mpa) is 325kg/ cm ² The walking hydraulic circuit (Mpa) is 355kg/ cm ² Rotary hydraulic circuit (Mpa)295kg/ cm ² The control hydraulic circuit (Mpa) is 30kg/ cm ² Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)247 Hydraulic oil tank (L)90 Engine oil change volume (L)11 Coolant (L)13.4 Main body size The total length of transportation (mm) is 7599 The total transportation height (mm) is 2175 The total height of the cab (mm) is 2175 The ground clearance of the counterweight (mm) is 855 Track grounding length (mm) : 2880 The total length of the track (mm) is 3610 Track plate width (mm) : 500 Track gauge (mm)1990 Minimum ground clearance (mm) : 400 The rear end turning radius (mm) is 2110 Scope of work Maximum excavation radius (mm) : 8290 The maximum excavation radius of the shutdown face (mm) is 8170 Maximum excavation depth (mm) : 5520 Maximum excavation height (mm) : 8610 Maximum unloading height (mm) : 6170 The maximum vertical excavation depth (mm) is 4940 Maximum effective excavation depth (mm) : 5315 Lifting or deepening with a bulldozer (mm) without a bulldozer
