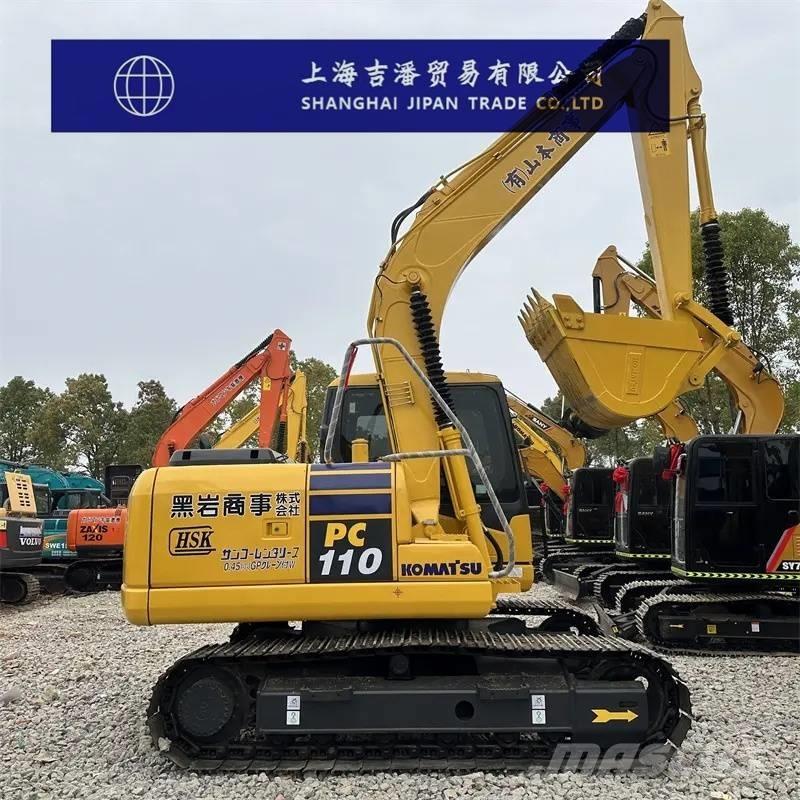

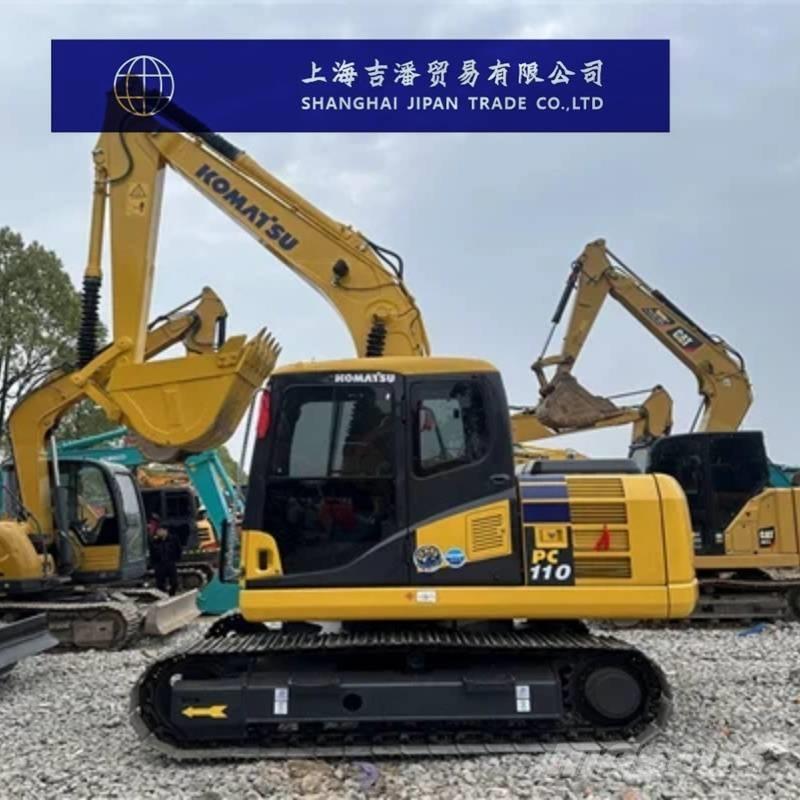

小松 PC 110

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Komatsu PC110-8M0 excavator parameter configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 11 The working weight of the whole machine (kg) is 11300 Bucket capacity (m³) 0.48-0.53 Boom length (mm) 4260 Stick length (mm) 2360 performance Rotational speed (rpm) 11 Travel speed (km/h) 2.8/5.5 Climbing ability (%) 70 Grounding specific pressure (Kpa) 38 Bucket digging force (kN) 92.7 Stick digging force (kN) 59.8 Maximum traction (kN) 122.6 dynamical system Engine model Komatsu SAA4D95LE-5 Rated power (kw/rpm) 69.6/2200 Displacement (L) 3.26 Number of cylinders (units) 4 Bore × stroke (mm) 95×115 Cooling method: Water cooling Working form: four-cylinder, four-stroke turbocharged intercooled direct injection engine Hydraulic system Main pump type variable piston pump*2 The maximum flow rate of the main pump (l/min) is 242 Working hydraulic oil circuit (Mpa) 31.9 Traveling Hydraulic Circuit (Mpa) 34.8 Slewing Hydraulic Circuit (Mpa) 29.2 Boom cylinder - number × bore ×stroke (mm) 2-95×980 Bucket Cylinder - Number of Numbers× Bore × Stroke (mm) 1-115×997 Bucket cylinder - number × bore × stroke (mm) 1-90×885 Oil capacity Fuel tank (L) 247 Hydraulic Tank (L) 145 (90) Engine oil change volume (L) 13 Body size Total length of transport (mm) 7160 Total Transport Width (mm) 2490 Total height of transport (mm) 2855 Cab total height (mm) 2815 Boarding width (mm) 2500 Track grounding length (mm) 2700 Total track length (mm) 3435 Track shoe width (mm) 500 Total Track Width (mm) 2490 Track gauge (mm) 1990 Counterweight ground clearance (mm) 855 Minimum ground clearance (mm) 400 The minimum turning radius of the front working device (mm) is 2430 Rear end turning radius (mm) 2190 Number of support wheels (one side) (pcs) 1 Number of track shoes (single side) (pcs) 41 Number of support wheels (unilateral) (pieces) 6 Scope of work Maximum digging radius (mm) 7730 The maximum excavation radius of the shutdown surface (mm) is 7600 Maximum digging depth (mm) 5060 Maximum digging height (mm) 7910 Maximum unloading height (mm) 5650 Maximum vertical digging depth (mm) 4570
