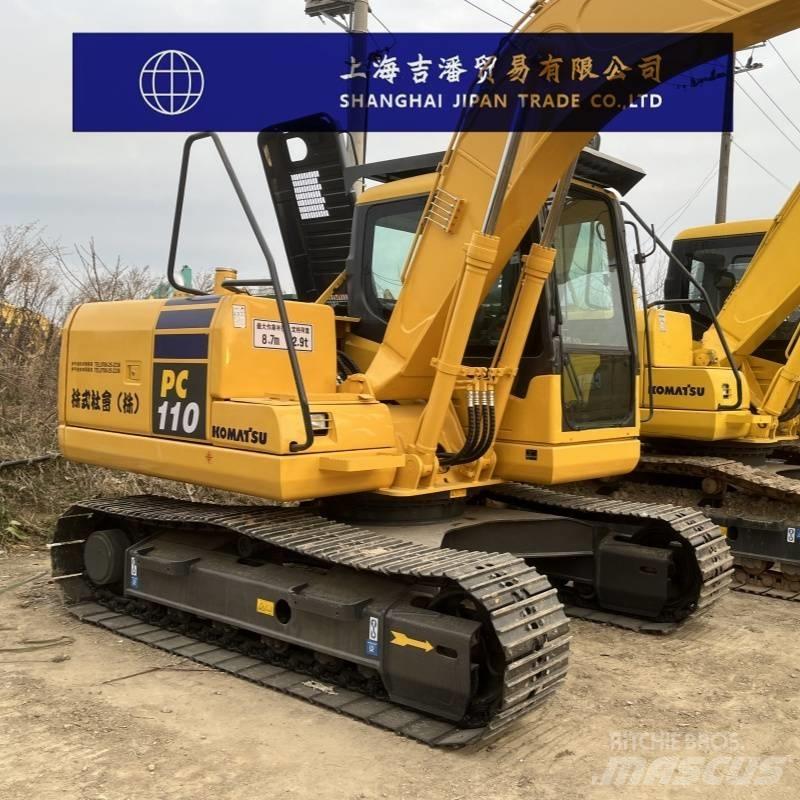

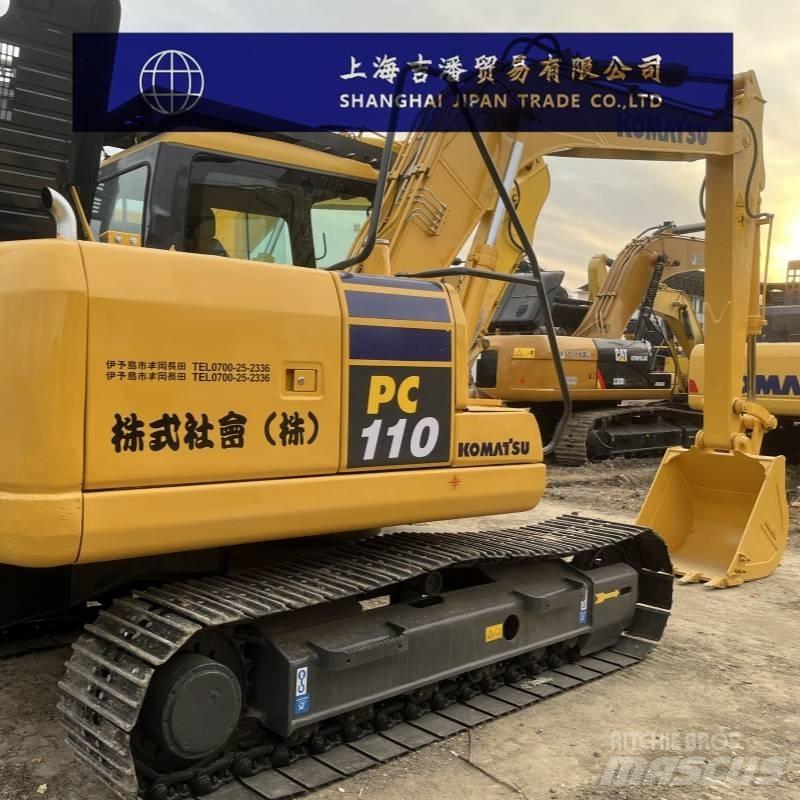

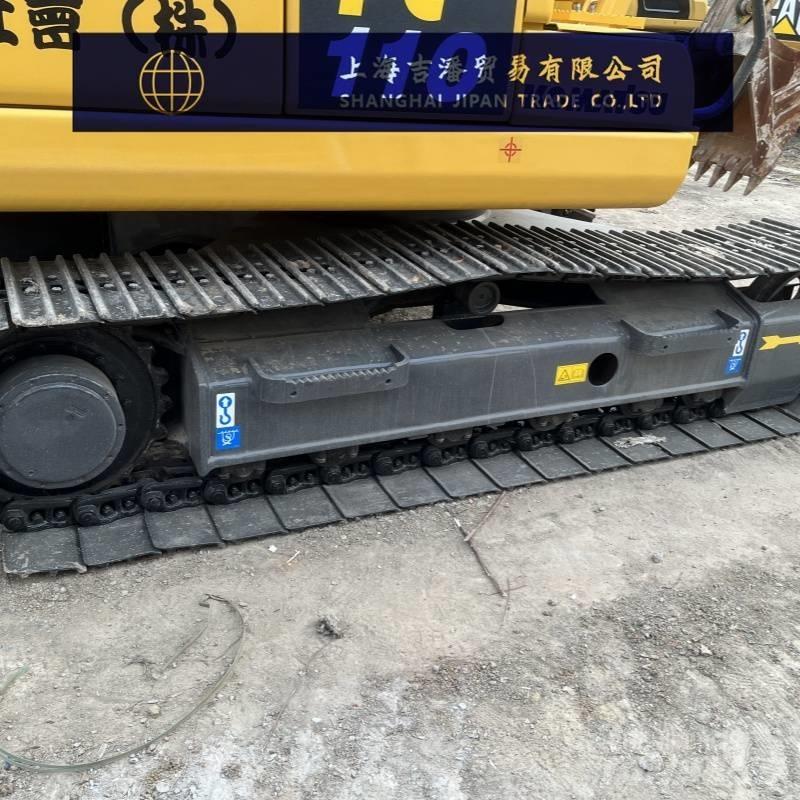

小松 PC 110

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification The working weight of the entire machine (kg) is 10,980 Bucket capacity (m³) : 0.48 Boom length (mm) : 4260 The length of the boom (mm) is 2260 Origin: Jining, Shandong Province Tonnage (tons)11 Bucket backhoe Joint venture/import by manufacturers Power Traditional Power Bucket backhoe Joint venture/import by manufacturers Power Traditional Power Performance Rotational speed (rpm)11 Walking speed (km/h) : 2.7-5.5 Climbing ability (%)70/30° Ground pressure (Kpa) : 0.37 Bucket digging force (kN)86 The digging force of the boom (kN) is 56 Power system Engine model: Komatsu SAA4D95LE-3 Rated power (kw/rpm) : 65/2200 Displacement (L)3.26 Cylinder diameter × stroke (mm) : 95×115 The cooling method is water cooling Working mode: 4-stroke, post-cooling, direct injection; Complies with the EPA/EU/ Japan Grade 2 emission standards of 2001. Hydraulic system The maximum flow rate of the main pump (l/min) is 226L/min Walking hydraulic motor type: Axial piston motor ×2(with parking brake) Rotary hydraulic motor type: Axial piston motor ×1(with a rotary holding valve) Walking hydraulic circuit (Mpa)355 Rotary hydraulic circuit (Mpa)295 Control hydraulic circuit (Mpa)325 Boom cylinders - Number × cylinder diameter × stroke (mm)110×980×65 Bucket rod cylinder - number × cylinder diameter × stroke (mm)133×1005×75 Bucket cylinder - Number × cylinder diameter × stroke (mm)104×885×60 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)247 Hydraulic oil tank (L)90 Engine oil change volume (L)11 Coolant (L)13.4 Main body size The total transportation length (mm) is 7170 The total transportation width (mm) is 2490 The total transportation height (mm) is 2810 The total height of the cab (mm) is 2810 The ground clearance of the counterweight (mm) is 855 Track grounding length (mm) : 2705 The total length of the track (mm) is 3435 Track plate width (mm) : 500 The total width of the tracks (mm) is 2490 Track gauge (mm)1990 Minimum ground clearance (mm) : 400 The rear end turning radius (mm) is 2110 Scope of work Maximum excavation radius (mm) : 7730 The maximum excavation radius (mm) of the shutdown face is 7600 Maximum excavation depth (mm) : 5060 Maximum excavation height (mm) : 7910 Maximum unloading height (mm) : 5650 Maximum vertical excavation depth (mm) : 4570 Maximum effective excavation depth (mm) : 4730 Lifting or deepening with a bulldozer (mm) without a bulldozer
