神钢建机 SK 75

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

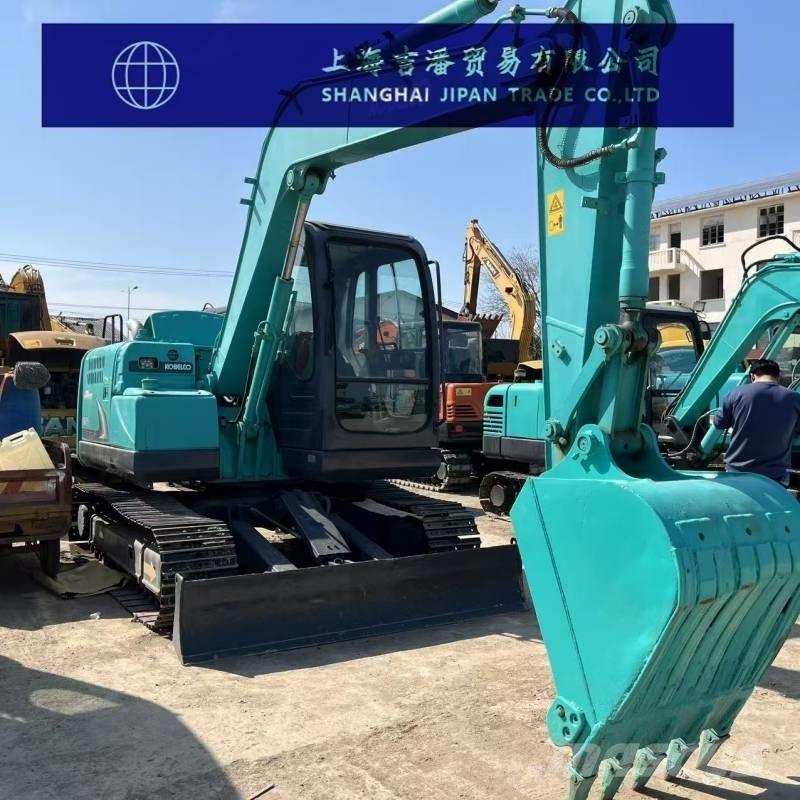

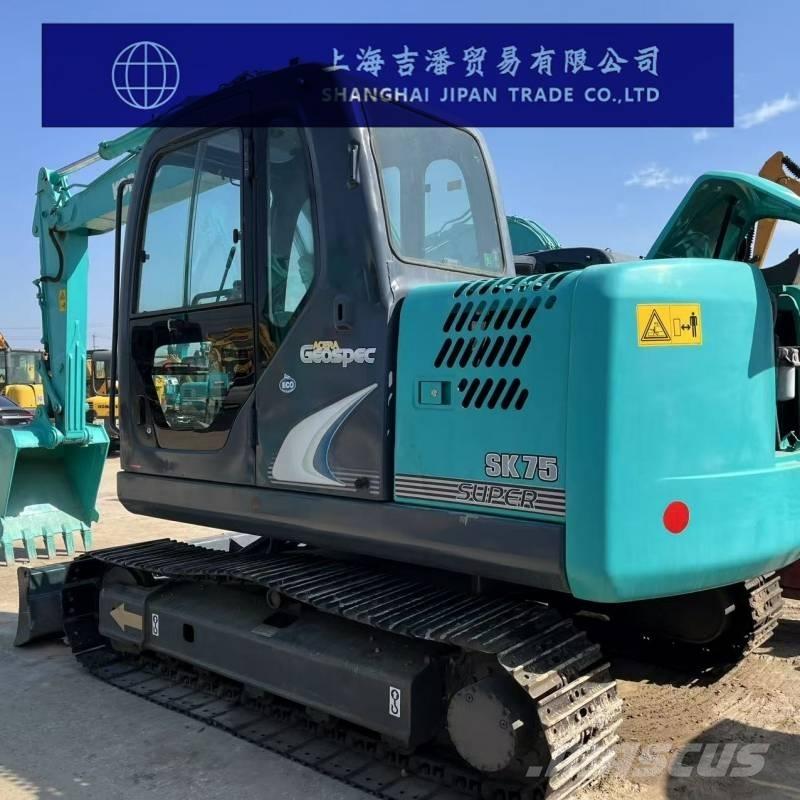

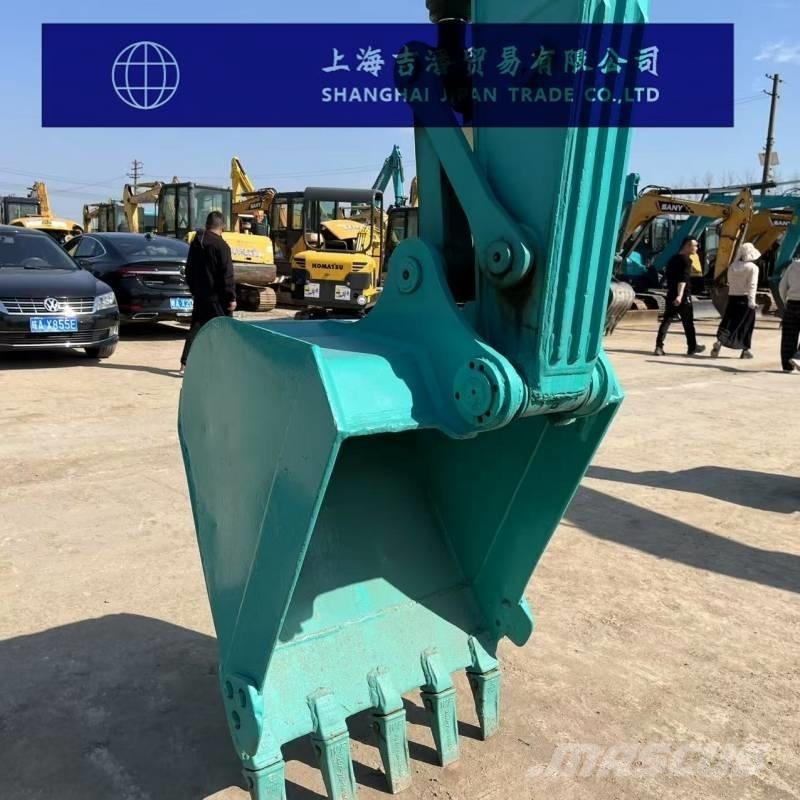

Kobelco SK75-8 excavator parameter configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 7 The working weight of the whole machine (kg) is 6850 Bucket capacity (m³) 0.4 Stick length (mm) 1710 Place of origin: Chengdu performance Rotation speed (rpm) 11.5 Travel speed (km/h) 5.3/2.8 Climbing ability (%) 70 Grounding specific pressure (Kpa) 30.8 Bucket digging force (kN) 52.7 Bucket digging force (kN) 39.4 Maximum traction (kN) 72.2 dynamical system Engine model: ISUZU 4LE2XCUA Rated power (kw/rpm) 42/2200 Maximum torque (N.m) 211/1600 Displacement (L) 2.179 Number of cylinders (units) 4 Bore × stroke (mm) 85*96 Cooling method: Water cooling Working form direct injection, turbo supercharging, built-in intercooling Hydraulic system Main pump type: variable displacement axial piston pump The maximum flow rate of the main pump (l/min) is 1*132 Pilot pump flow rate (L/min) 1*18 Traveling Hydraulic Circuit (Mpa) 29.4 Slewing hydraulic circuit (Mpa) 24.5 Boom cylinder - number× bore× stroke (mm) 1*110*916 Bucket Cylinder - Number of Pieces× Bore × Stroke (mm) 1*95*833 Bucket cylinder - number × cylinder diameter × stroke (mm) 1*80*735 Oil capacity Fuel tank (L) 140 Hydraulic Tank (L) 67 Hydraulic System (L) 107 Engine oil change volume (L) 11 Coolant (L) 8.5 Body size Total length of transport (mm) 6200 Total Transport Width (mm) 2320 Total height of transport (mm) 2650 Total track length (mm) 2830 Track shoe width (mm) 450 Track gauge (mm) 1870 Minimum ground clearance (mm) 375 The minimum turning radius of the front working device (mm) is 1760 Rear end slewing radius (mm) 1750 Number of Track Shoes (Single Side) (Pieces) 39 Scope of work Maximum digging radius (mm) 6460 The maximum excavation radius of the stopping surface (mm) is 6310 Maximum digging depth (mm) 4170 Maximum digging height (mm) 7400 Maximum unloading height (mm) 5330 Maximum vertical digging depth (mm) 3480 Maximum effective digging depth (mm) 3810 The width × height of the bulldozer plate (mm) is 2320*460 Bulldozer shovel lifting or pushing depth (mm) 475/305
