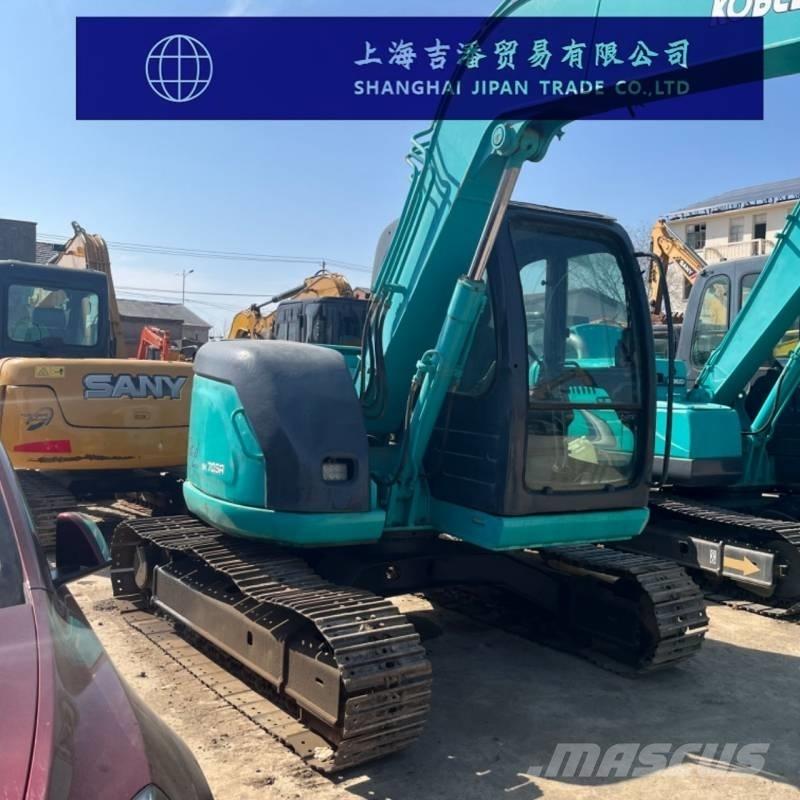

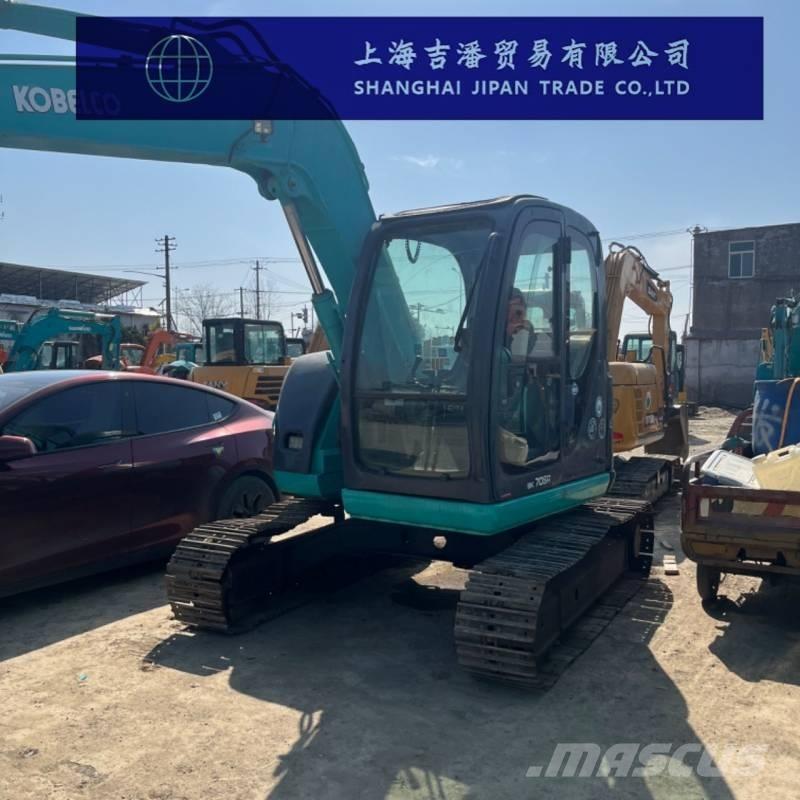

神钢建机 SK 70 SR

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Kobelco SK70 excavator Specification Boom length (mm) : 5830 Tonnage (tons)7 Joint venture/import by manufacturers Power Traditional Power Bucket backhoe Joint venture/import by manufacturers Power Traditional Power Performance Rotational speed (rpm) : 11.5 Walking speed (km/h) : 2.8/5.3 Power system Engine model: ISUZU AU4LE2X Rated power (kw/rpm)41/2200 Displacement (L)2.179 Number of cylinders (4) Cylinder diameter × stroke (mm)85×96 The cooling method is water cooling Hydraulic system The main pump type is a double variable displacement axial piston pump + pilot gear pump The type of rotary hydraulic motor is an axial piston motor Working hydraulic circuit (Mpa)29.4 The walking hydraulic circuit (Mpa) is 27.5 Rotary hydraulic circuit (Mpa)14.5 Control hydraulic circuit (Mpa)3.5 Oil capacity Fuel tank (L)120 Hydraulic oil tank (L)72 Hydraulic system (L)120 Engine oil change volume (L)11 Coolant (L)8.5 Main body size The total transportation height (mm) is 2630 The total height of the cab (mm) is 2630 The minimum turning radius (mm) of the front working device is 1760 The rear end turning radius (mm) is 1290 Scope of work Maximum excavation radius (mm) : 6460 The maximum excavation radius (mm) of the shutdown face is 6300 Maximum excavation depth (mm) : 4160 Maximum excavation height (mm) : 7390 Maximum unloading height (mm) : 5330 The maximum vertical excavation depth (mm) is 3450 The maximum effective excavation depth (mm) is 3800
