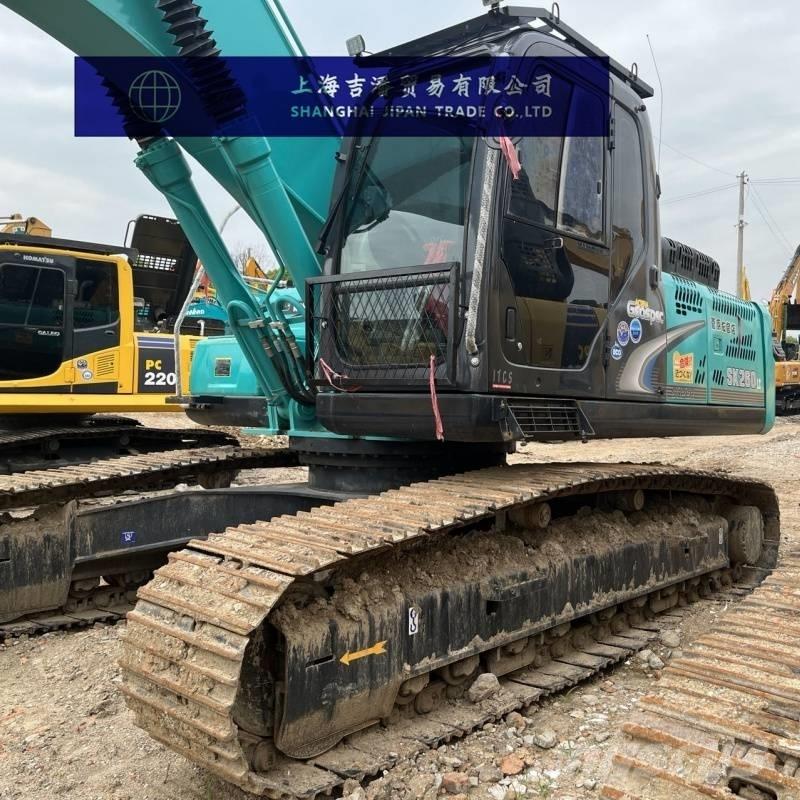

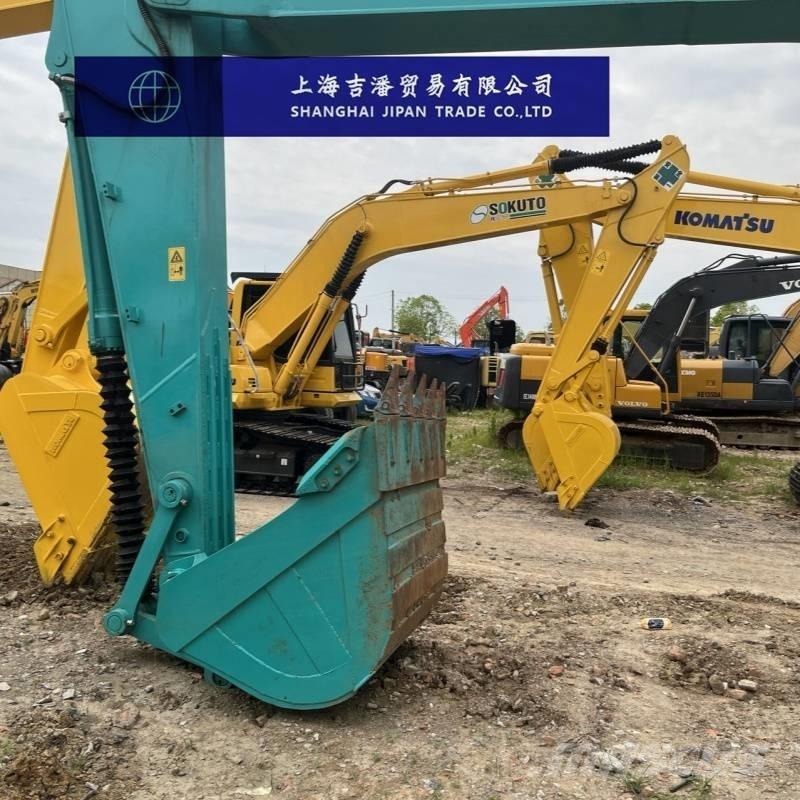

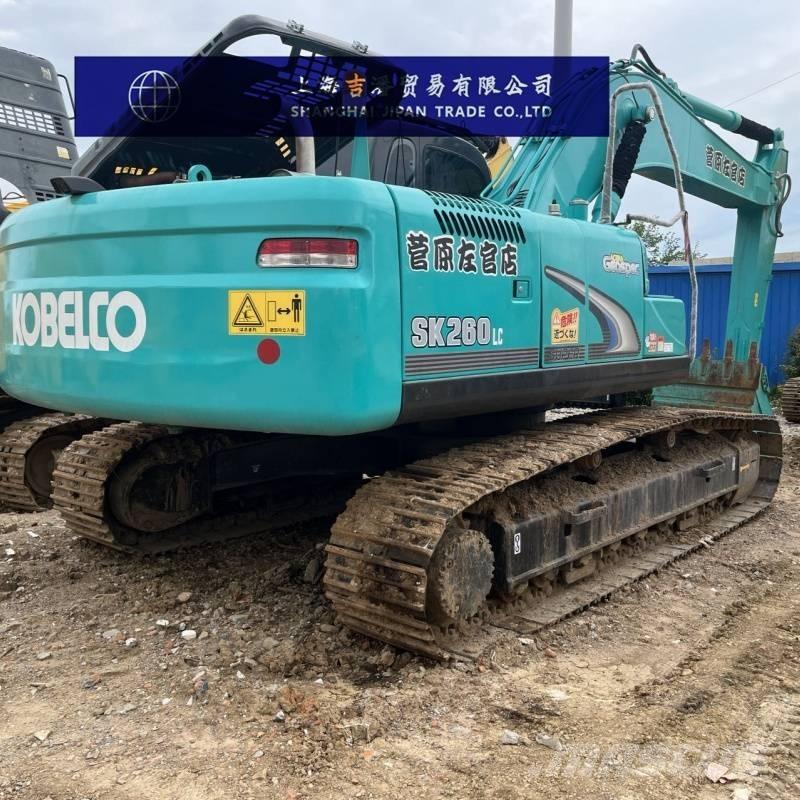

神钢建机 SK 260 LC

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Kobelco SK260LC-8 excavator parameter configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 26 The working weight of the whole machine (kg) is 25200 Bucket capacity (m³) 1.3 Origin: Japan performance Rotational speed (rpm) 11 Travel speed (km/h) 3.6/5.8 Climbing ability (%) 70/35° Bucket digging force (kN) 170 Stick digging force (kN) 119 dynamical system Engine model: Hino Hino J05E Rated power (kw/rpm) 131/2100 Displacement (L) 5.123 Number of cylinders (units) 4 Bore × stroke (mm) 112×130 Cooling method: Water cooling Working form direct injection, four-stroke, turbocharged, built-in intercooling Hydraulic system Main pump type: Duplex variable displacement axial piston pump ×2 Pilot gear pump ×1 The maximum flow rate of the main pump (l/min) is 2×246 Working hydraulic oil circuit (Mpa) 34.3 Traveling Hydraulic Circuit (Mpa) 34.3 Slewing hydraulic circuit (Mpa) 28.5 Control Hydraulic Circuit (Mpa)5 Boom cylinder - number × bore × stroke (mm) 135×1235 Bucket Cylinder - Number of Pieces× Bore × Stroke (mm) 145×1635 Bucket cylinder - number × bore × stroke (mm) 125×1200 Whether the hydraulic crushing pipeline is standard is Oil capacity Fuel tank (L) 460 Hydraulic Tank (L) 170 Engine oil change volume (L) 21 Coolant (L) 20 Body size Total length of transport (mm) 10120 Total width of transport (mm) 3190 Total height of transport (mm) 3200 Track grounding length (mm) 3850 Track shoe width (mm) 600 Total track width (mm) 3190 Track gauge (mm) 2390 Minimum ground clearance (mm) 460 Counterweight ground clearance (mm) 1090 The minimum turning radius of the front working device (mm) is 3910 Rear end slewing radius (mm) 3020 Scope of work Maximum digging radius (mm) 10310 The maximum excavation radius of the shutdown surface (mm) is 10140 Maximum digging depth (mm) 7000 Maximum digging height (mm) 9800 Maximum unloading height (mm) 6880 Maximum vertical digging depth (mm) 6150 The maximum effective digging depth (mm) is 6820 The width × height of the bulldozer plate (mm) are not available without a bulldozer There is no bulldozer shovel for lifting or pushing depth (mm).
