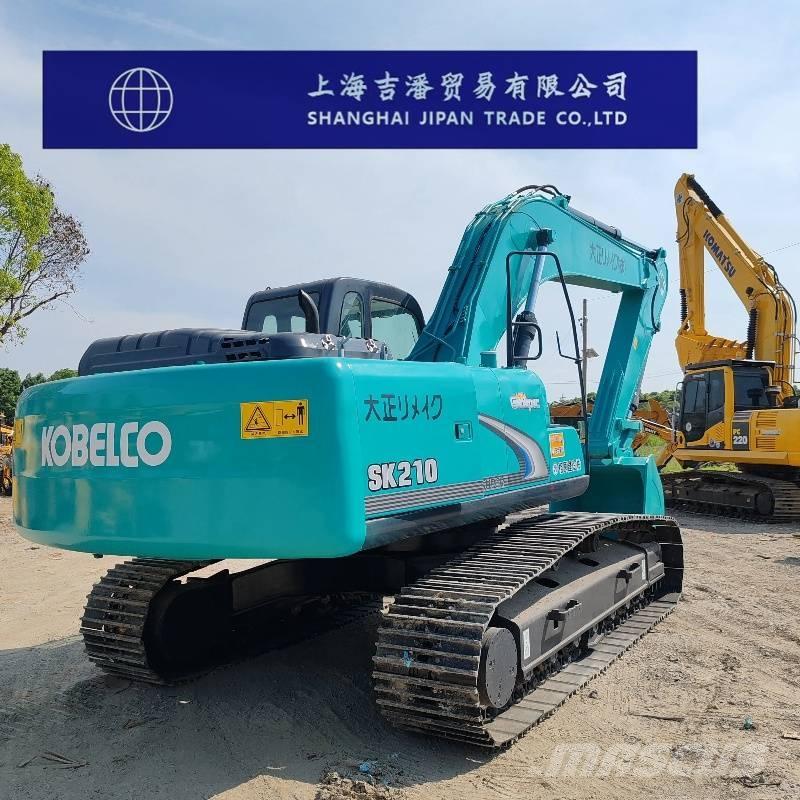

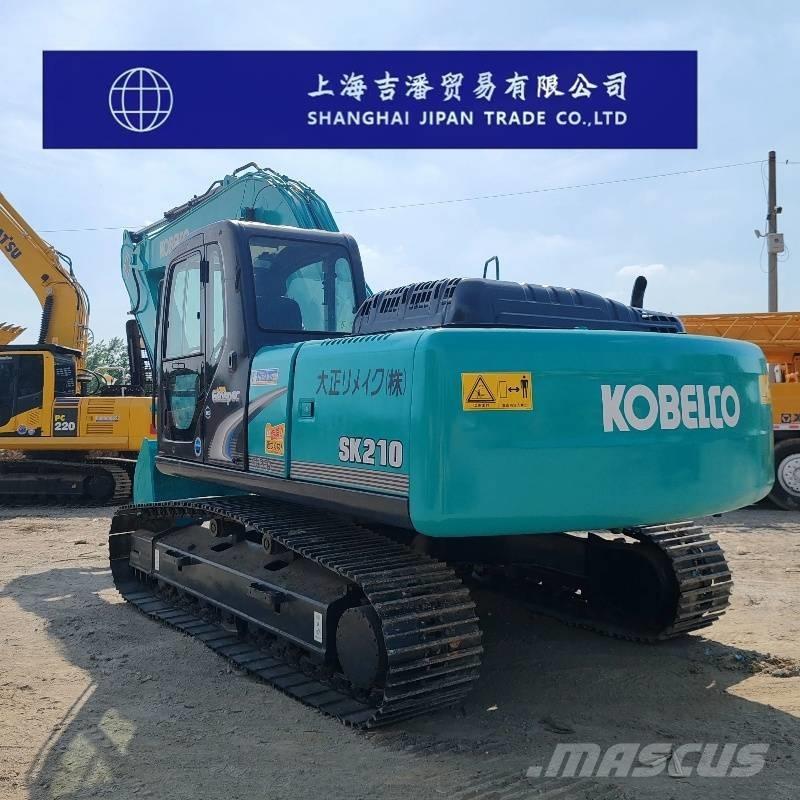

神钢建机 SK 210

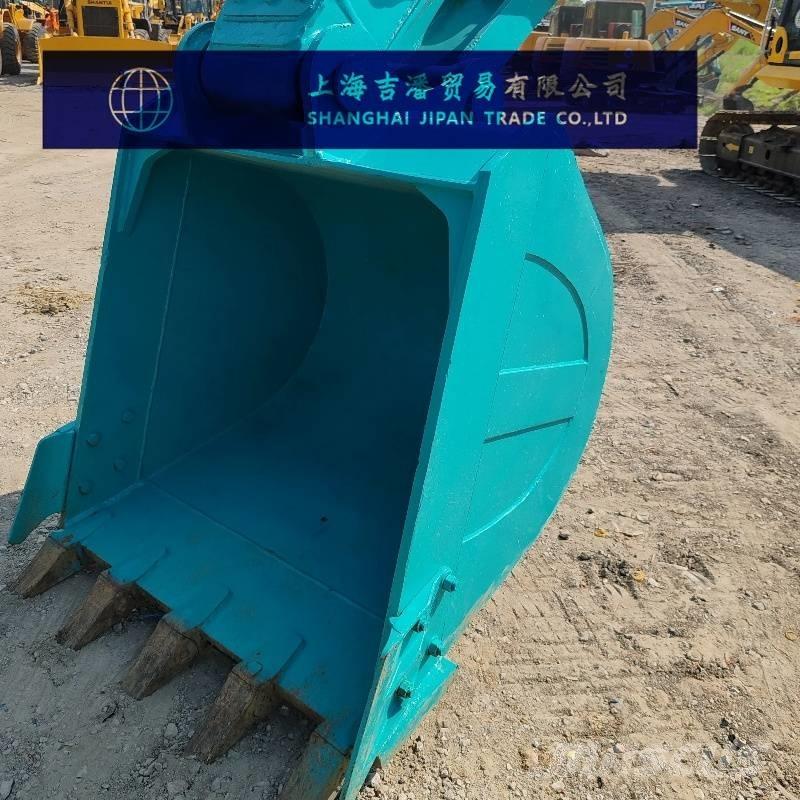

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Parameter configuration of Kobelco SK210LC-10 excavator Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)21 The overall working weight of the machine (kg) is 21,200 Bucket capacity (m³) : 1.0 Origin: Hangzhou Performance Rotational speed (rpm) : 13.3 Walking speed (km/h)6.0/3.6 Climbing ability (%) : 70 Ground specific pressure (Kpa)44 Bucket digging force (kN)143 Bucket shaft digging force (kN)157 Power system Engine model: Hino J05ETA-EDDJ Rated power (kw/rpm) : 118/2000 Maximum torque (N.m) : 592 The working forms are direct injection, water cooling, four-stroke, turbocharging, and built-in intercooling Hydraulic system The main pump type is a variable displacement axial piston pump combined with a pilot gear pump Type 2 of walking hydraulic motor: Variable capacity axial piston motor Rotary hydraulic motor type: Axial piston pump motor The main overflow set pressure (Mpa) is 34.3 Oil capacity Fuel tank (L)320 Hydraulic oil tank (L)244 Main body size The total length of transportation (mm) is 9600 The total transportation width (mm) is 2990 Total transportation height (mm) : 3010 Track grounding length (mm) : 3660 The total length of the track (mm) is 4450 Track plate width (mm) : 600 Minimum ground clearance (mm) : 450 The ground clearance of the counterweight (mm) is 1060 The minimum turning radius (mm) of the front working device is 3550 Scope of work The maximum excavation radius (mm) is 9,900 The maximum excavation radius of the shutdown face (mm) is 9730 Maximum excavation depth (mm) : 6700 Maximum excavation height (mm) : 9720 Maximum unloading height (mm) : 6910 The maximum vertical excavation depth (mm) is 6160
