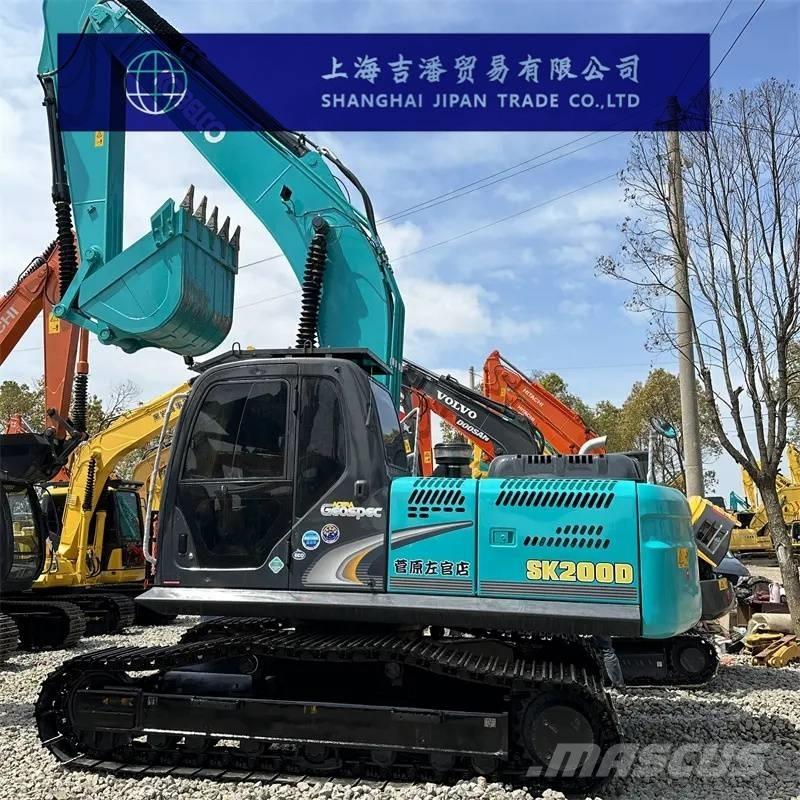

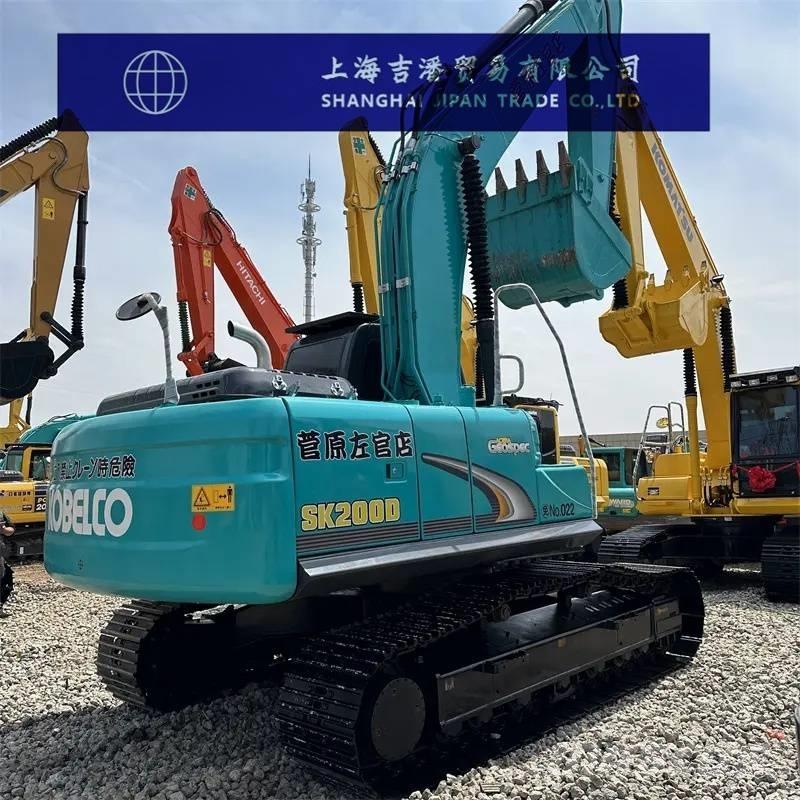

神钢建机 SK 200

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Overall Machine Parameters Operating weight: 20,600kg Total transportation length: 9,450mm Total transportation width: 2,800mm Total transportation height: 2,980mm Track ground contact length: 3,370mm Total track length: 4,170mm Track shoe width: 600mm Total track width: 2,800mm Track gauge: 2,200mm Minimum ground clearance: 450mm Rear swing radius: 2,750mm Performance Parameters Swing speed: 12.5rpm Travel speed: 3.6/6.0km/h Gradeability: 70%/35° Ground pressure: 46Kpa Bucket digging force: 143kN Arm digging force: 102kN Engine Parameters Engine model: Hino J05E Rated power: 114kW/2000rpm Displacement: 5.123L Number of cylinders: 4 Cooling method: Water-cooled Hydraulic System Parameters Main pump type: 2× Dual variable displacement axial piston pumps + 1× Pilot gear pump Maximum main pump flow: 2×220 + 20L/min Working hydraulic circuit pressure: 34.3Mpa Travel hydraulic circuit pressure: 34.3Mpa Swing hydraulic circuit pressure: 29Mpa Control hydraulic circuit pressure: 5Mpa Boom cylinder: 1×120×1355mm Arm cylinder: 1×135×1558mm Bucket cylinder: 1×120×1080mm Hydraulic breaker pipeline: Standard configuration Fluid Capacity Parameters Fuel tank: 370L Hydraulic oil tank: 146L Engine oil replacement capacity: 22L Coolant: 22L Working Range Parameters Maximum digging radius: 9,900mm Maximum digging radius at ground level: 9,730mm Maximum digging depth: 6,700mm Maximum digging height: 9,720mm Maximum dumping height: 6,910mm Maximum vertical digging depth: 6,100mm
