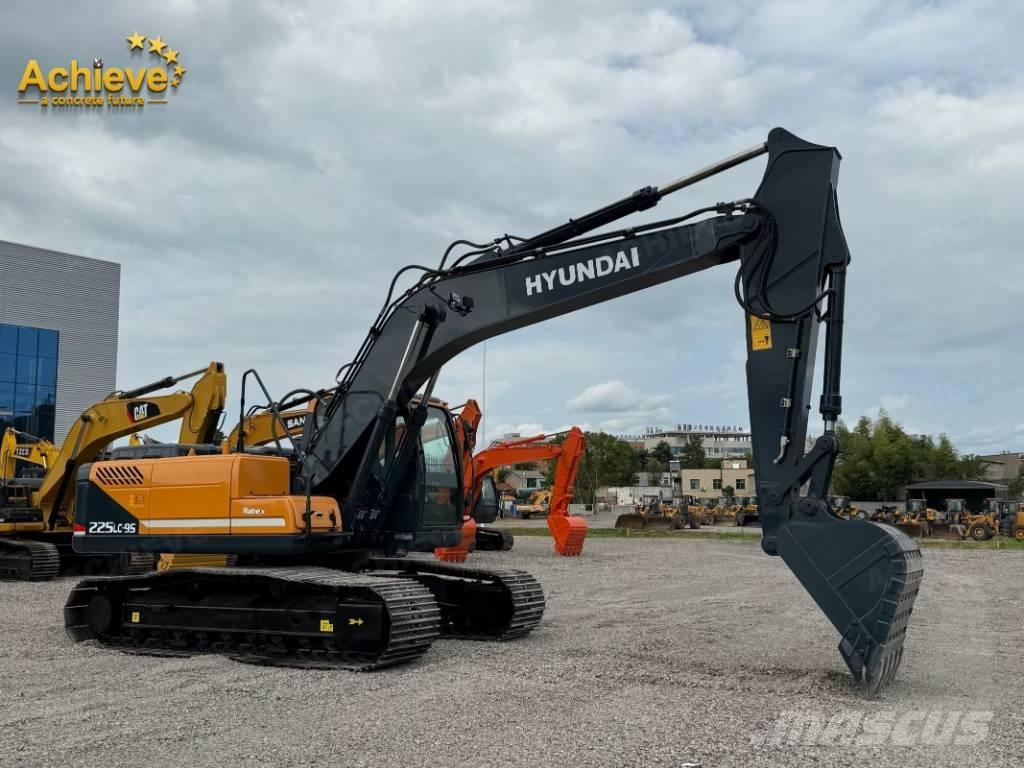

现代 225LC-9S

Hyundai R225LC-9T excavator parameter configuration Specification Machine operating weight (kg)22,570 Bucket capacity (m³)1.05 Boom length (mm)5680 Arm length (mm)2920 country of originJiangsu Tonnage (tons)22 bucketbackhoe ManufacturerJoint venture/import powerTraditional power bucketbackhoe ManufacturerJoint venture/import powerTraditional power performance Rotation speed (rpm)12 Walking speed (km/h)5.3/3.4 (high/low) Gradeability (%)35 Ground pressure (Kpa)47.06 Bucket digging force (kN)151.6 Arm digging force (kN)106.2 Maximum traction force (kN)191.1 Powertrain Engine modelCummins B5.9-C Rated power (kw/rpm)112/1950 Maximum torque (Nm)613.5 Displacement (L)5.9 Number of cylinders6 Cylinder diameter × stroke (mm)107×124 Cooling methodWater cooling Working formSix-cylinder four-stroke turbocharged direct injection engine hydraulic system Main pump typeVariable displacement swash plate axial piston pump Main pump maximum flow (l/min)2×222 Travel hydraulic motor typeVariable displacement swash plate axial piston motor Rotary hydraulic motor typeFixed displacement swash plate axial piston motor Working hydraulic oil circuit (Mpa)35 Travel hydraulic circuit (Mpa)35 Rotary hydraulic circuit (Mpa)26.5 Pilot oil circuit (MPa)4 Boom cylinder - number × cylinder diameter × stroke (mm)120×85×1290 Arm cylinder - number × cylinder diameter × stroke (mm)140×100×1510 Bucket cylinder - number × cylinder diameter × stroke (mm)120×85×10553 Oil capacity Fuel tank (L)400 Hydraulic oil tank (L)160 Hydraulic system (L)275 Engine oil change amount (L)25 Coolant (L)35 Main body size Total transport length (mm)9,550 Total transport width (mm)2,990 Total transport height (mm)3080 Cab height (mm)2920 Boarding width (mm)2740 Counterweight ground clearance (mm)1060 Track ground contact length (mm)3650 Total track length (mm)4000 Track shoe width (mm)600 Total track width (mm)2990 Track gauge (mm)2390 Minimum ground clearance (mm)480 Minimum turning radius of front working device (mm)3740 Rear end turning radius (mm)2840 Scope of work Maximum digging radius (mm)9980 Maximum digging radius of the parking surface (mm)9820 Maximum digging depth (mm)6,730 Maximum digging height (mm)9,600 Maximum unloading height (mm)6780 Maximum vertical digging depth (mm)6280 Maximum effective digging depth (mm)6560
