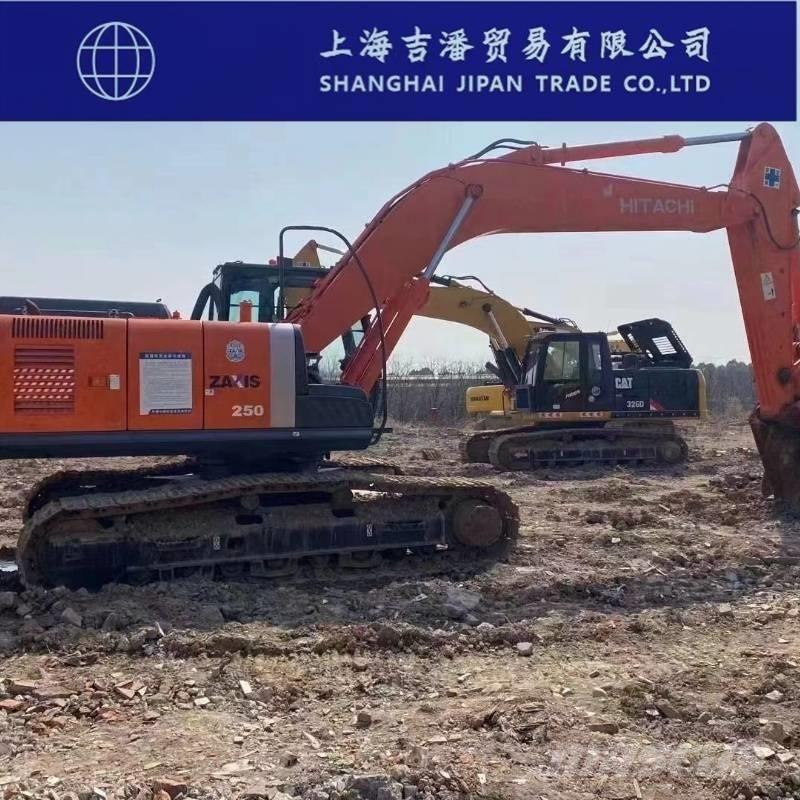

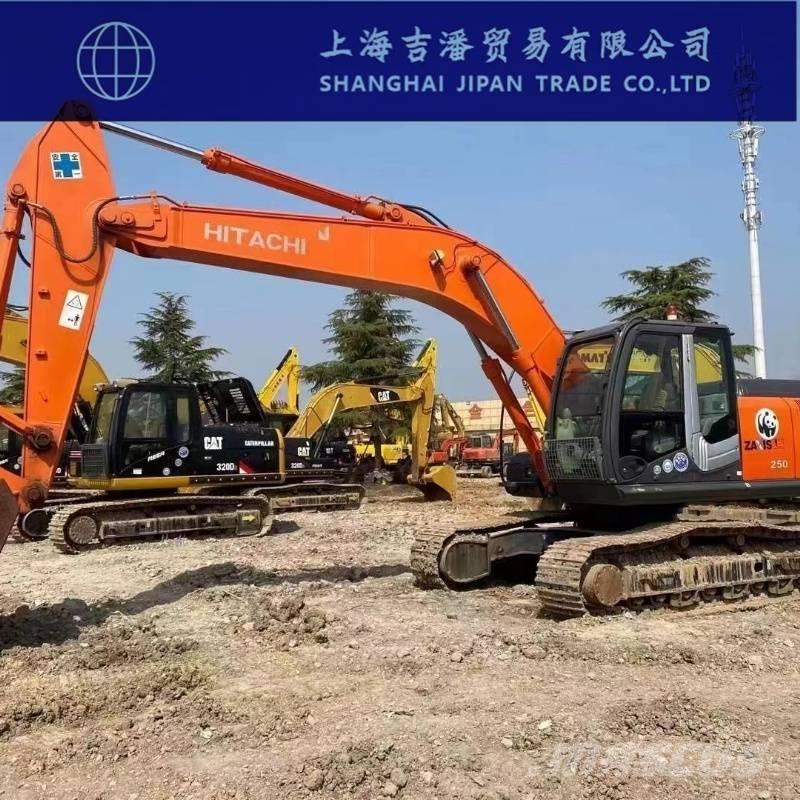

日立建机 ZX 250

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Hitachi ZX250K-5A excavator Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)25 The working weight of the entire machine (kg) is 25,700-25,900 Bucket capacity (m³)1.2-1.4 Performance Rotational speed (rpm) : 12.4 Walking speed (km/h)5.5/3.4 Climbing ability (%) : 70 Ground specific pressure (Kpa)56 Power system Engine model: Isuzu GH-4HK1XKSA-01 Rated power (kw/rpm)127 Displacement (L)5.193 Working forms: 4-stroke, water-cooled, electronically controlled injection type, turbocharged, intercooled Hydraulic system Main pump type variables: Plunger type ×2, gear type ×1 Working hydraulic circuit (Mpa)34.3 Oil capacity Fuel tank (L)510 Hydraulic oil tank (L)243 Engine oil change volume (L)23 Main body size The total length of transportation (mm) is 10360 The total transportation width (mm) is 2990 Track plate width (mm) : 600 Track gauge (mm) : 2390 Minimum ground clearance (mm) : 460 The ground clearance of the counterweight (mm) is 1080 The minimum turning radius (mm) of the front working device is 3440 The rear end turning radius (mm) is 3140 Scope of work Maximum excavation radius (mm) : 10290 The maximum excavation radius of the shutdown face (mm) is 10110 Maximum excavation depth (mm) : 6960 Maximum excavation height (mm) : 10160 Maximum unloading height (mm) : 7200 Maximum vertical excavation depth (mm) : 6030
