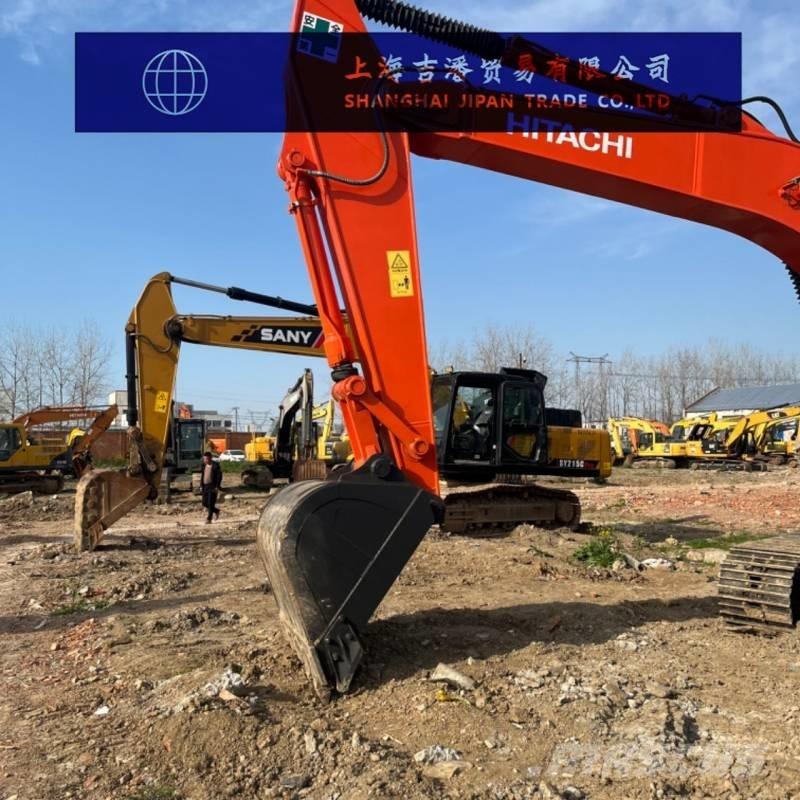

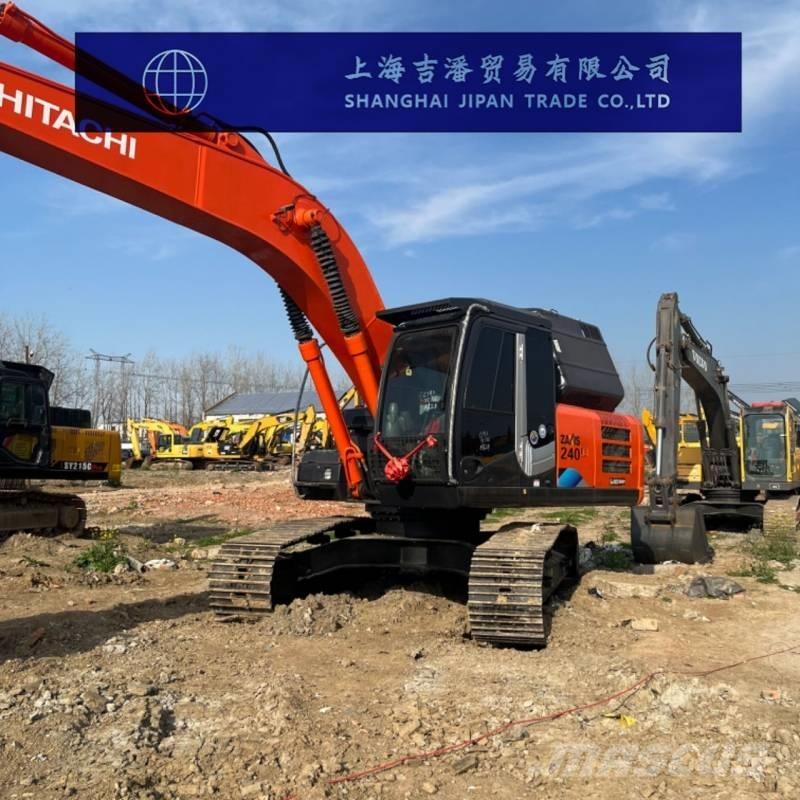

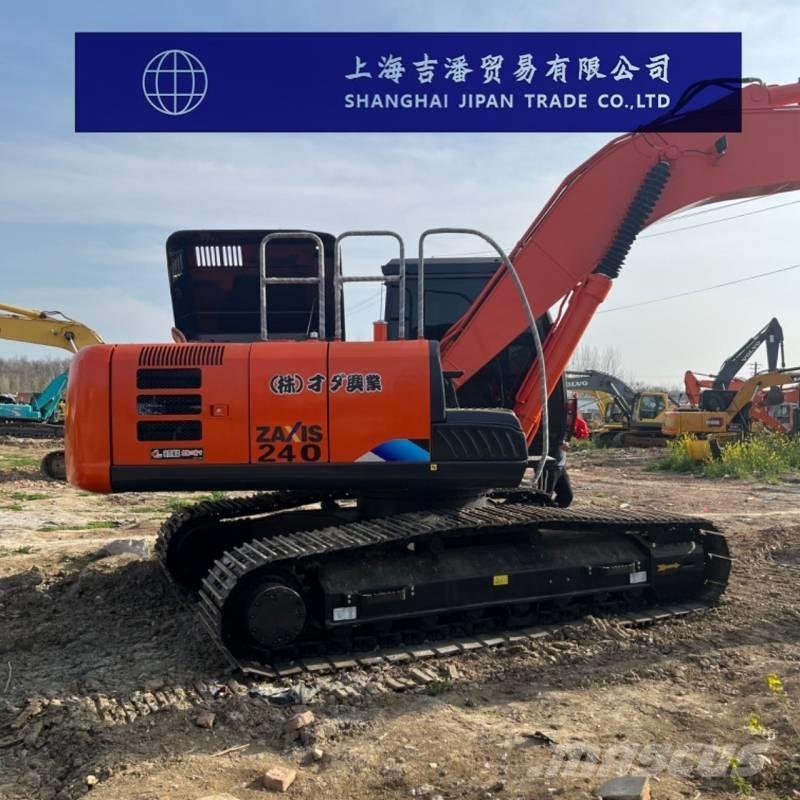

日立建机 ZX 240

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Hitachi ZX240-5A Excavator Parameter Configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 24 The working weight of the whole machine (kg) is 24300-24400 Bucket capacity (m³) 1.2-1.4 Boom length (mm) 6000 Stick length (mm) 2960 performance Rotation speed (rpm) 12.4 Rotational torque (Nm) 77.5 Travel speed (km/h) 5.5/3.4 Climbing ability (%) 70 Grounding specific pressure (Kpa) 53 Bucket digging force (kN) 188 Stick digging force (kN) 131 Maximum traction (kN) 222 dynamical system Engine model: Isuzu GH-4HK1XKSA-01 Rated power (kw/rpm) 127/2000 Maximum torque (N.m) 640/1500 Displacement (L) 5.193 Number of cylinders (units) 4 Bore × stroke (mm) 115×125 Cooling method: Water cooling Working form: 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled Hydraulic system Main pump type: 2 variable axial piston pumps, 1 gear pump Slewing hydraulic motor type 1 swash disc type plunger motor Traveling hydraulic motor type 2 variable swash disc type plunger motor Main pump maximum flow rate (l/min) 2×224 32 Pilot oil circuit (MPa) 3.9 Working hydraulic oil circuit (Mpa) 34.3 Traveling Hydraulic Circuit (Mpa) 34.8 Slewing hydraulic circuit (Mpa) 32.4 Boom cylinder - number × bore × stroke (mm) 2×125×90 Bucket cylinder - number × bore × stroke (mm) 1×140×100 Bucket cylinder - number × bore × stroke (mm) 1×130×90 Oil capacity Fuel tank (L) 510 Hydraulic Tank (L) 156 Hydraulic System (L) 280 Engine oil change volume (L) 23 Coolant (L) 31 Body size Total length of transport (mm) 10360 Total width of transport (mm) 2990 Total height of transport (mm) 3080 Cab total height (mm) 3010 Track grounding length (mm) 3460 Total track length (mm) 4260 Track shoe width (mm) 600 Total track width (mm) 2990 Track gauge (mm) 2390 Minimum ground clearance (mm) 460 Counterweight ground clearance (mm) 1080 The minimum turning radius of the front working device (mm) is 3440 The rear end turning radius (mm) 3140 Number of support wheels (unilateral) (pieces) 8 Number of support wheels (one side) (pcs) 2 Number of track shoes (single side) (pcs) 47 Scope of work Maximum digging radius (mm) 10290 The maximum excavation radius of the shutdown surface (mm) is 10110 Maximum digging depth (mm) 6960 Maximum digging height (mm) 10160 Maximum unloading height (mm) 7200 Maximum vertical digging depth (mm) 6030
