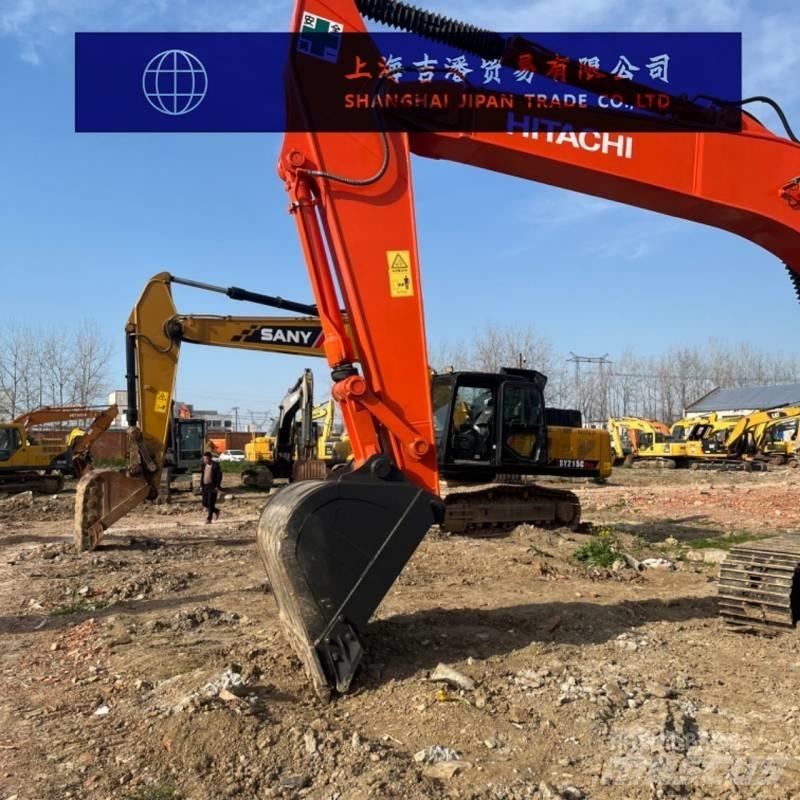

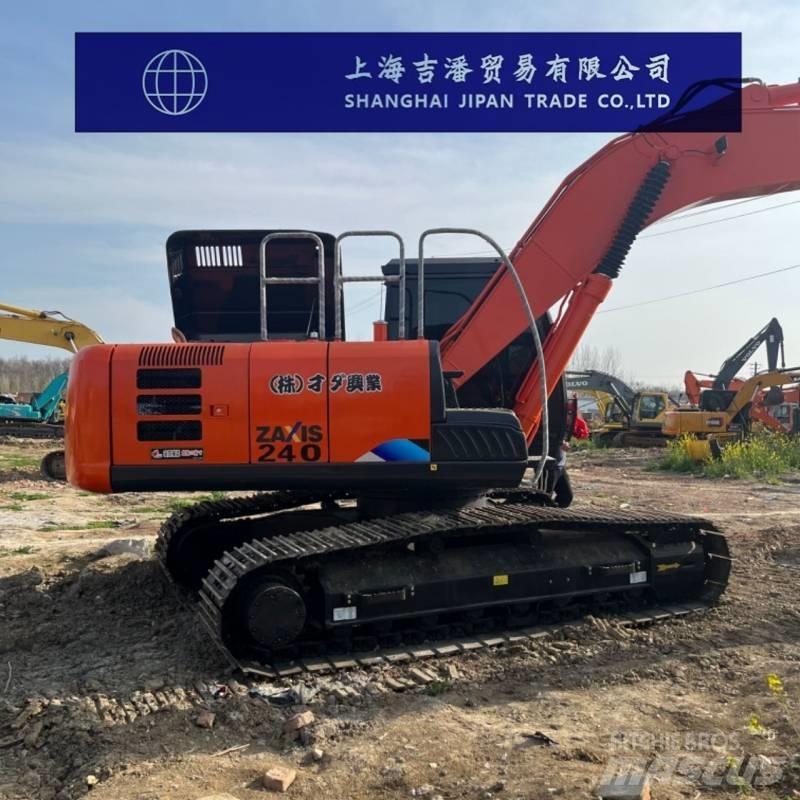

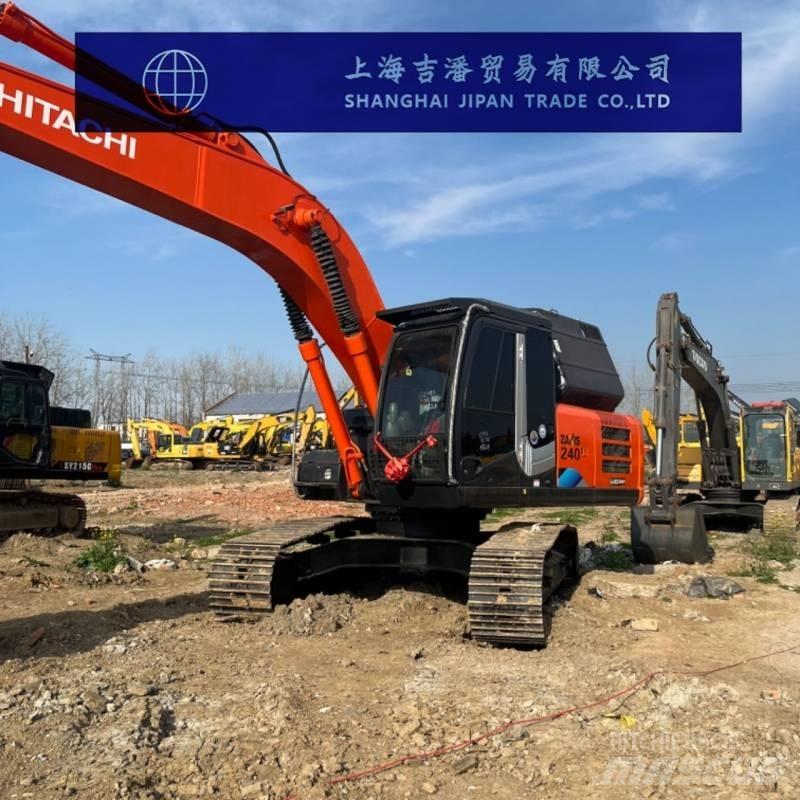

日立建机 ZX 240

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)24 The working weight of the entire machine (kg) is 24,300-24,400 Bucket capacity (m³)1.2-1.4 Boom length (mm) : 6000 The length of the boom (mm) is 2960 Performance Rotational speed (rpm) : 12.4 The rotary torque (Nm) is 77.5 Walking speed (km/h)5.5/3.4 Climbing ability (%) : 70 Ground specific pressure (Kpa)53 Bucket digging force (kN)188 Bucket shaft digging force (kN)131 Maximum traction force (kN)222 Power system Engine model: Isuzu GH-4HK1XKSA-01 Rated power (kw/rpm)127/2000 Maximum torque (N.m)640/1500 Displacement (L)5.193 Number of cylinders (4) Cylinder diameter × stroke (mm) : 115×125 The cooling method is water cooling Working forms: 4-stroke, water-cooled, electronically controlled direct injection type, turbocharged, intercooled Hydraulic system The main pump types include 2 variable axial piston pumps and 1 gear pump The rotary hydraulic motor type is one swash plate type plunger motor The walking hydraulic motor type consists of two variable swash plate type piston motors The maximum flow rate of the main pump (l/min) is 2×224+32 Pilot oil circuit (MPa)3.9 Working hydraulic circuit (Mpa)34.3 The walking hydraulic circuit (Mpa) is 34.8 Rotary hydraulic circuit (Mpa)32.4 Boom cylinders - number × cylinder diameter × stroke (mm)2×125×90 Bucket rod cylinder - number × cylinder diameter × stroke (mm)1×140×100 Bucket cylinder - Number × cylinder diameter × stroke (mm)1×130×90 Oil capacity Fuel tank (L)510 Hydraulic oil tank (L)156 Hydraulic System (L)280 Engine oil change volume (L)23 Coolant (L)31 Main body size The total length of transportation (mm) is 10360 The total transportation width (mm) is 2990 The total transportation height (mm) is 3080 The total height of the cab (mm) is 3010 The grounding length of the track (mm) is 3460 The total length of the track (mm) is 4260 Track plate width (mm) : 600 The total width of the tracks (mm) is 2990 Track gauge (mm) : 2390 Minimum ground clearance (mm) : 460 The ground clearance of the counterweight (mm) is 1080 The minimum turning radius (mm) of the front working device is 3440 The rear end turning radius (mm) is 3140 Number of idler wheels (single side) (units)8 Number of idler wheels (single side) (units)2 Number of track plates (single side) (units)47 Scope of work Maximum excavation radius (mm) : 10290 The maximum excavation radius of the shutdown face (mm) is 10110 Maximum excavation depth (mm) : 6960 Maximum excavation height (mm) : 10160 Maximum unloading height (mm) : 7200 Maximum vertical excavation depth (mm) : 6030
