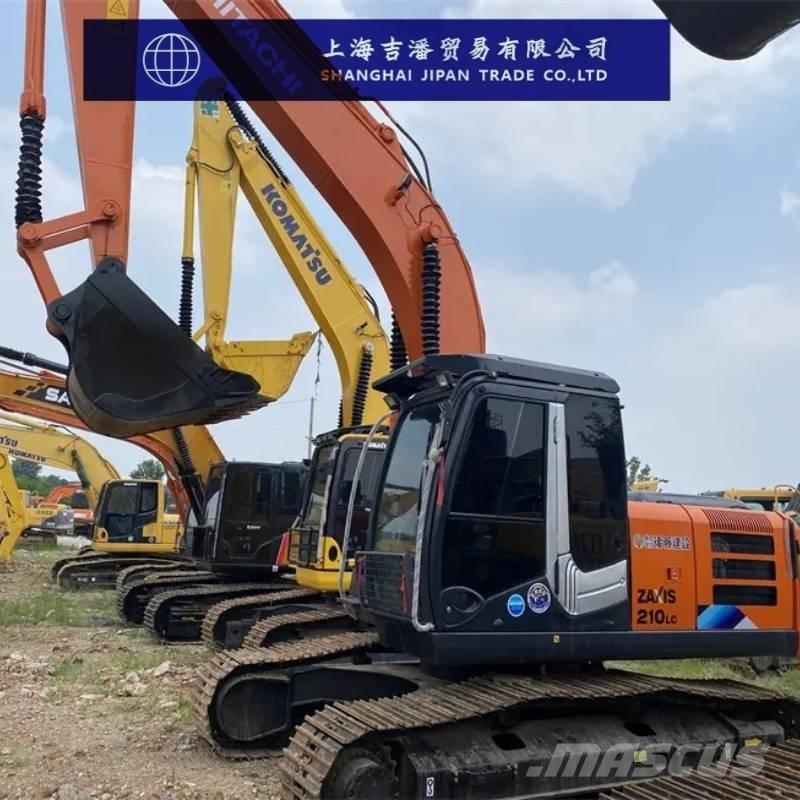

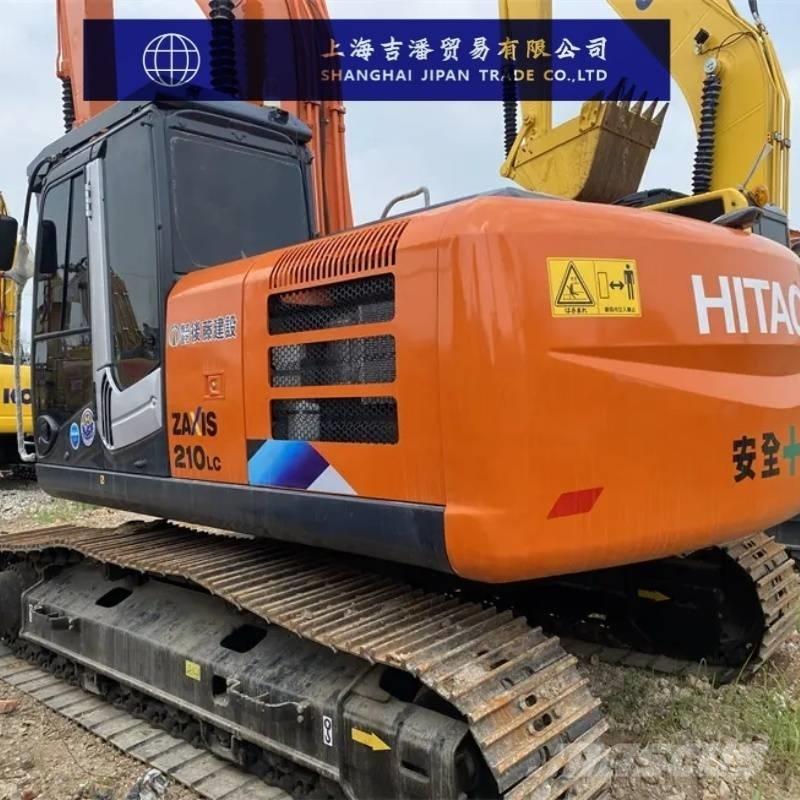

日立建机 ZX 210

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Specifications Power Type: Conventional Power Manufacturer: Joint Venture/Imported Bucket Type: Backhoe Tonnage (Ton): 21 Operating Weight (kg): 21,000~21,100 Bucket Capacity (m³): 0.91~1.0 Performance Swing Speed (rpm): 13.5 Travel Speed (km/h): 5.5 / 3.5 Gradeability (%): 70 Ground Pressure (Kpa): 47 Bucket Digging Force (kN): 158 Arm Digging Force (kN): 114 Power System Engine Model: Isuzu GI-4HK1XKSA-02 Rated Power (kw/rpm): 113 / 2000 Displacement (L): 5.193 Cooling System: Water-cooled Operation Type: 4-stroke, water-cooled, electronically controlled injection, turbocharged, intercooled Hydraulic System Main Pump Type: 2 variable axial piston pumps + 1 gear pump Swing Hydraulic Motor Type: 1 axial piston motor Travel Hydraulic Motor Type: 2 variable axial piston motors Main Relief Valve Setting Pressure (Mpa): 34.3 Fluid Capacities Fuel Tank (L): 400 Hydraulic Oil Tank (L): 200 Engine Oil Change Capacity (L): 23 Dimensions Overall Transport Length (mm): 9,660 Overall Transport Width (mm): 2,880 Overall Transport Height (mm): 3,010 Total Track Length (mm): 4,170 Track Shoe Width (mm): 600 Track Gauge (mm): 2,200 Counterweight Ground Clearance (mm): 1,030 Minimum Ground Clearance (mm): 450 Minimum Swing Radius of Front Attachment (mm): 3,180 Rear Swing Radius (mm): 2,890 Working Range Maximum Digging Radius (mm): 9,920 Maximum Digging Radius at Ground Level (mm): 9,750 Maximum Digging Depth (mm): 6,670 Maximum Digging Height (mm): 10,040 Maximum Dumping Height (mm): 7,180 Maximum Vertical Digging Depth (mm): 5,990
