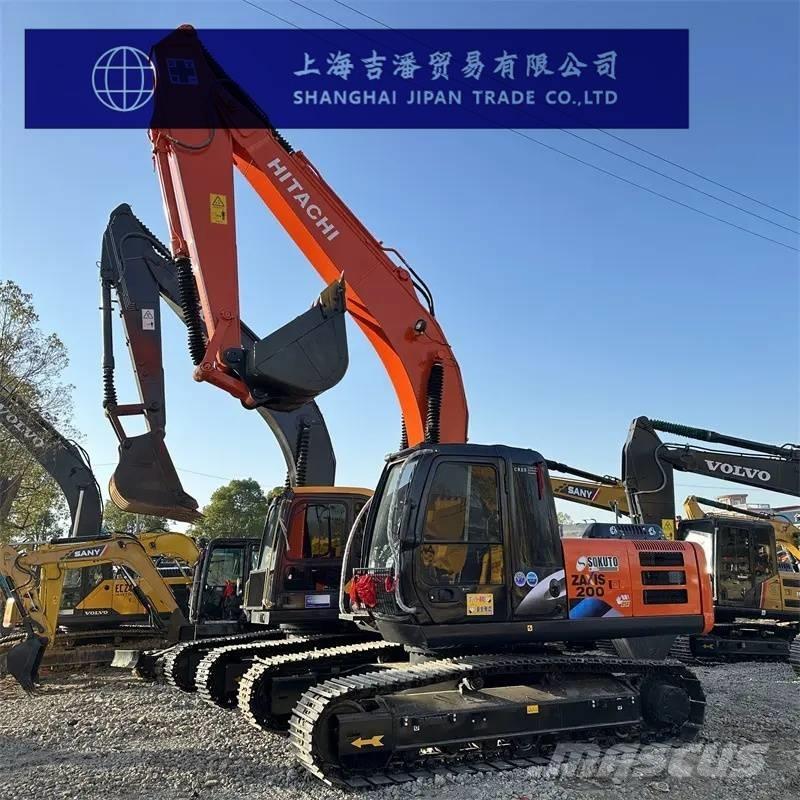

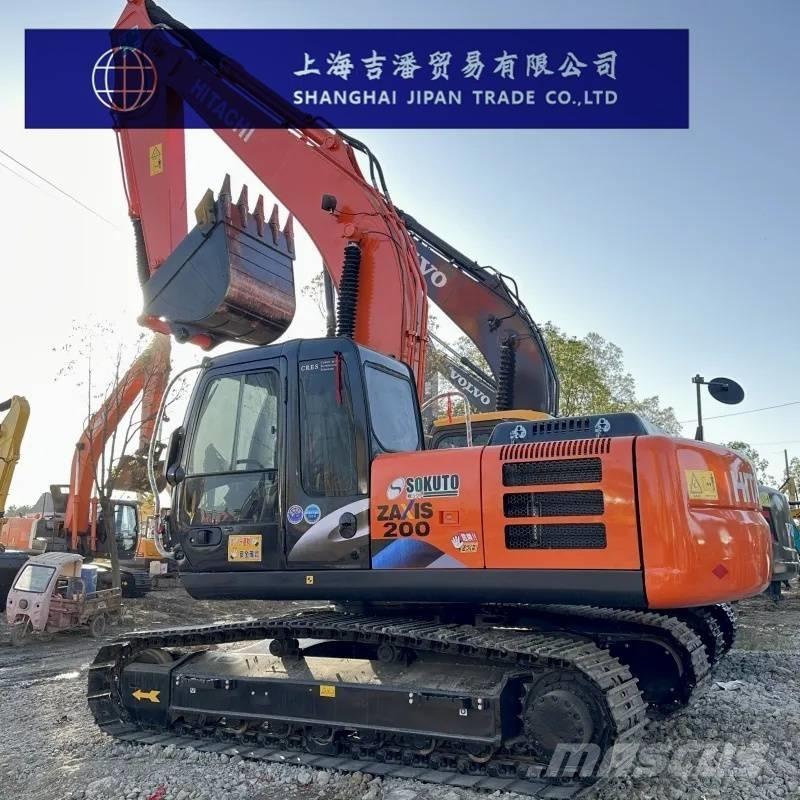

日立建机 ZX 200

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Specifications Power Type: Conventional Power Manufacturer: Joint Venture/Imported Bucket Type: Backhoe Ton Class (ton): 20 Operating Weight (kg): 20200-20300 Bucket Capacity (m³): 0.91~1.0 Boom Length (mm): 5680 Stick Length (mm): 2910 Performance Swing Speed (rpm): 13.5 Swing Torque (Nm): 68 Travel Speed (km/h): 5.5/3.5 Gradeability (%): 70 Ground Pressure (Kpa): 45 Bucket Digging Force (kN): 158 Stick Digging Force (kN): 114 Power System Engine Model: Isuzu GI-4HK1XKSA-02 Rated Power (kw/rpm): 113/2000 Maximum Torque (N.m): 638/1500 Displacement (L): 5.193 Number of Cylinders: 4 Bore × Stroke (mm): 115×125 Cooling Method: Water-cooled Operation Type: 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled Hydraulic System Main Pump Type: 2 Variable Axial Piston Pumps + 1 Gear Pump Swing Hydraulic Motor Type: 1 Swash Plate Piston Motor Travel Hydraulic Motor Type: 2 Variable Swash Plate Piston Motors Main Pump Maximum Flow (l/min): 2×212 + 30.2 Pilot Oil Circuit (MPa): 3.9 Working Hydraulic Circuit (MPa): 34.3 Travel Hydraulic Circuit (MPa): 34.3 Swing Hydraulic Circuit (MPa): 32.3 Boom Cylinder - Quantity × Bore × Stroke (mm): 2×120×85 Stick Cylinder - Quantity × Bore × Stroke (mm): 1×135×95 Bucket Cylinder - Quantity × Bore × Stroke (mm): 1×115×80 Fluid Capacities Fuel Tank (L): 400.0 Hydraulic Oil Tank (L): 135.0 Hydraulic System (L): 31.0 Engine Oil Change Capacity (L): 23.0 Dimensions Total Transport Length (mm): 9660 Total Transport Width (mm): 2860 Total Transport Height (mm): 3010 Overall Cab Height (mm): 2950 Track Contact Length (mm): 3370 Total Track Length (mm): 4170 Track Shoe Width (mm): 600 Total Track Width (mm): 2800 Track Gauge (mm): 2200 Counterweight Ground Clearance (mm): 1030 Minimum Ground Clearance (mm): 450 Rear Swing Radius (mm): 2890 Number of Top Rollers (per side): 2 Number of Track Shoes (per side): 46 Number of Carrier Rollers (per side): 7 Working Range Maximum Digging Radius (mm): 9920 Maximum Digging Radius at Ground Level (mm): 9750 Maximum Digging Depth (mm): 6670 Maximum Digging Height (mm): 10040 Maximum Dumping Height (mm): 7180 Maximum Vertical Digging Depth (mm): 5990
