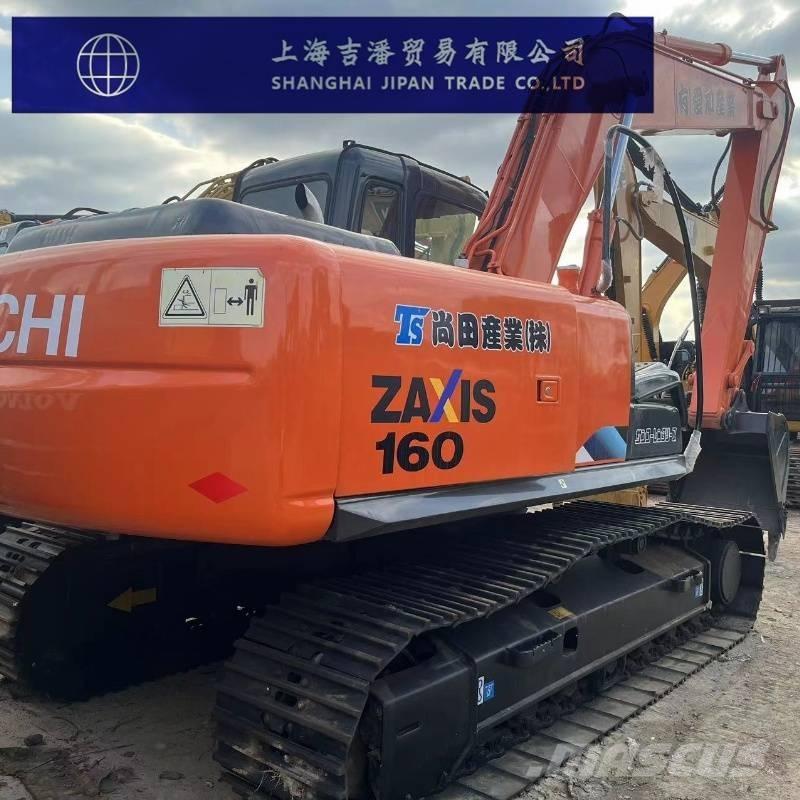

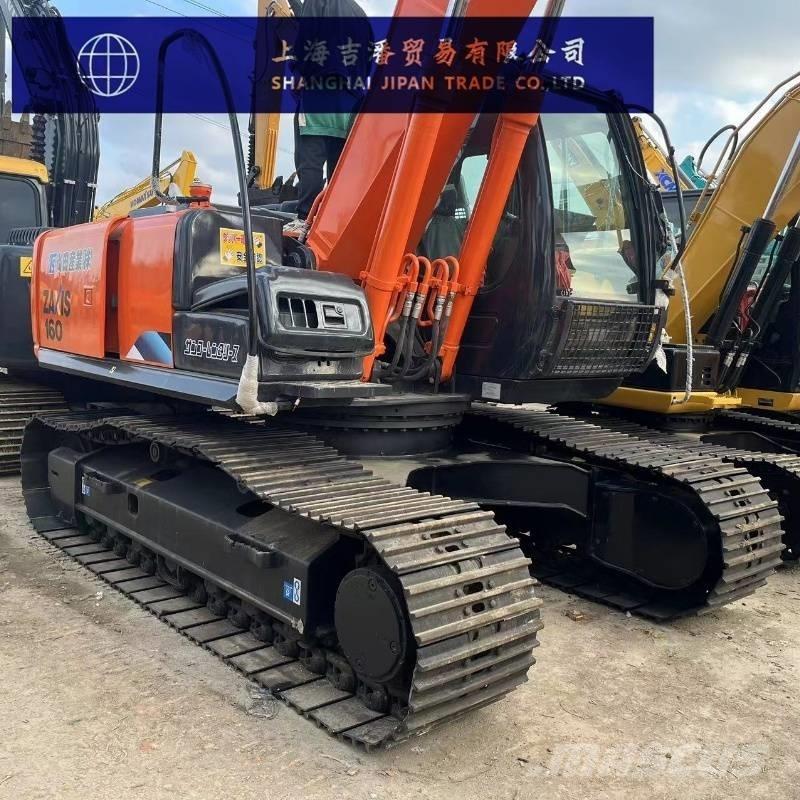

日立建机 ZX 160

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Hitachi ZX160 excavator parameter configuration Specification The working weight of the entire machine (kg) is 16,500 Bucket capacity (m³)0.6 Boom length (mm)5.1 The length of the bucket pole (mm) is 2.58 Origin: Japan Tonnage (tons)16 Grounding specific pressure (Kpa)48 Rotational speed (rpm):13.7 Walking speed (km/h)3.4/5.3 Climbing ability (%)70/35° Bucket digging force (kN)99 The digging force of the boom (kN) is 65 Power system Engine model: ISUZU Rated power (kw/rpm):90.2/2200 Displacement (L):2.999 Number of cylinders:4 Bore × stroke (mm):95.4×104.9 The cooling method is water cooling The working forms are direct injection and turbocharging Hydraulic system The main pump type is variable piston pump ×2+ gear pump ×1 The maximum flow rate of the main pump (l/min) is 33.6 Variable piston pump type for walking hydraulic motor ×2 Rotary hydraulic motor type quantitative piston pump ×1 Working hydraulic oil circuit (Mpa)34.3 Walking hydraulic circuit (Mpa)34.3 Rotary hydraulic circuit (Mpa)29.3 Pilot oil circuit (MPa)3.9 Boom cylinder - Number × cylinder bore × stroke (mm)110×80 Bucket rod cylinder - number × cylinder diameter × stroke (mm)120×90 Bucket cylinder - Number × cylinder diameter × Stroke (mm)105×75 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)320 Hydraulic oil tank (L)125 Engine oil change volume (L)17 Coolant (L)18 Main body size Total transportation length (mm):8550 Total transportation width (mm):2490 Total transportation height (mm):2950 The total height of the cab (mm) is 2950 Counterweight ground clearance (mm):1030 Track grounding length (mm)3100 The total length of the track (mm) is 3920 Track plate width (mm)500 The total width of the track (mm) is 2490 Track gauge (mm)1990 Minimum ground clearance (mm):470 The rear end rotation radius (mm) is 2490 Scope of work Maximum excavation radius (mm):8870 The maximum excavation radius (mm) of the shutdown surface is 8700 Maximum excavation depth (mm):5980 Maximum excavation height (mm):8880 Maximum unloading height (mm):6170 Maximum effective excavation depth (mm):5740 Bulldozer lift or push deep (mm) no bulldozer
