日立建机 ZX 160

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

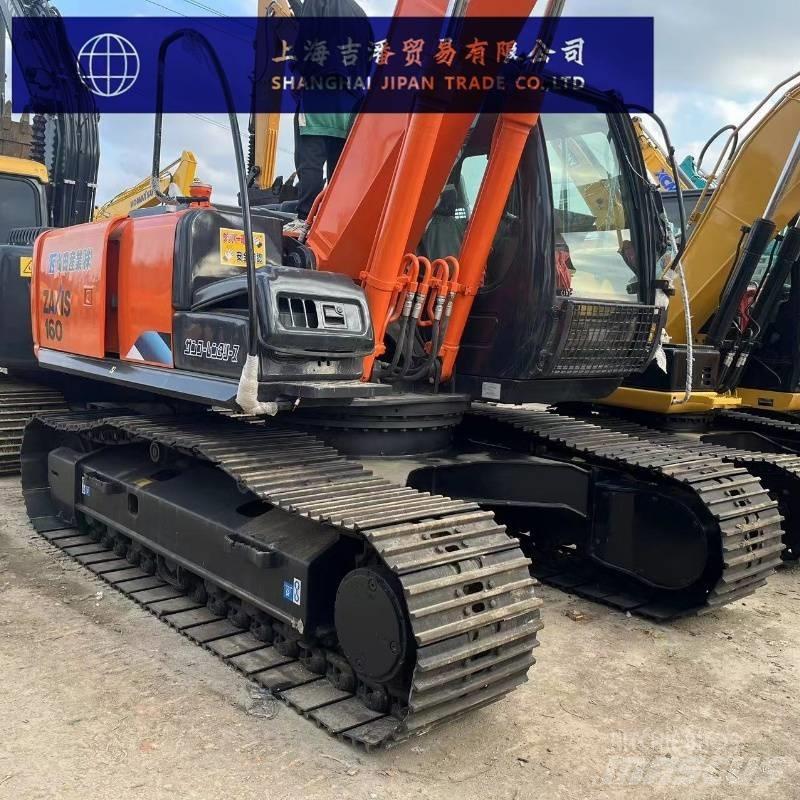

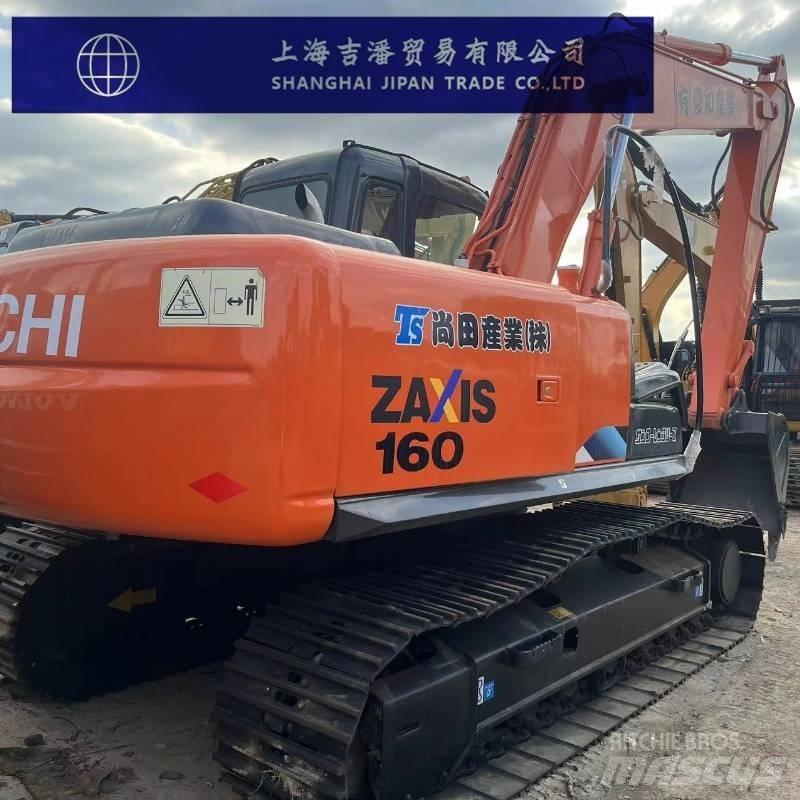

Hitachi ZX160 excavator parameter configuration Specification The working weight of the entire machine (kg) is 16,500 Bucket capacity (m³)0.6 Boom length (mm)5.1 The length of the bucket pole (mm) is 2.58 Origin: Japan Tonnage (tons)16 Joint venture/import by manufacturers Power, traditional power Bucket backhoe Joint venture/import by manufacturers Power, traditional power Performance Grounding specific pressure (Kpa)48 Rotational speed (rpm) : 13.7 Walking speed (km/h)3.4/5.3 Climbing ability (%)70/35° Bucket digging force (kN)99 The digging force of the boom (kN) is 65 Power system Engine model: ISUZU AI-4JJ1X Rated power (kw/rpm)90.2/2200 Displacement (L) : 2.999 Number of cylinders (4) Bore × stroke (mm) : 95.4×104.9 The cooling method is water cooling The working forms are direct injection and turbocharging Hydraulic system The main pump type is variable piston pump ×2+ gear pump ×1 The maximum flow rate of the main pump (l/min) is 33.6 Variable piston pump type for walking hydraulic motor ×2 Rotary hydraulic motor type quantitative piston pump ×1 Working hydraulic oil circuit (Mpa)34.3 Walking hydraulic circuit (Mpa)34.3 Rotary hydraulic circuit (Mpa)29.3 Pilot oil circuit (MPa)3.9 Boom cylinder - Number × cylinder bore × stroke (mm)110×80 Bucket rod cylinder - number × cylinder diameter × stroke (mm)120×90 Bucket cylinder - Number × cylinder diameter × Stroke (mm)105×75 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)320 Hydraulic oil tank (L)125 Engine oil change volume (L)17 Coolant (L)18 Main body size Total transportation length (mm) : 8550 Total transportation width (mm) : 2490 Total transportation height (mm) : 2950 The total height of the cab (mm) is 2950 Counterweight ground clearance (mm) : 1030 Track grounding length (mm)3100 The total length of the track (mm) is 3920 Track plate width (mm)500 The total width of the track (mm) is 2490 Track gauge (mm)1990 Minimum ground clearance (mm) : 470 The rear end rotation radius (mm) is 2490 Scope of work Maximum excavation radius (mm) : 8870 The maximum excavation radius (mm) of the shutdown surface is 8700 Maximum excavation depth (mm) : 5980 Maximum excavation height (mm) : 8880 Maximum unloading height (mm) : 6170 Maximum effective excavation depth (mm)5740 Bulldozer lift or push deep (mm) without a bulldozer
