日立建机 ZX 120

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

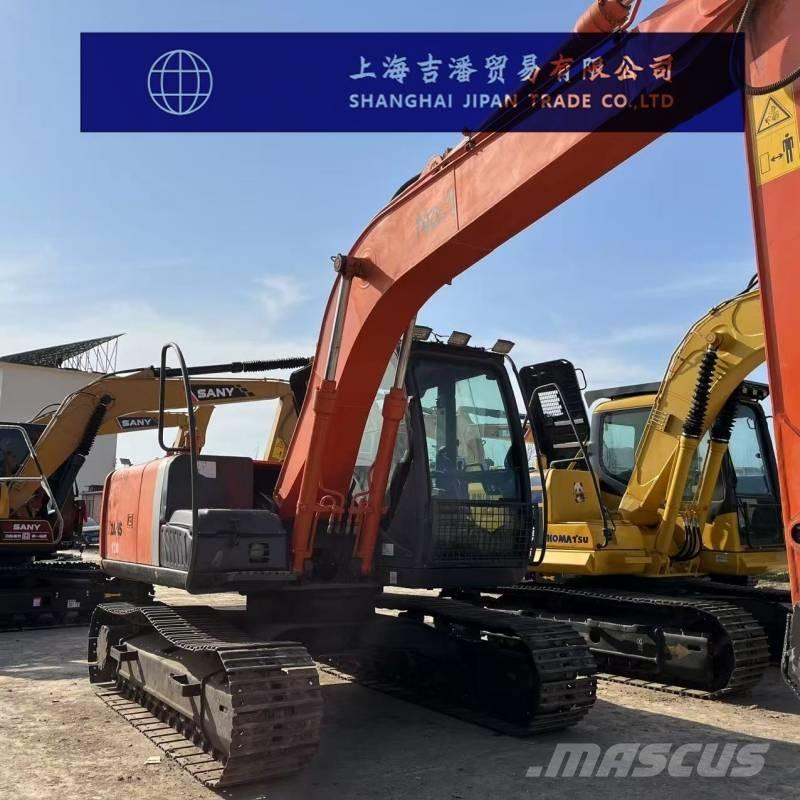

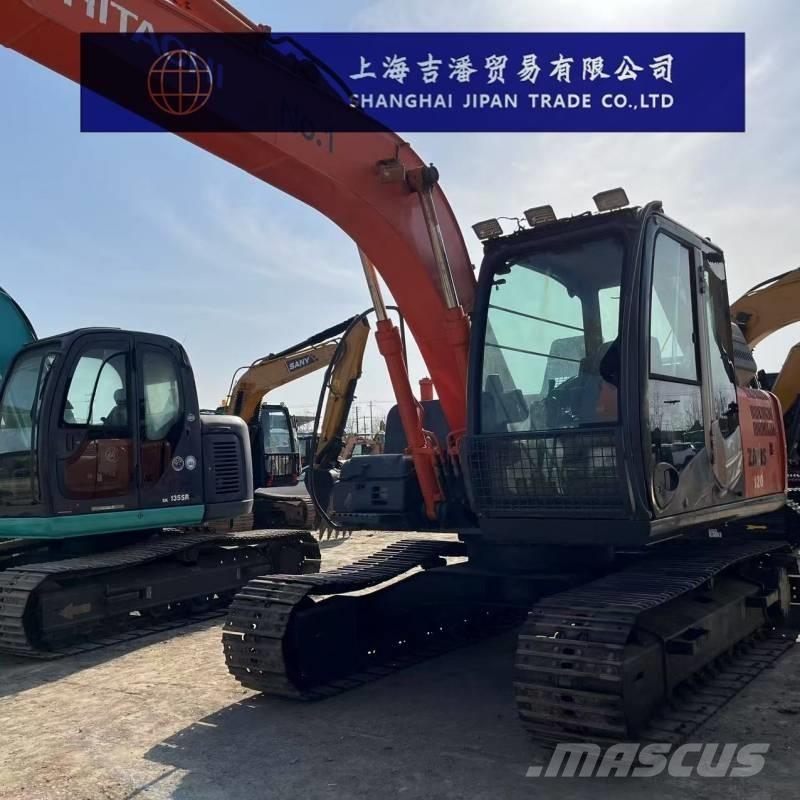

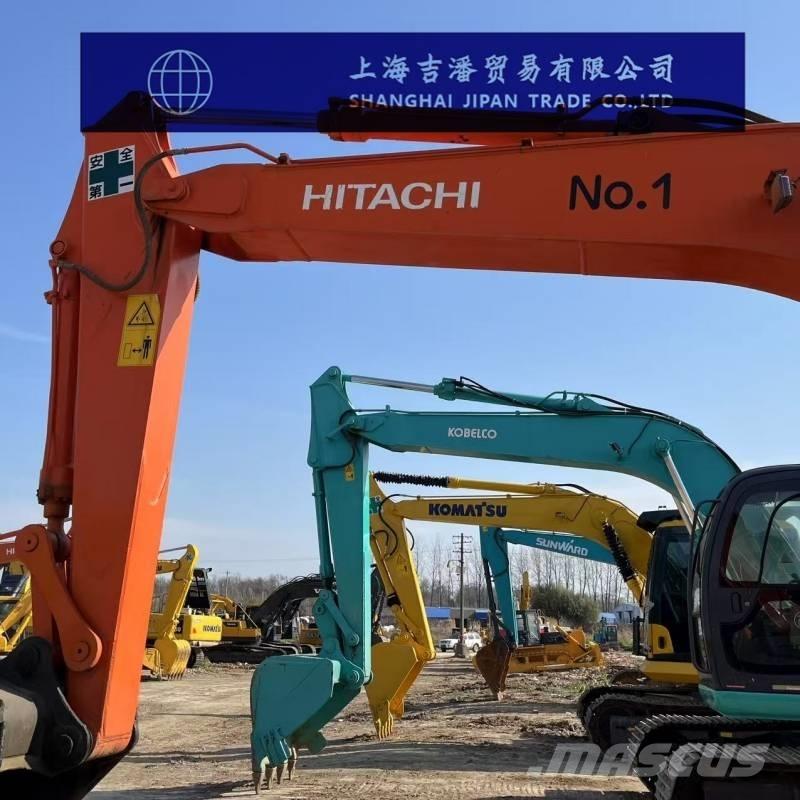

Hitachi ZX120-5A Excavator Parameter Configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 12 The working weight of the whole machine (kg) is 11500 Bucket capacity (m³) 0.52 Boom length (mm) 4270 Stick length (mm) 2260 performance Rotational speed (rpm) 13.5 Travel speed (km/h) 5.5/3.3 Climbing ability (%) 70 Grounding specific pressure (Kpa) 36 Bucket digging force (kN) 95 Stick digging force (kN) 57 dynamical system Engine model: Isuzu GJ-4JJ1XKSA-03 Rated power (kw/rpm) 73/2000 Displacement (L) 2.999 Hydraulic system Main pump type variable axial piston pump*2 Oil capacity Fuel tank (L) 280 Hydraulic Tank (L) 70 Engine oil change volume (L) 17 Body size Total length of transport (mm) 7340 Total Transport Width (mm) 2490 Total height of transport (mm) 2870 Cab total height (mm) 2790 Track shoe width (mm) 500 Track gauge (mm) 1990 Minimum ground clearance (mm) 410 Counterweight ground clearance (mm) 840 The minimum turning radius of the front working device (mm) is 2370 Rear end turning radius (mm) 2190 Scope of work Maximum digging radius (mm) 7740 The maximum excavation radius of the shutdown surface (mm) is 7600 Maximum digging depth (mm) 5050 Maximum digging height (mm) 8140 Maximum unloading height (mm) 5730 Maximum vertical digging depth (mm) 4090
