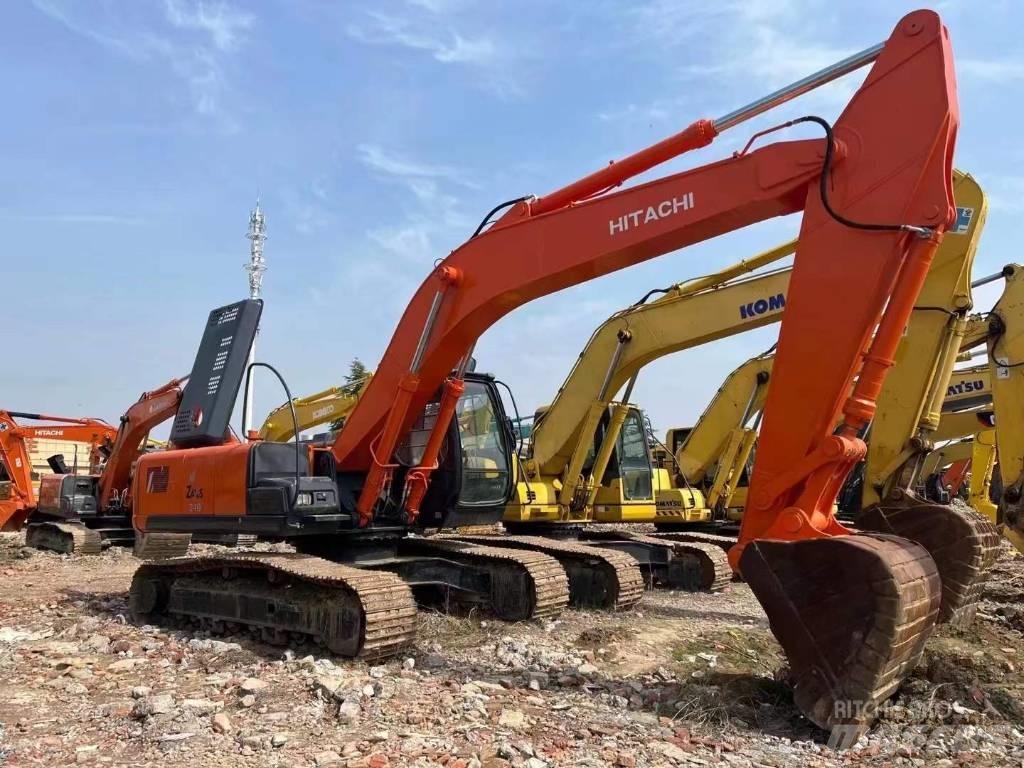

日立建机 ZAXIS240

Hello, I'm Gavin, specializing in the sales of construction machinery. We have been working in this industry for decades and have four large machine storage yards in Shanghai. If you are interested in any machines, please feel free to contact me. WhatsApp/WeChat: 0086 18019214942 Email:

Overall machine parameters: Overall machine working weight: 23800kg Bucket capacity: 1.0m³ Tonnage: 24 tons Power system: Engine model: Isuzu ISUZU AH-4HK1X Rated power: 132kW/2000rpm Displacement: 5.193L Number of cylinders: 4 Cooling method: Water cooling Notes: Direct injection, turbocharging, with intercooler Hydraulic system: Main pump type: Variable piston pump × 2 + Gear pump × 1 Main pump maximum flow rate: 2 × 224L/min Main overflow set pressure: 34.3MPa Travel hydraulic motor type: Variable axial piston motor × 2 Rotary hydraulic motor type: Axial piston motor × 1 Oil capacity: Fuel tank: 500L Hydraulic tank: 156L (full tank 243L) Engine oil replacement volume: 23L Coolant: 26L Main body dimensions: Total transportation length: 10150mm Total transportation width: 2990mm Total transportation height: 3070mm Track ground length: 3460mm Total track length: 4260mm Track plate width: 600mm Track gauge: 2390mm Minimum ground clearance: 460mm Rear end rotary radius: 2940mm Working range: Maximum digging radius: 10290mm Maximum digging depth: 6960mm Maximum digging height: 10160mm Maximum unloading height: 7200mm Maximum vertical digging depth: 6030mm Performance parameters: Rotary speed: 13.5rpm Travel speed: 3.4/5.5km/h Climb ability: 70%/35° Ground pressure: 52kPa Bucket digging force: 180kN Bucket arm digging force: 125kN
