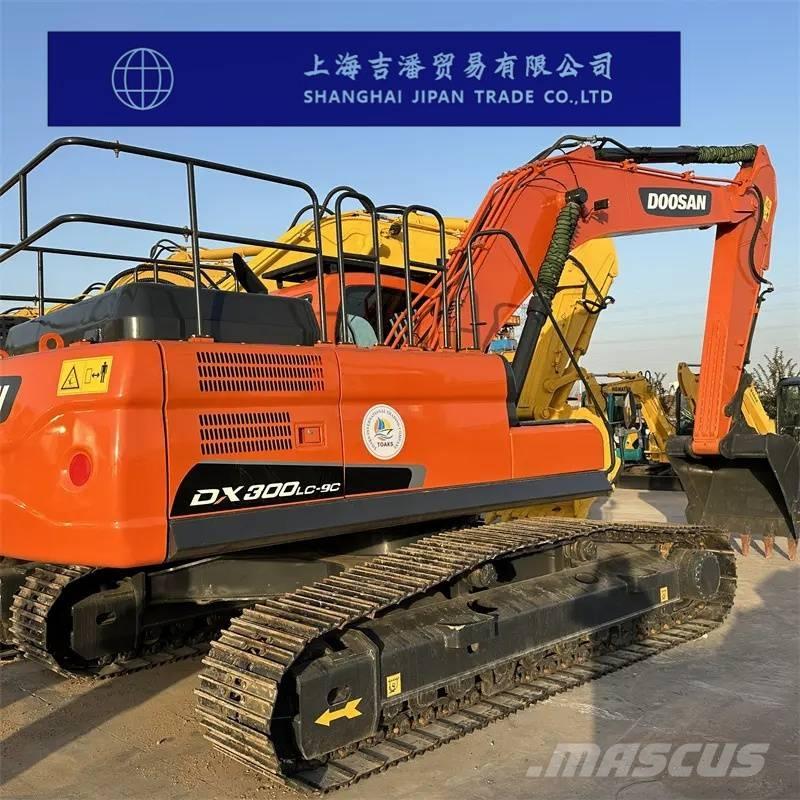

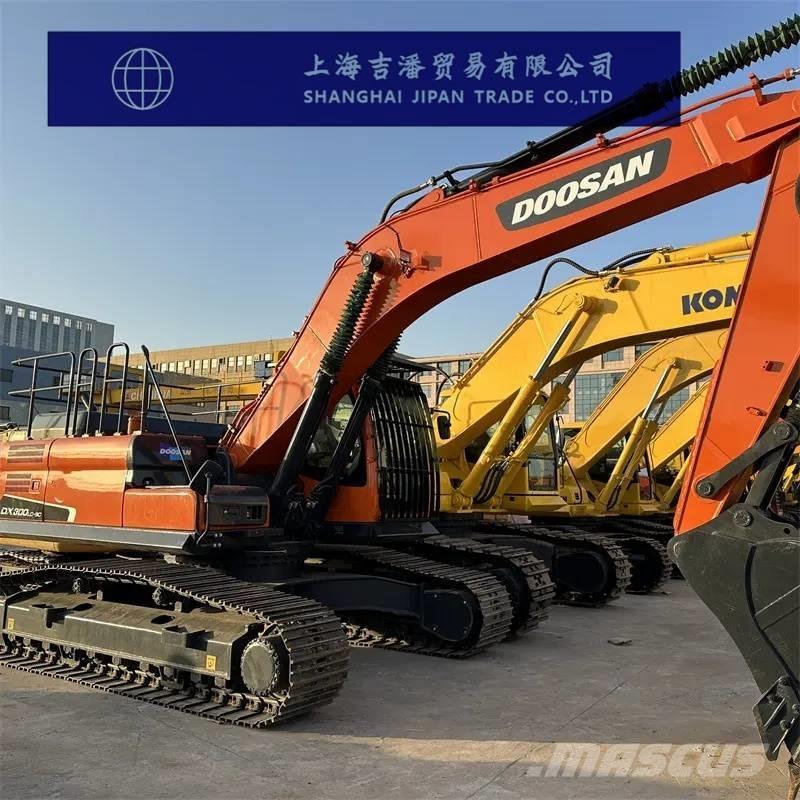

斗山 DX 300

Company Information Shanghai Jipan Trade Co.,Ltd. is a professional vehicle exporting company.It has been in this business over 20 years and have strong stock to meet market requirement. It has professional repairing team,loading team,purchase team and exporting team.We can provide best service and perfect cooperation feeling.Now We have ambulance,fair engines,truck mounted crane,crawler crane,forklift,excavator,bulldozer...and so on in stock.And have many Chinese or Japanese,American brand for choice. Please contact without hesitation.

Basic Information Operating Weight: 30,215 kg Bucket Capacity: 1.45-1.6 m³ Power Type: Conventional Power Manufacturer: Joint Venture / Imported Bucket Type: Backhoe Ton Class: 30 tons Boom Length: 6,245 mm Arm Length: 3,100 mm Performance Parameters Swing Speed: 9.4 rpm Swing Torque: 11,760 N·m Travel Speed: 5.7/3.2 km/h Ground Pressure: 0.57 kg/cm² Bucket Digging Force: 183.3 kN Arm Digging Force: 128.4 kN Engine Parameters Engine Model: DL08 Rated Power: 159 kW / 1900 rpm Number of Cylinders: 6 Bore × Stroke: 108 × 309 mm Hydraulic System Parameters Main Pump Type: Variable Displacement Piston Pump Maximum Main Pump Flow: 2 × 248 L/min Fluid Capacities Fuel Tank: 500 L Hydraulic Oil Tank: 280 L Dimensions Total Transport Length: 10,615 mm Total Transport Width: 3,199 mm Total Transport Height: 3,515 mm Total Track Length: 4,940 mm Track Shoe Width: 600 mm Total Track Width: 3,200 mm Minimum Ground Clearance: 506 mm Counterweight Ground Clearance: 1,150 mm Rear Swing Radius: 3,188 mm Number of Track Rollers (per side): 9 Number of Top Rollers (per side): 2 Number of Track Shoes (per side): 48 Working Range Maximum Digging Radius: 10,702 mm Maximum Digging Radius at Ground Level: 10,506 mm Maximum Digging Depth: 7,275 mm Maximum Digging Height: 10,315 mm Maximum Dumping Height: 7,303 mm Maximum Vertical Digging Depth: 4,907 mm Maximum Effective Digging Depth: 6,455 mm
