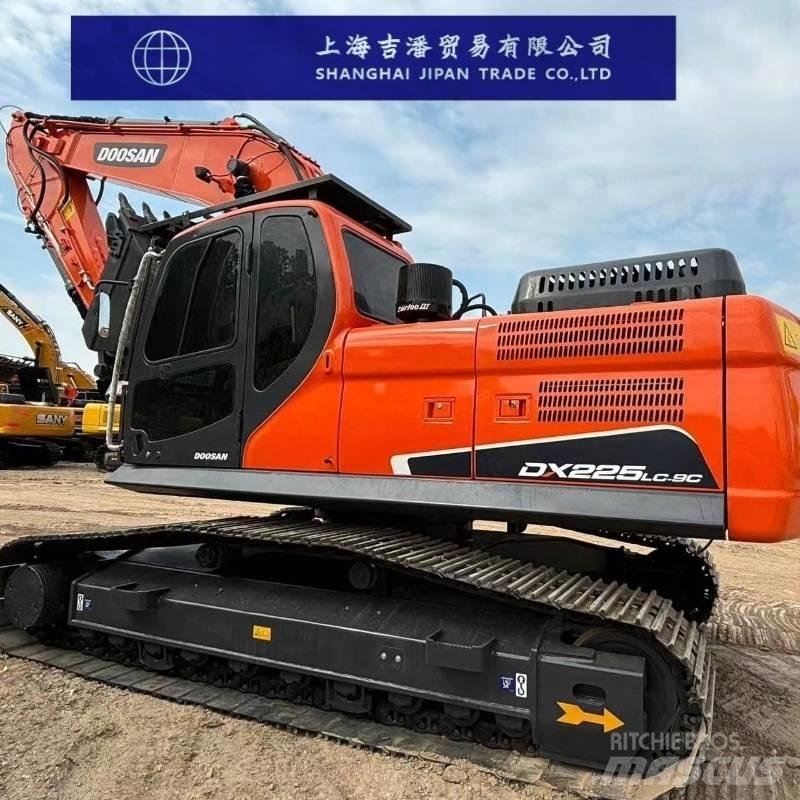

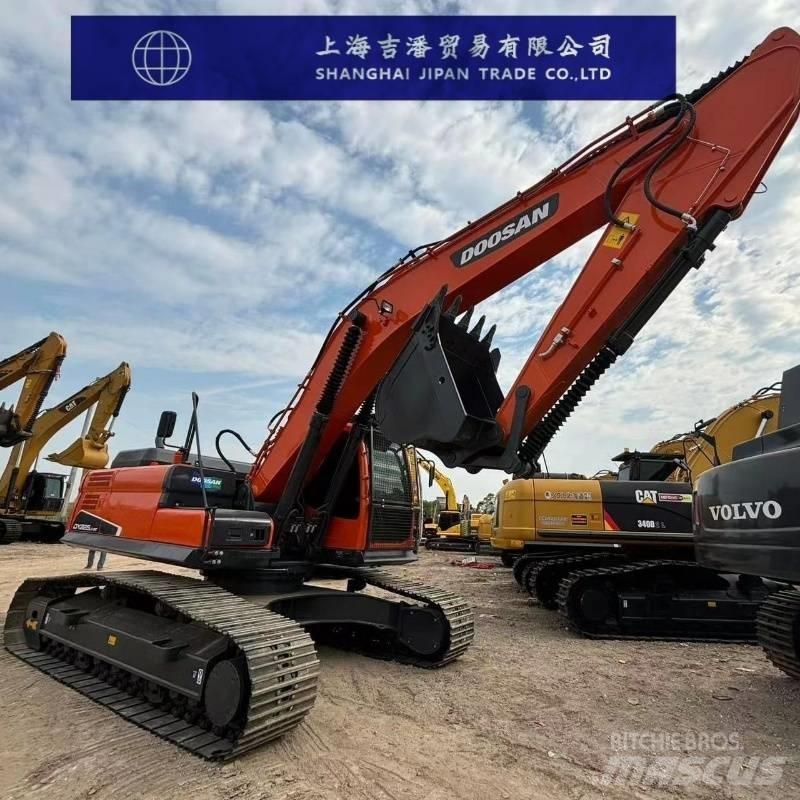

斗山 DX 225

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

迪万伦DX225LC-9C挖掘机 参数配置 规格 动力传统动力 厂商合资/进口 铲斗反铲 吨位(吨)22 整机工作重量(kg)21800 铲斗容量(m³)1.05 m3 动臂长度(mm)5700 斗杆长度(mm)2900 性能 回转速度(rpm)10.5 行走速度(km/h)5.7/3.1 接地比压(Kpa)44 铲斗挖掘力(kN)152 斗杆挖掘力(kN)108 动力系统 发动机型号DL06 额定功率(kw/rpm)115 (154 HP) / 1,900 气缸数(个)6 缸径×行程(mm)100 *125 工作形式直列 液压系统 主泵最大流量(l/min)2 X 212/min 油类容量 燃油箱(L)400 液压系统(L)195 主体尺寸 运输总长度(mm)9,506 运输总宽度(mm)2,990 运输总高度(mm)2,891 驾驶室全高(mm)832 上车宽度(mm)1,008 履带总长度(mm)4,440 履带板宽度(mm)600 履带总宽度(mm)2,990 最小离地间隙(mm )475 配重离地间隙(mm)1,096 前段工作装置最小回转半径(mm)562 后端回转半径(mm )2,794 作业范围 最大挖掘半径(mm)9,873 停机面最大挖掘半径(mm)9,699 最大挖掘深度(mm)6592 最大挖掘高度(mm)9,616 最大卸载高度(mm)6,830 最大垂直挖掘深度(mm)3,929 最大有效挖掘深度(mm)6,411
