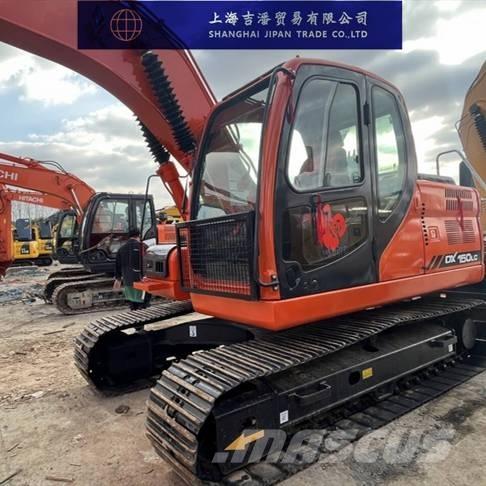

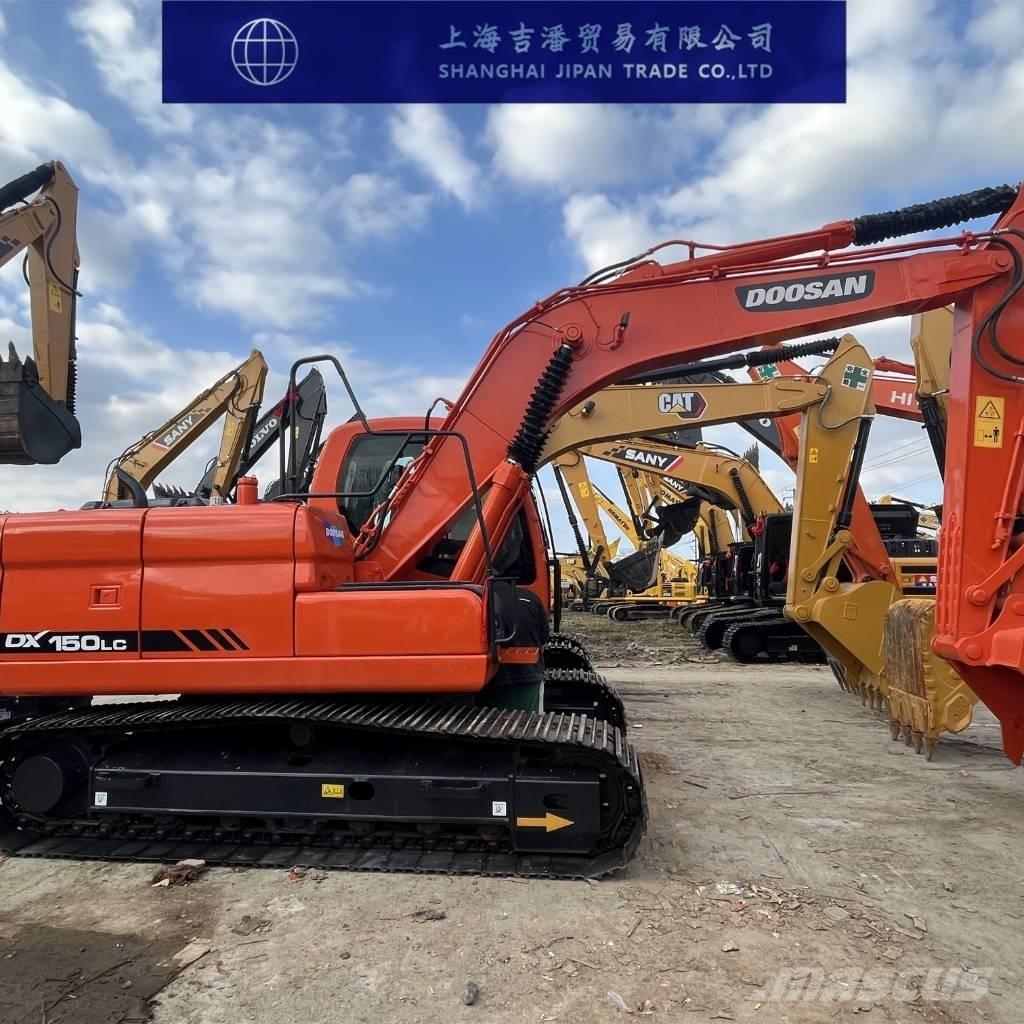

斗山 DX 150

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Diwanlun DX150LC-9C excavator parameter configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 15 The working weight of the whole machine (kg) is 14100 Bucket capacity (m³) 0.58 Boom length (mm) 4600 Stick length (mm) 2500 performance Rotational speed (rpm) 10.1 Travel speed (km/h) High: 5.04 / Low: 3.01 Grounding specific pressure (Kpa) 36 Bucket digging force (kN) 100.9 Stick digging force (kN) 59.8 dynamical system Engine model DL06 Rated power (kw/rpm) 74/1900 Number of cylinders (pcs) 6 Bore × stroke (mm) 100×125 The working form is in-line, turbocharged. Hydraulic system Main pump type variable piston pump Traveling hydraulic motor type axial plunger hydraulic motor The maximum flow rate of the main pump (l/min) is 2*114 Working hydraulic oil circuit (Mpa) 33 Traveling Hydraulic Circuit (Mpa) 35 Slewing hydraulic circuit (Mpa) 27.5 Oil capacity Fuel tank (L) 267 Hydraulic Tank (L) 147 Engine oil change volume (L) 27 Body size Total length of transport (mm) 7662 Total width of transport (mm) 2530 Total height of transport (mm) 2476 Total track length (mm) 3750 Track shoe width (mm) 600 Counterweight ground clearance (mm) 894 Minimum ground clearance (mm) 410 Rear end turning radius (mm) 2200 Number of support wheels (one side) (pcs) 1 Number of track shoes (single side) (pcs) 43 Number of support wheels (unilateral) (pieces) 7 Scope of work Maximum digging radius (mm) 8305 The maximum excavation radius of the stopping surface (mm) is 8160 Maximum digging depth (mm) 5625 Maximum digging height (mm) 8750 Maximum unloading height (mm) 6300 Maximum vertical digging depth (mm) 4650
