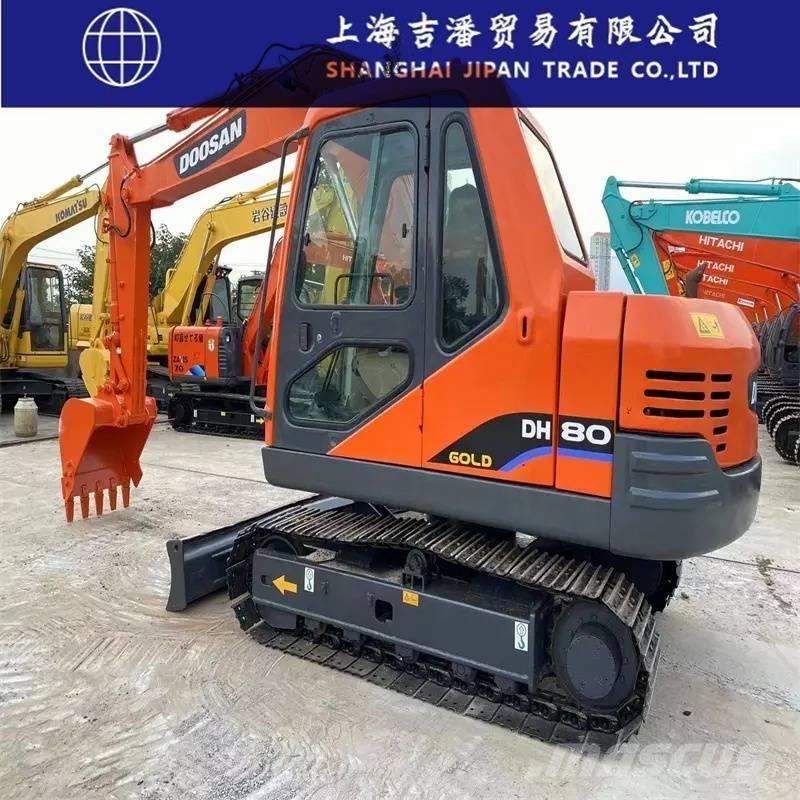

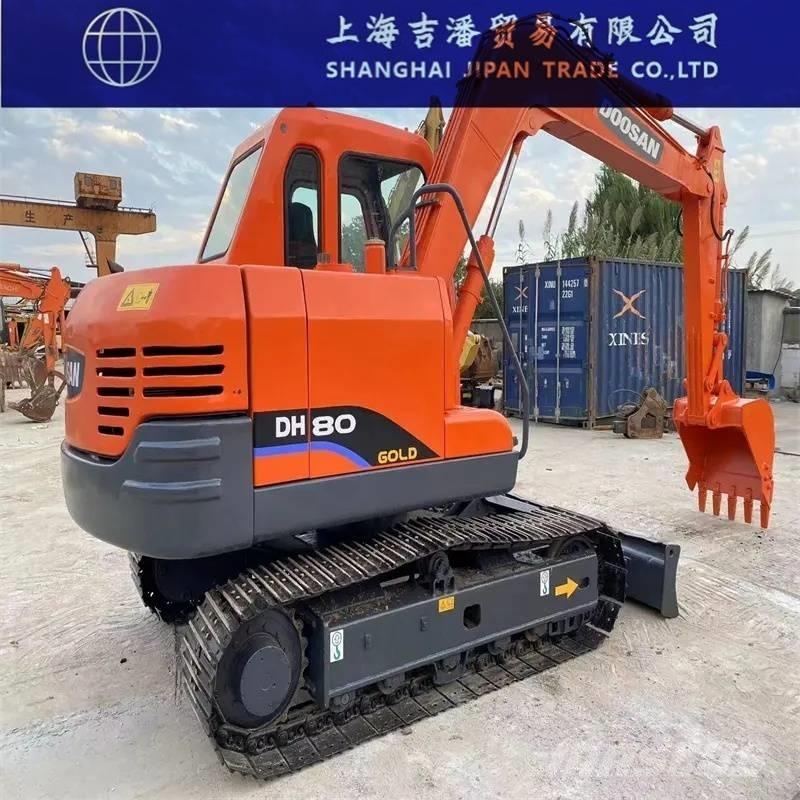

斗山 DH 80

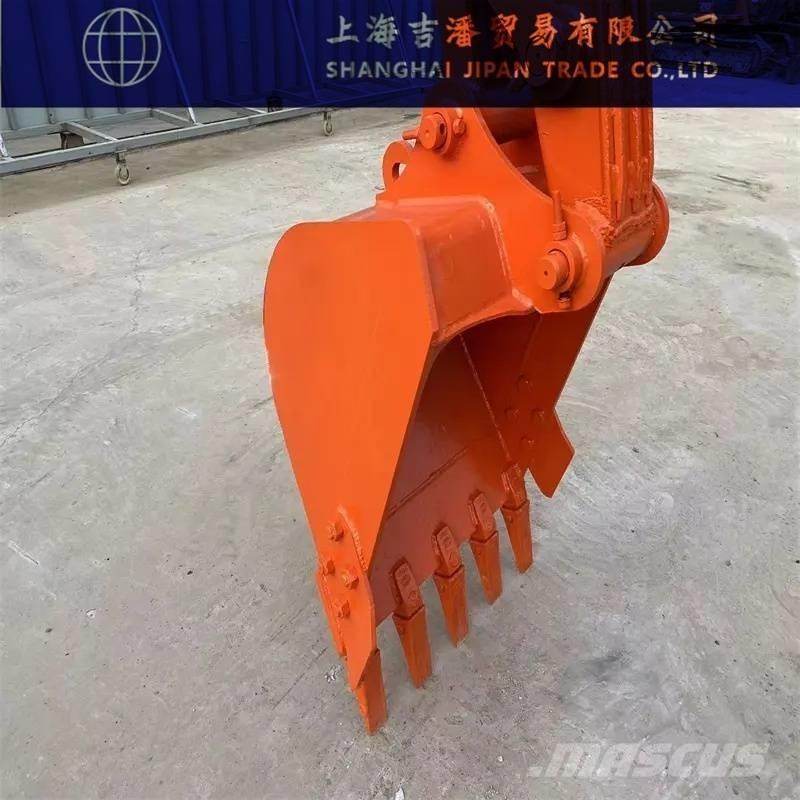

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Diwanlun DH80 excavator Specification The working weight of the entire machine (kg) is 7830 Bucket capacity (m³) : 0.28-0.32 Boom length (mm) : 3100 The length of the boom (mm) is 1800 Origin: Yantai, Shandong Province Tonnage (tons)8 Power Traditional Power Bucket backhoe Joint venture/import by manufacturers Power Traditional Power Performance Bucket digging force (kN)55 Bucket shaft digging force (kN)38 Power system Engine model: Kubota KubotaV3300-DI Rated power (kw/rpm)45.8/2200 Displacement (L)3.318 The cooling method is water cooling The fuel consumption in the working mode is 163g/ps.hr Hydraulic system The maximum flow rate of the main pump (l/min) is 162.8 Walking hydraulic circuit (Mpa)250 Rotary hydraulic circuit (Mpa)190 Boom cylinders - Number × cylinder diameter × stroke (mm)110*65*865 Bucket rod cylinder - number × cylinder diameter × stroke (mm)95*60*850 Bucket cylinder - Number × cylinder diameter × stroke (mm)85*55*715 Is the hydraulic crushing pipeline a standard configuration Main body size Total transportation length (mm) : 5920 The total transportation width (mm) is 2200 The total transportation height (mm) is 2585 The total height of the cab (mm) is 2585 The ground clearance (mm) of the counterweight is 764 Track grounding length (mm)1990 The total length of the track (mm) is 2568 Track plate width (mm) : 400 Total track width (mm) : 2050 Track gauge (mm) : 1650 The rear end turning radius (mm) is 1710 Scope of work Maximum excavation radius (mm) : 6170 Maximum excavation depth (mm) : 4060 Maximum excavation height (mm) : 6918 Maximum unloading height (mm) : 5032
