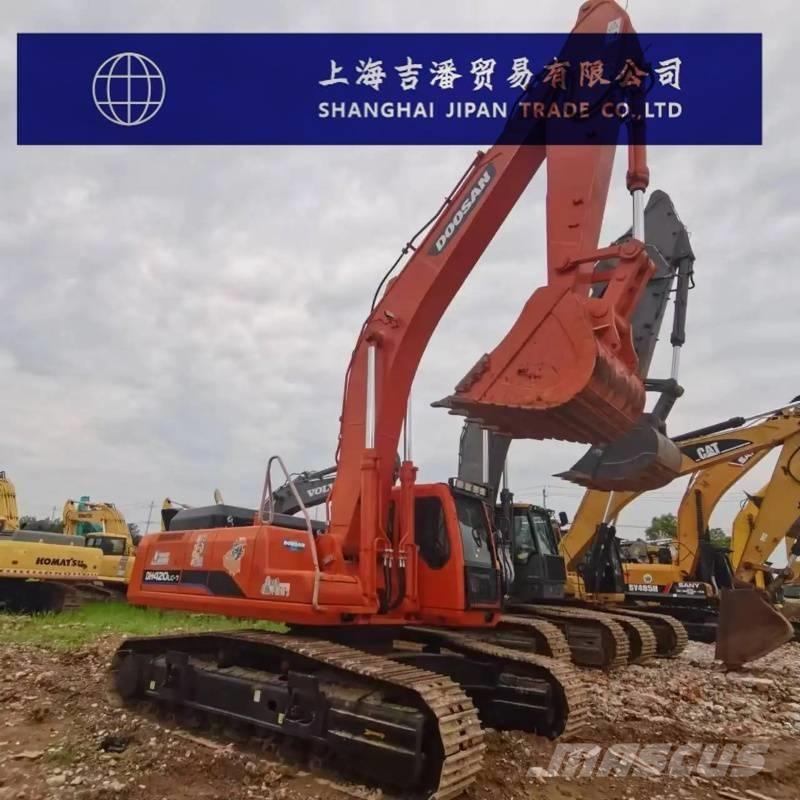

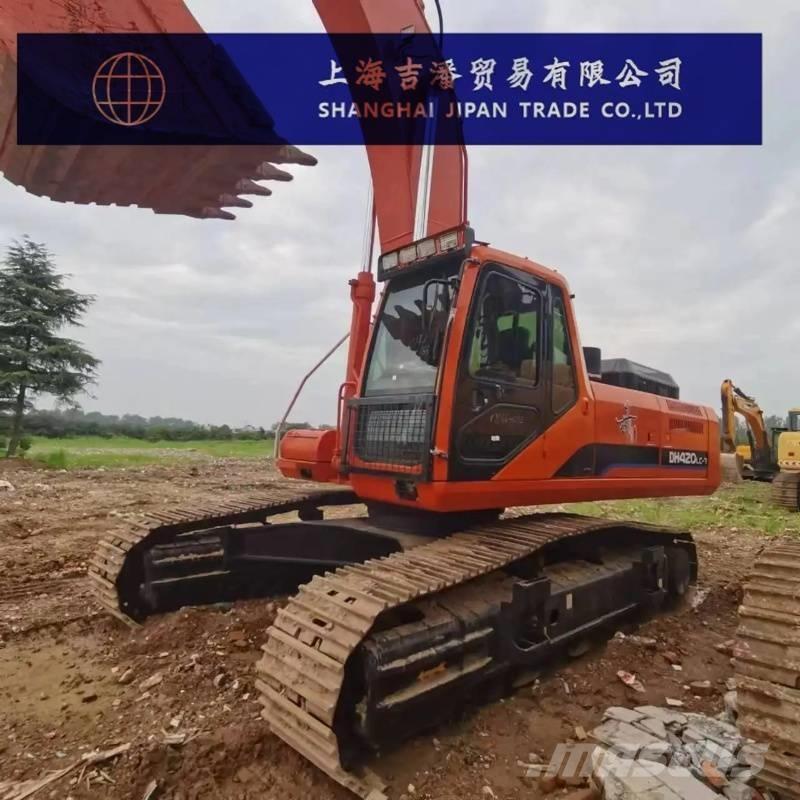

斗山 DH 420

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Diwanlun DH420LC-7 excavator parameter configuration specification The working weight of the whole machine (kg) is 41200 Bucket capacity (m³) 1.44-2.18 Boom length (mm) 6700 Stick length (mm) 2600/3250/4000 Place of origin: Yantai, Shandong Tonnage (tons) 42 Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Rotational speed (rpm) 9.5 Travel speed (km/h) 3.3-5.5 Bucket digging force (kN) 242.1/264.6 Bucket digging force (kN) 218.5/139.1;176.4/193.1;152.9/166.6 dynamical system Engine model Doosan DE12TIS Rated power (kw/rpm) 210/2000 Cooling method: Water cooling Hydraulic system Main pump type: parallel inclined shaft axial piston pump The maximum flow rate of the main pump (l/min) is 2×315 Working Hydraulic Oil Circuit (Mpa) Standard 31.4 / Supercharge 34.3 Undertravel hydraulic circuit (Mpa) 26.5 Slewing hydraulic circuit (Mpa) 26.5 Pilot pump flow rate (L/min) 24 Body size Total length of transport (mm) 11690 Total width of transport (mm) 3350 Total height of transport (mm) 3575 Cab total height (mm) 3150 Mount width (mm) 2990 Counterweight ground clearance (mm) 1277 Track grounding length (mm) 4250 Total track length (mm) 5215 Track shoe width (mm) 600 Total track width (mm) 3350 Track gauge (mm) 2750 Minimum ground clearance (mm) 540 Rear end slewing radius (mm) 3660 Scope of work Maximum digging radius (mm) 11520 The maximum excavation radius of the shutdown surface (mm) is 11310 Maximum digging depth (mm) 7725 Maximum digging height (mm) 11000 Maximum unloading height (mm) 7845 Maximum vertical digging depth (mm) 4400 Maximum effective digging depth (mm) 7570
