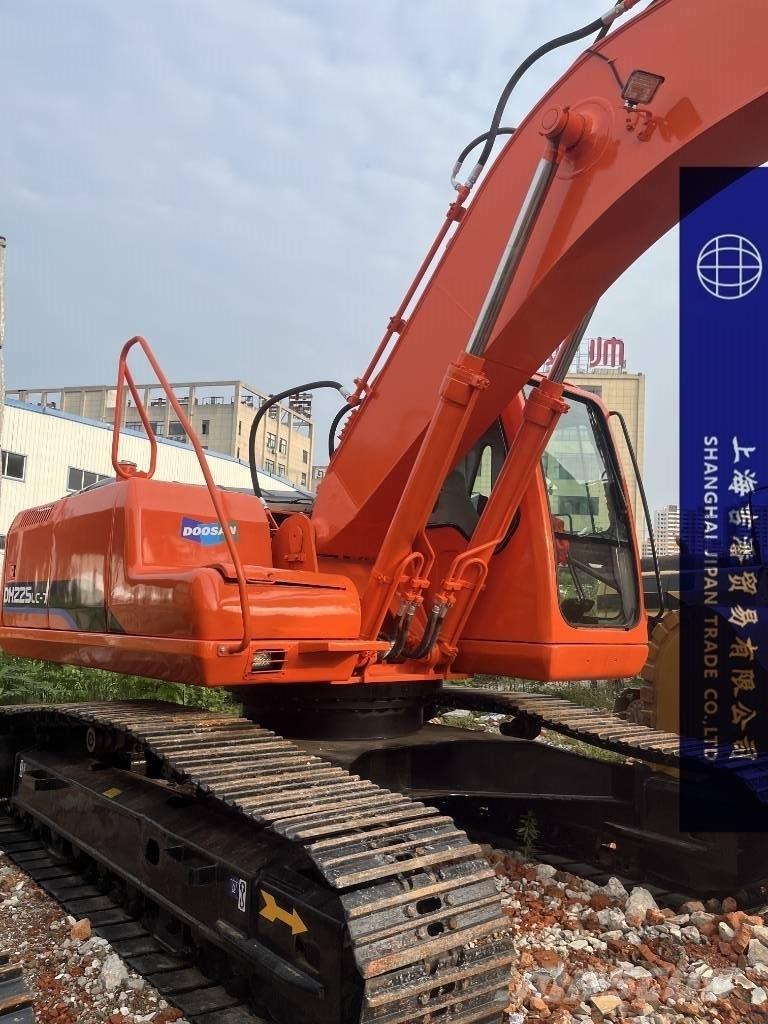

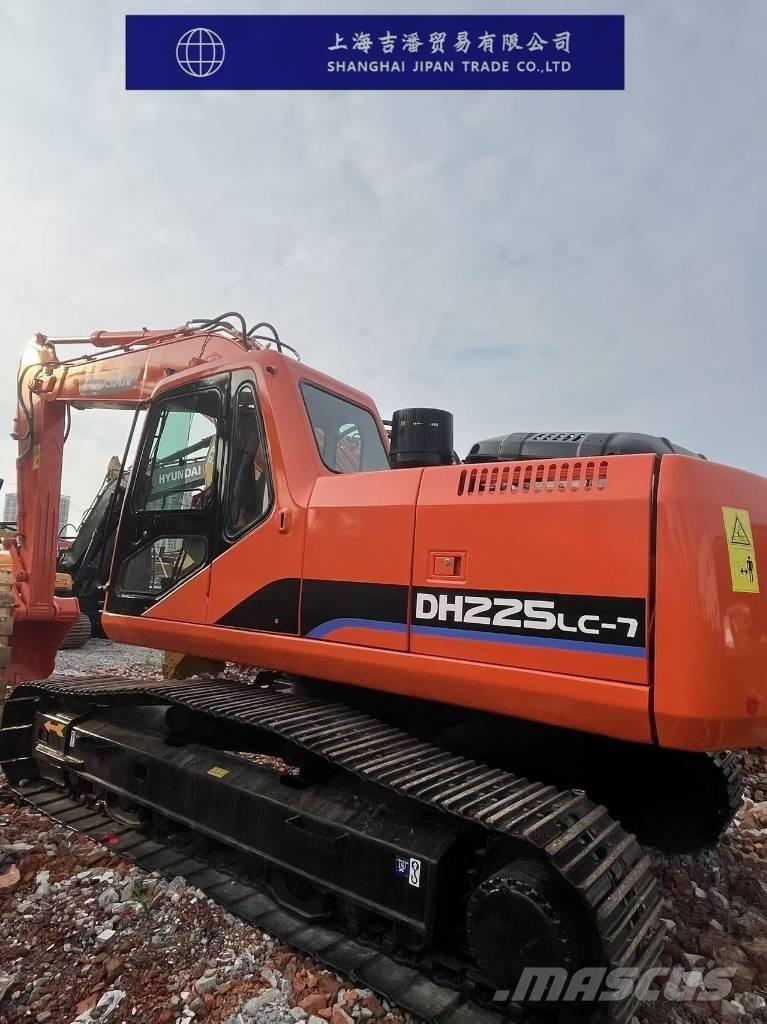

斗山 DH 225 LC-7

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Diwanlun DH225LC-7 excavator parameter configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 22 The working weight of the whole machine (kg) is 21500 Bucket capacity (m³) 0.5-1.28 Boom length (mm) 5700 Stick length (mm) 2900 performance Rotation speed (rpm) 12.4 Travel speed (km/h) 3.1-4.5 Bucket digging force (kN) 136.2/144.1 Stick digging force (kN) 97/102.9 dynamical system Engine model Doosan DB58TIS Rated power (kw/rpm) 110/1950 Displacement (L) 6.3 Cooling method: air-cooled Hydraulic system Main pump type variable axial piston pump The maximum flow rate of the main pump (l/min) is 2×215 Body size Total length of transport (mm) 9510 Total width of transport (mm) 2990 Total height of transport (mm) 3030 The total height of the cab (mm) is 3000 Track grounding length (mm) 3645 Total track length (mm) 4440 Track shoe width (mm) 600 Total track width (mm) 2990 Track gauge (mm) 2390 Minimum ground clearance (mm) 480 Counterweight ground clearance (mm) 1105 Rear end slewing radius (mm) 2750 Scope of work Maximum digging radius (mm) 9910 The maximum excavation radius of the stopping surface (mm) is 9735 Maximum digging depth (mm) 6630 Maximum digging height (mm) 9660 Maximum unloading height (mm) 6810 Maximum vertical digging depth (mm) 6045 Maximum effective digging depth (mm) 6445
