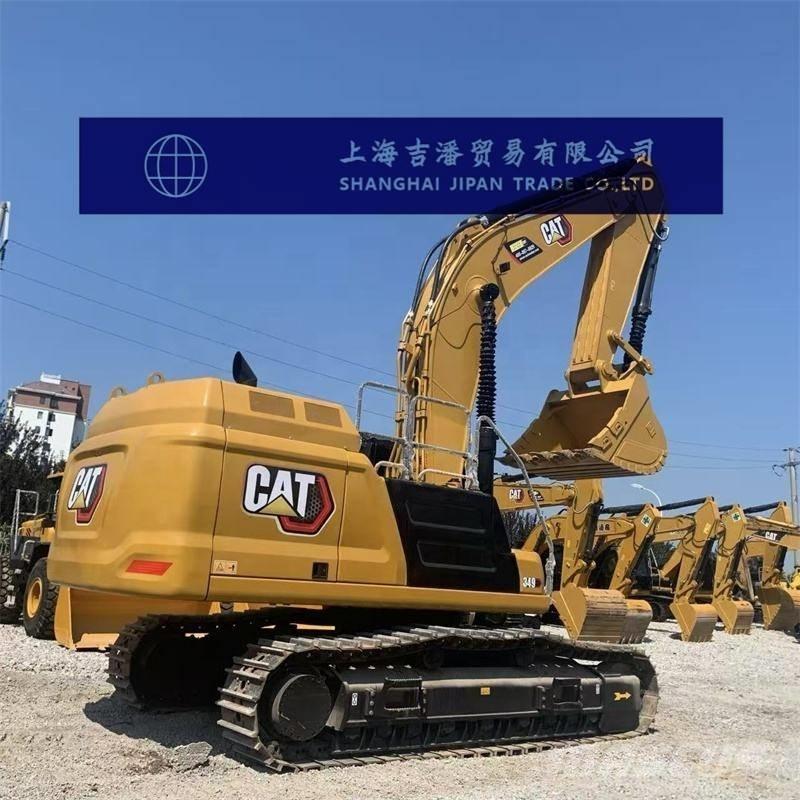

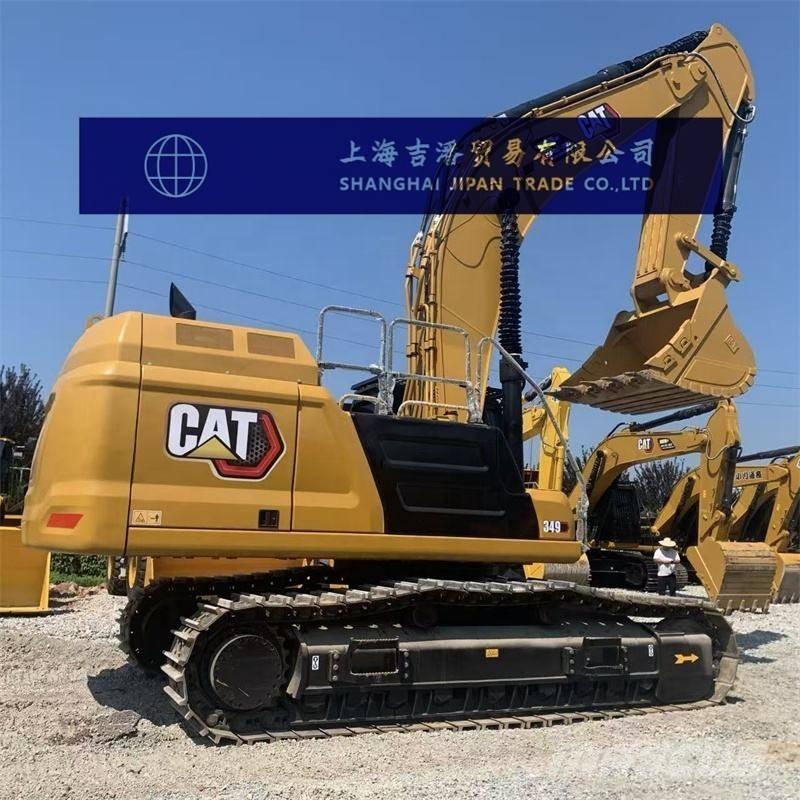

卡特 349 GC

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck mounted cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel. If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Parameter configuration of CAT 349GC Specification Tonnage (tons)49 The working weight of the entire machine (kg) is 48,200 Bucket capacity (m³)2.6 Boom length (mm)6900 The length of the boom (mm) is 3350 Performance Rotational speed (rpm):8.44 Rotary torque (Nm)187 Walking speed (km/h):4.8 Bucket digging force (kN)229 The digging force of the boom (kN) is 193 Maximum traction force (kN)335 Power system Engine model Cat C13 Rated power (kw/rpm):303/1800 Displacement (L)12.5 Cylinder diameter × stroke (mm):130*157 Hydraulic system The maximum flow rate of the main pump (l/min) is 389x ² Working hydraulic circuit (Mpa)35 Walking hydraulic circuit (Mpa)26 Rotary hydraulic circuit (Mpa)35 Oil capacity Fuel tank (L)715 Hydraulic oil tank (L)217 Hydraulic system (L)550 Engine oil change volume (L)40 Coolant (L)52 Main body size The total length of transportation (mm) is 11,920 The total transportation height (mm) is 3230 The total length of the track (mm) is 5370 Track gauge (mm):2740 Minimum ground clearance (mm)475 The ground clearance of the counterweight (mm) is 1280 The center distance of the idler wheels (mm) is 4360 Rear end turning radius (mm):3760 Scope of work The maximum excavation radius (mm) of the shutdown face is 11,770 Maximum excavation depth (mm):7700 Maximum excavation height (mm):10730 Maximum unloading height (mm):7390 Maximum vertical excavation depth (mm):5440
