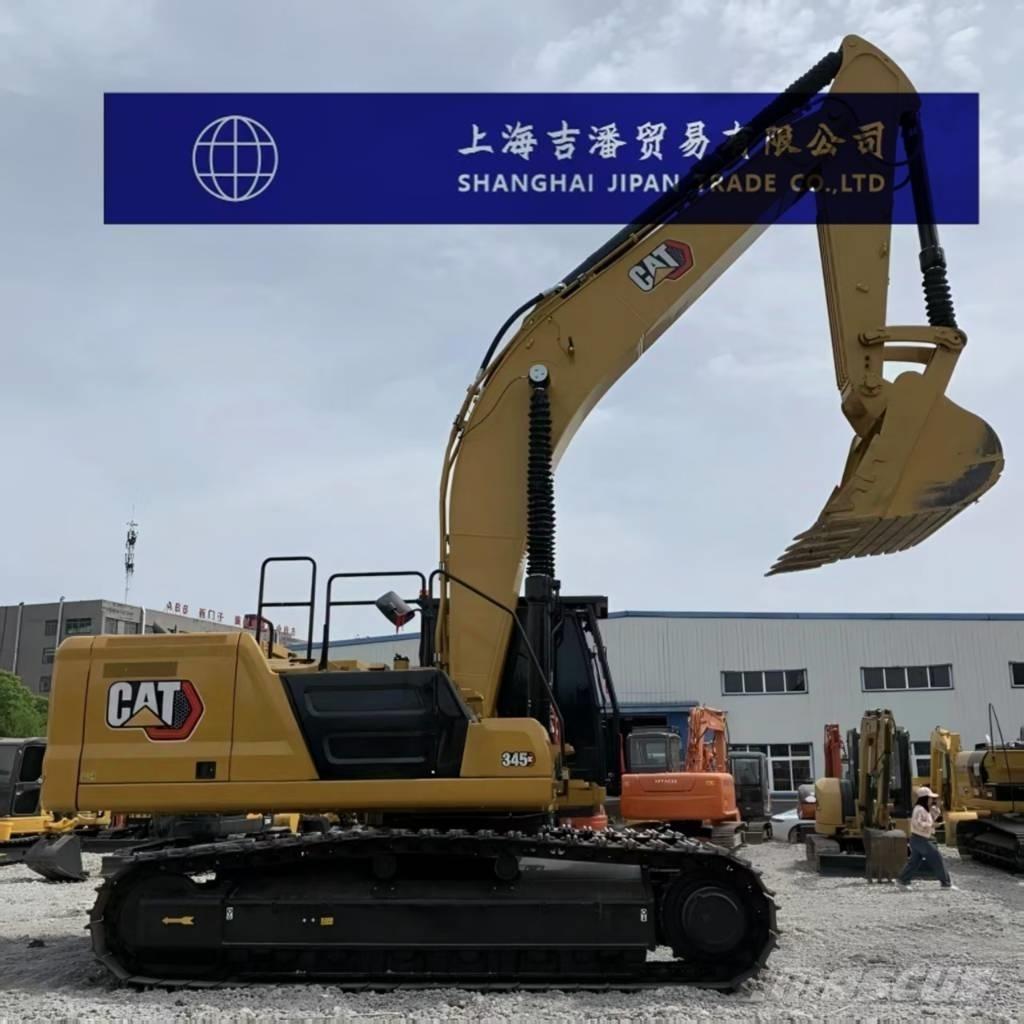

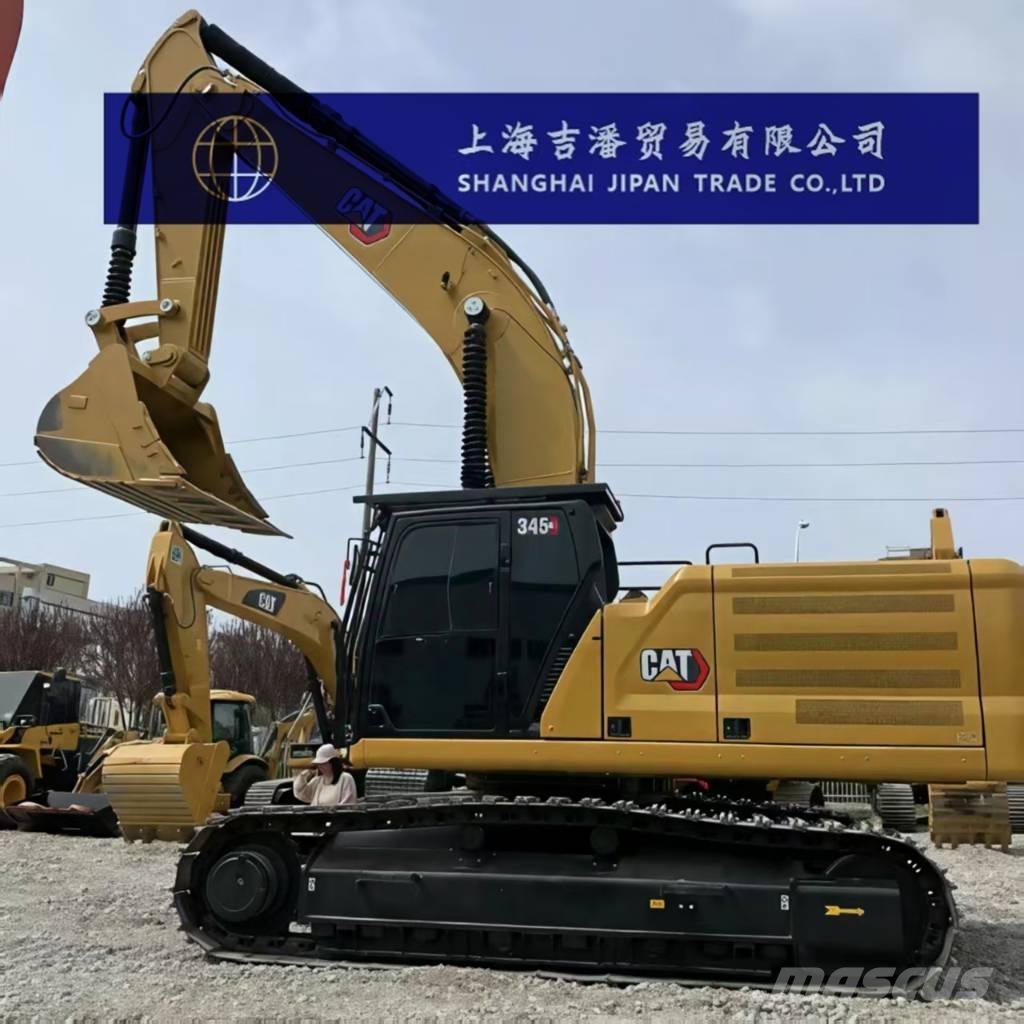

卡特 345 GC

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck mounted cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

CAT345GC Specification Tonnage (tons)43 The working weight of the entire machine (kg) is 42,200 Bucket capacity (m³)2.41 Boom length (mm)6900 Performance Rotational speed (rpm)8.27 Rotary torque (Nm)155 Power system Engine model:C9.3B Rated power (kw/rpm)258/1900 Displacement (L)9.3 Cylinder diameter × stroke (mm):115*149 Hydraulic system The maximum flow rate of the main pump (l/min) is 630 Working hydraulic circuit (Mpa)35 Walking hydraulic circuit (Mpa)35 Rotary hydraulic circuit (Mpa)28 Oil capacity Fuel tank (L)600 Hydraulic oil tank (L)423 Engine oil change volume (L)32 Coolant (L)410 Main body size The total length of transportation (mm) is 11620 The total transportation width (mm) is 3340 The total transportation height (mm) is 3230 The total length of the track (mm) is 5030 Track gauge (mm):2740 The ground clearance of the counterweight (mm) is 1300 The center distance of the idler wheels (mm) is 4040 Rear end turning radius (mm)3530 Scope of work The maximum excavation radius (mm) of the shutdown face is 11,290 Maximum excavation depth (mm):7200 Maximum excavation height (mm):10,540 Maximum unloading height (mm):7210 Maximum vertical excavation depth (mm):5390
