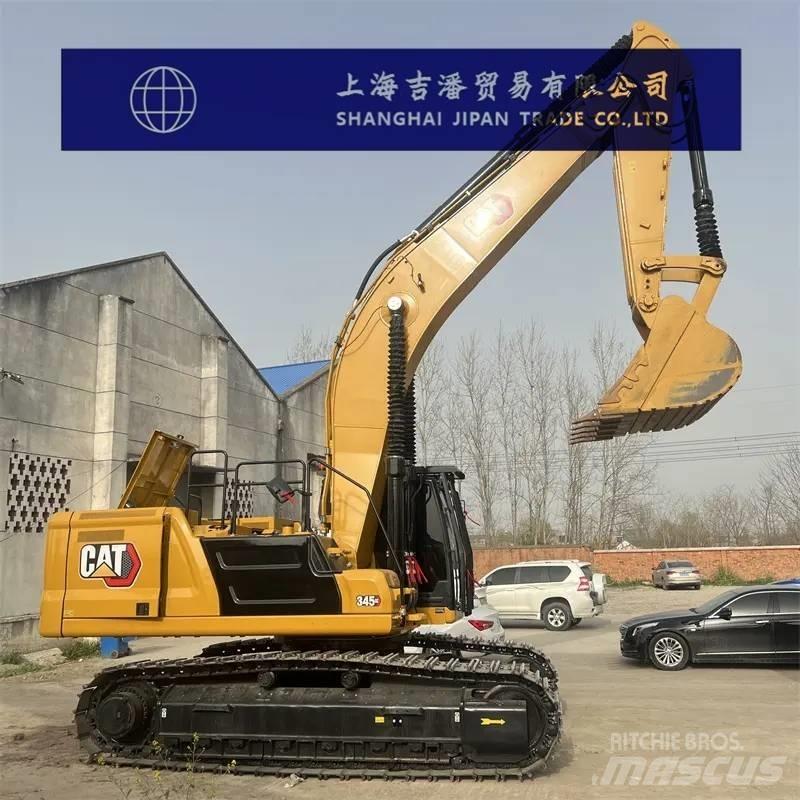

卡特 345 GC

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

卡特彼勒新一代CAT345 GC 液压挖掘机参数配置 规格 动力传统动力 厂商进口 铲斗反铲 吨位(吨)43 整机工作重量(kg)42200 铲斗容量(m³)2.41 动臂长度(mm)6900 性能 回转速度(rpm)8.27 回转扭矩(Nm)155 动力系统 发动机型号C9.3B 额定功率(kw/rpm)258/1900 排量(L)9.3 缸径×行程(mm)115*149 液压系统 主泵最大流量(l/min)630 工作液压油路(Mpa)35 行走液压回路(Mpa)35 回转液压回路(Mpa )28 油类容量 燃油箱(L)600 液压油箱(L)423 发动机油更换量(L)32 冷却液(L )410 主体尺寸 运输总长度(mm)11620 运输总宽度(mm)3340 运输总高度(mm)3230 履带总长度(mm)5030 履带轨距(mm)2740 最小离地间隙(mm )520 配重离地间隙(mm)1300 支重轮中心间距(mm)4040 后端回转半径(mm )3530 作业范围 停机面最大挖掘半径(mm)11290 最大挖掘深度(mm)7200 最大挖掘高度(mm)10540 最大卸载高度(mm)7210 最大垂直挖掘深度(mm)5390
