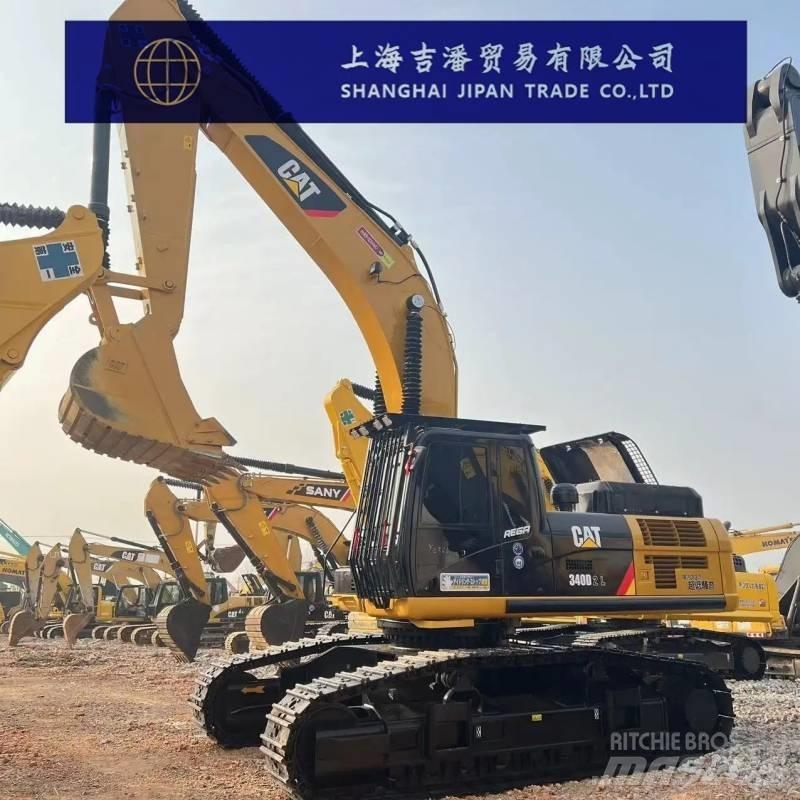

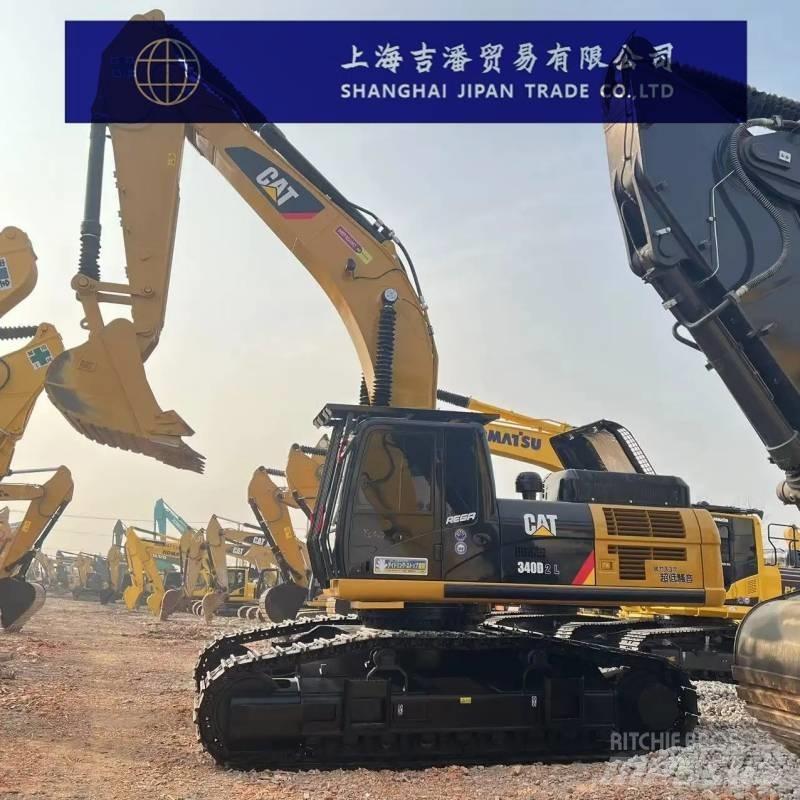

卡特 340 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)40 The working weight of the entire machine (kg) is 38,900 to 41,500 Bucket capacity (m³)1.9 Boom length (mm) : 6500 The length of the boom (mm) is 2800 Performance Rotational speed (rpm) : 8.3 Rotary torque (Nm)109 Walking speed (km/h)4.6 Climbing ability (%) : 70 Bucket digging force (kN)210 The digging force of the bucket arm (kN) is 185 The maximum traction force (kN) is 300 Power system Engine model: CatC9 Rated power (kw/rpm)208 Displacement (L)8.8 Cylinder diameter × stroke (mm) : 112×149 The working form is a direct injection fuel system with a turbocharger and rear cooler Hydraulic system The maximum flow rate of the main pump (l/min) is 281 Pilot pump flow rate (L/min)40 Pilot oil circuit (MPa)4 Walking hydraulic circuit (Mpa)35 Rotary hydraulic circuit (Mpa)28 The main overflow set pressure (Mpa) is 35 Boom cylinders - number × cylinder diameter × stroke (mm)150×1440 Bucket rod cylinder - number × cylinder diameter × stroke (mm)170×1738 Bucket cylinder - Number × cylinder diameter × stroke (mm)150×1151 Oil capacity Fuel tank (L)175 Hydraulic oil tank (L)620 Hydraulic System (L)410 Engine oil change volume (L)41 Coolant (L)40 Main body size Total transportation length (mm) : 11,170 The total transportation width (mm) is 3620 The total transportation height (mm) is 3630 The total height of the cab (mm) is 3360 The total length of the track (mm) is 5060 Track plate width (mm) : 600 Track gauge (mm) : 2920 The ground clearance of the counterweight (mm) is 1450 Minimum ground clearance (mm) : 742 The rear end turning radius (mm) is 3490 Scope of work The maximum excavation radius of the shutdown face (mm) is 10,830 Maximum excavation depth (mm) : 7190 Maximum excavation height (mm) : 10330 Maximum unloading height (mm) : 7000 Maximum vertical excavation depth (mm) : 5460 Maximum effective excavation depth (mm) : 6370
