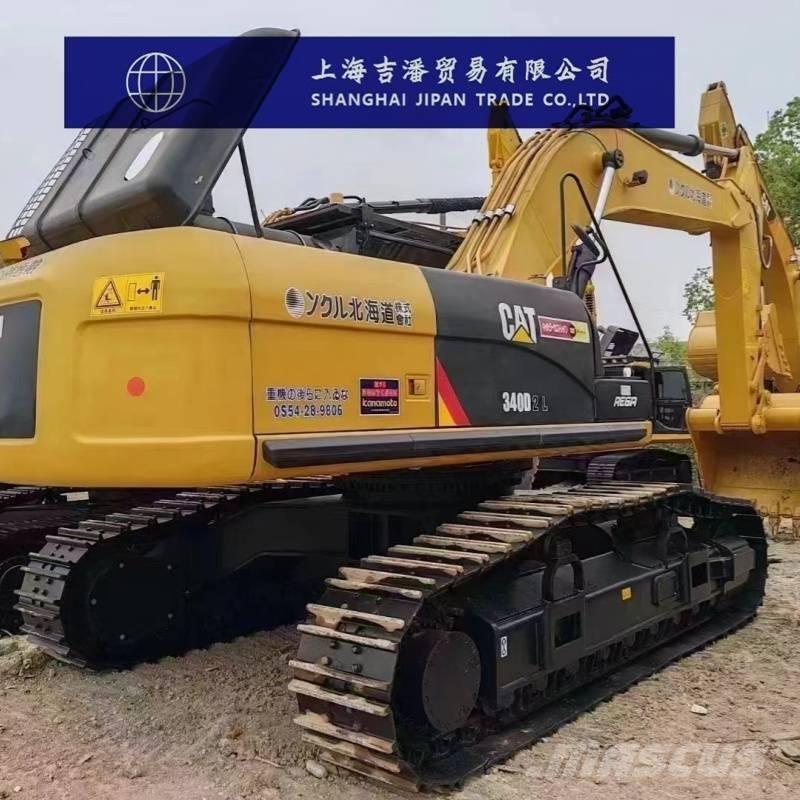

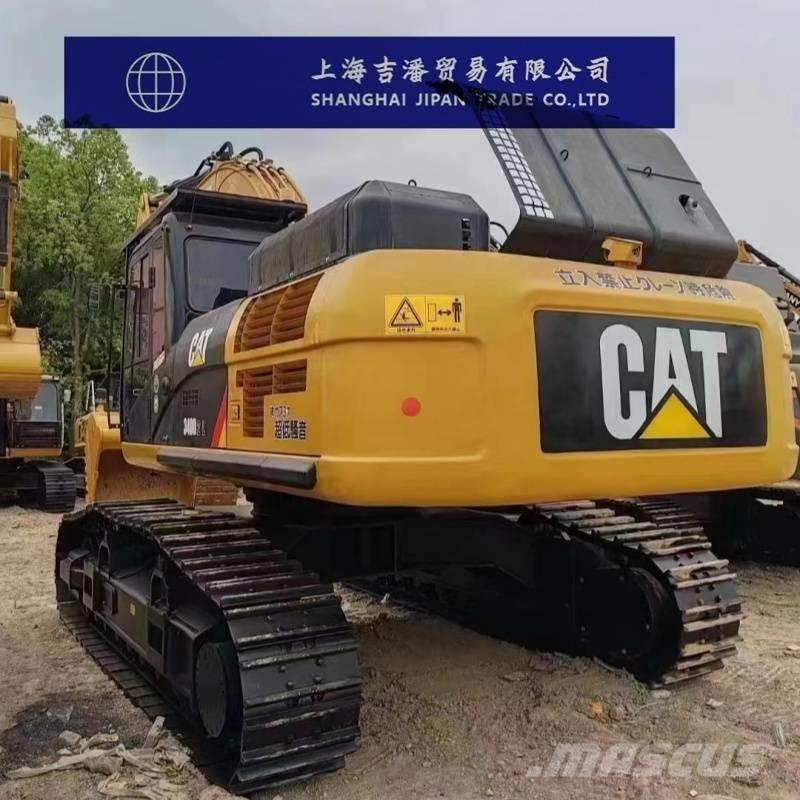

卡特 340 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Caterpillar New Generation CAT®340 Hydraulic Excavator Parameter Configuration specification Power fuel Joint ventures/imports Bucket backhoe Tonnage (tons) 40 The working weight of the whole machine (kg) is 38700 Bucket capacity (m³) 2.38 Boom length (mm) 6500 Stick length (mm) 3200 performance Rotational speed (rpm) 8.84 Rotational torque (Nm) 143k Bucket digging force (kN) 208 Stick digging force (kN) 164 dynamical system Engine model C9.3B Rated power (kw/rpm) 259/1900 Displacement (L) 9.3 Bore × stroke (mm) 115*149 Emission Standards Country IV. Hydraulic system The maximum flow rate of the main pump (l/min) is 560 Working hydraulic oil circuit (Mpa) 35 Traveling Hydraulic Circuit (Mpa) 35 Slewing Hydraulic Circuit (Mpa) 29.4 Oil capacity Fuel tank (L) 600 Hydraulic Tank (L) 161 Hydraulic System (L) 373 Engine oil change volume (L) 32 Coolant (L) 40 Body size Total length of transport (mm) 11160 Total width of transport (mm) 3340 Total height of transport (mm) 3180 Total track length (mm) 5030 Track shoe width (mm) 600 Track gauge (mm) 2740 Minimum ground clearance (mm) 510 Counterweight ground clearance (mm) 1260 The center spacing of the track roller (mm) is 4040 Rear end turning radius (mm) 3530 Scope of work Maximum digging radius (mm) 11130 Maximum digging depth (mm) 7590 Maximum digging height (mm) 10340 Maximum unloading height (mm) 7010 Maximum vertical digging depth (mm) 5400
