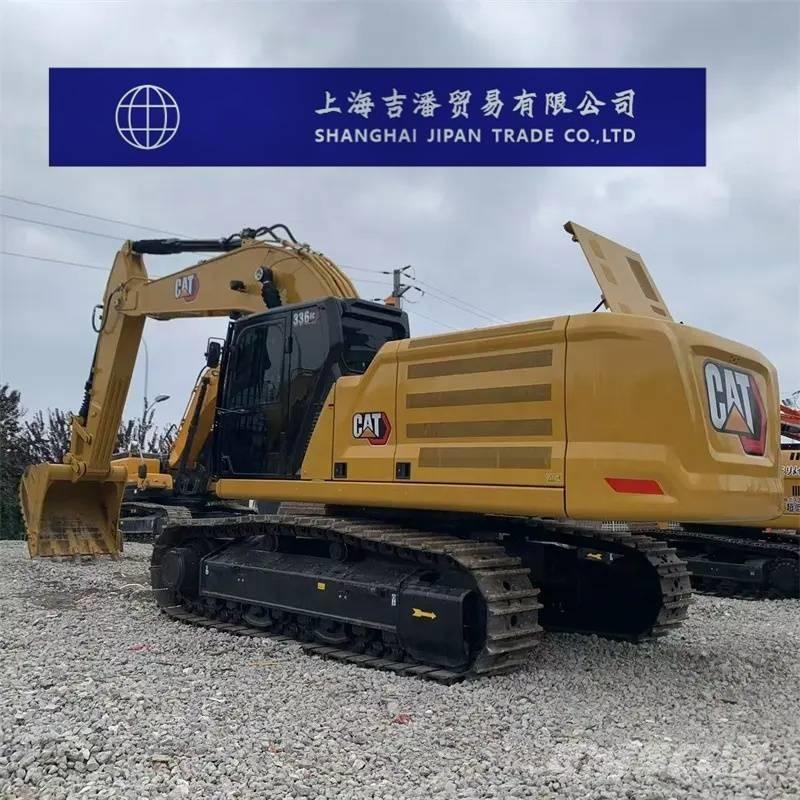

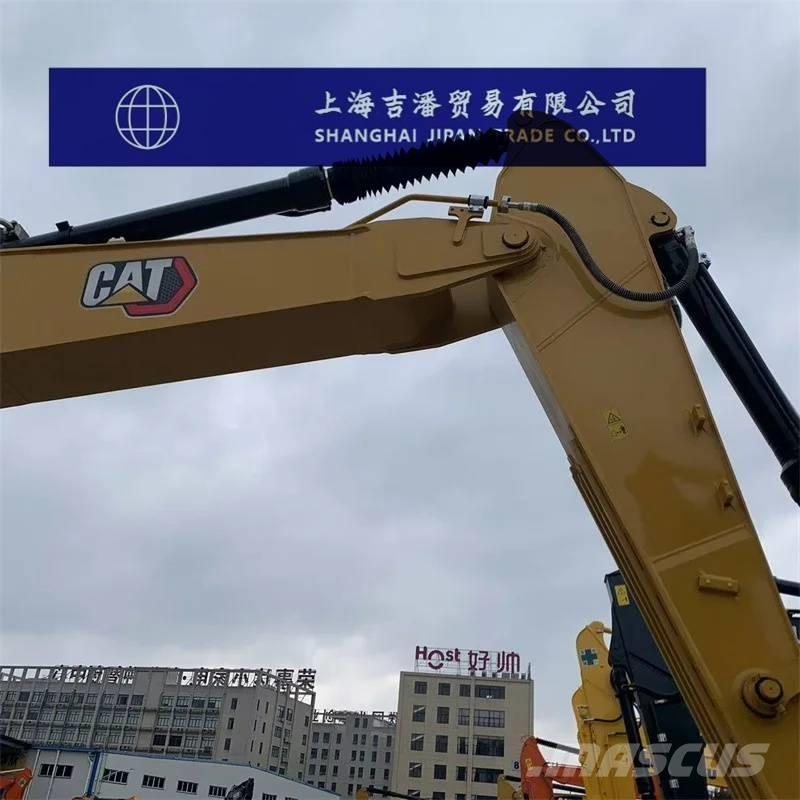

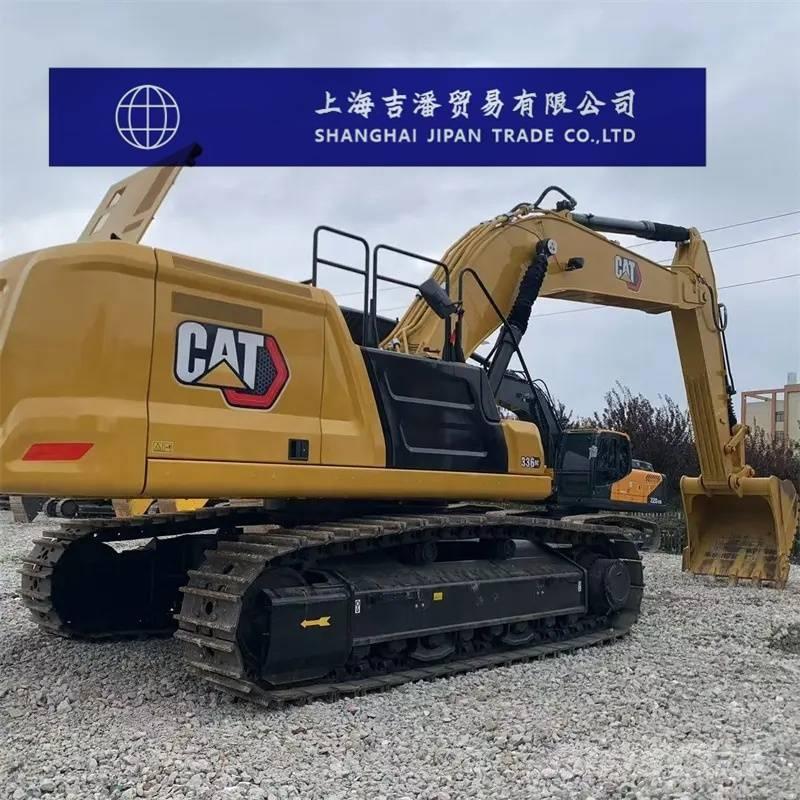

卡特 336 GC

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Parameter Details Bucket HD1.88m³/HD2.41m³ Engine Model Cat C7.1 Operating Weight 33900kg Shipping Height (Cab Top Height) 3170mm Shipping Length 11170mm/10890mm Tail Swing Radius 3530mm Counterweight Ground Clearance 1250mm Ground Clearance 510mm Maximum Digging Depth 7520mm/6670mm Maximum Reach at Ground Level 11050mm/10280mm Maximum Digging Height 10300mm/9990mm Maximum Loading Height 7080mm/6600mm Maximum Vertical Wall Digging Depth 5660mm/4650mm Bucket Digging Force (ISO) 197kN/233kN Stick Digging Force (ISO) 148kN/169kN Engine Power - ISO 9249 194kW Engine Power - ISO 14396 195kW Bore 105mm Stroke 135mm Displacement 7.1L Swing Speed 8.74rpm Fuel Tank 600L Cooling System 19L Engine Oil (Including Filter) 20L Swing Drive (Each Unit) 18L Final Drive (Each Unit) 8L Hydraulic System (Including Tank) 373L
