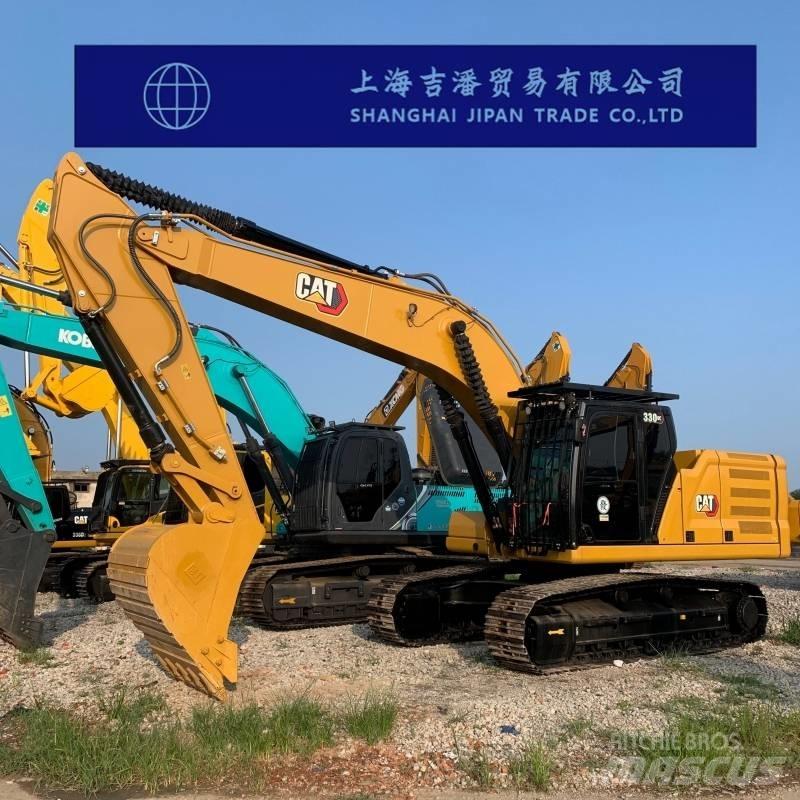

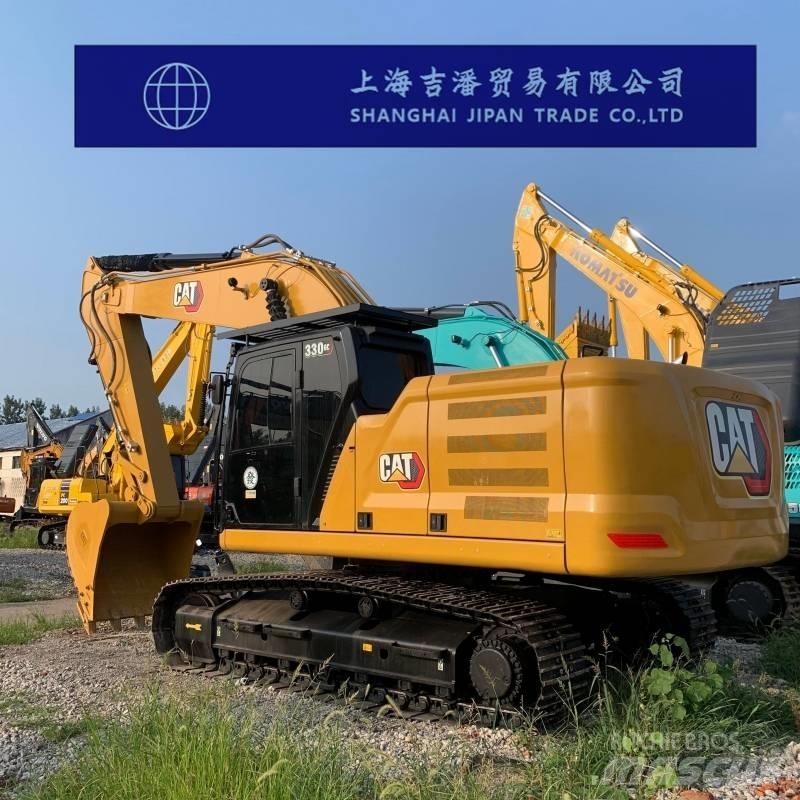

卡特 330 GC

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Power: Fuel Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)30 The overall working weight of the machine (kg) is 30,400 Bucket capacity (m³)1.6 Boom length (mm)6.15 The length of the boom (mm) is 3.2 Performance Rotational speed (rpm) : 11.5 The rotary torque (Nm) is 105k Bucket digging force (kN)179 The digging force of the bucket arm (kN) is 126 Power system Engine model: Cat® C7.1 Rated power (kw/rpm)151/2200 Displacement (L)7.01 Cylinder diameter × stroke (mm) : 105*135 Hydraulic system The maximum flow rate of the main pump (l/min) is 560 Working hydraulic circuit (Mpa)35 Walking hydraulic circuit (Mpa)35 Rotary hydraulic circuit (Mpa)28.4 Oil capacity Fuel tank (L)474 Hydraulic oil tank (L)147 Hydraulic System (L)310 Engine oil change volume (L) : 25 Coolant (L)25 Main body size Total transportation length (mm) : 10420 The total transportation width (mm) is 3190 The total transportation height (mm) is 3050 The total length of the tracks (mm) is 4850 Track plate width (mm)600/800 Track gauge (mm) : 2590 The ground clearance of counterweights (mm) is 1110 Minimum ground clearance (mm) : 490 The center distance of the idler wheels (mm) is 3990 Rear end turning radius (mm) : 3130 Scope of work Maximum excavation radius (mm) : 10,690 Maximum excavation depth (mm) : 7260 Maximum excavation height (mm) : 9980 Maximum unloading height (mm) : 6930 Maximum vertical excavation depth (mm) : 6030
