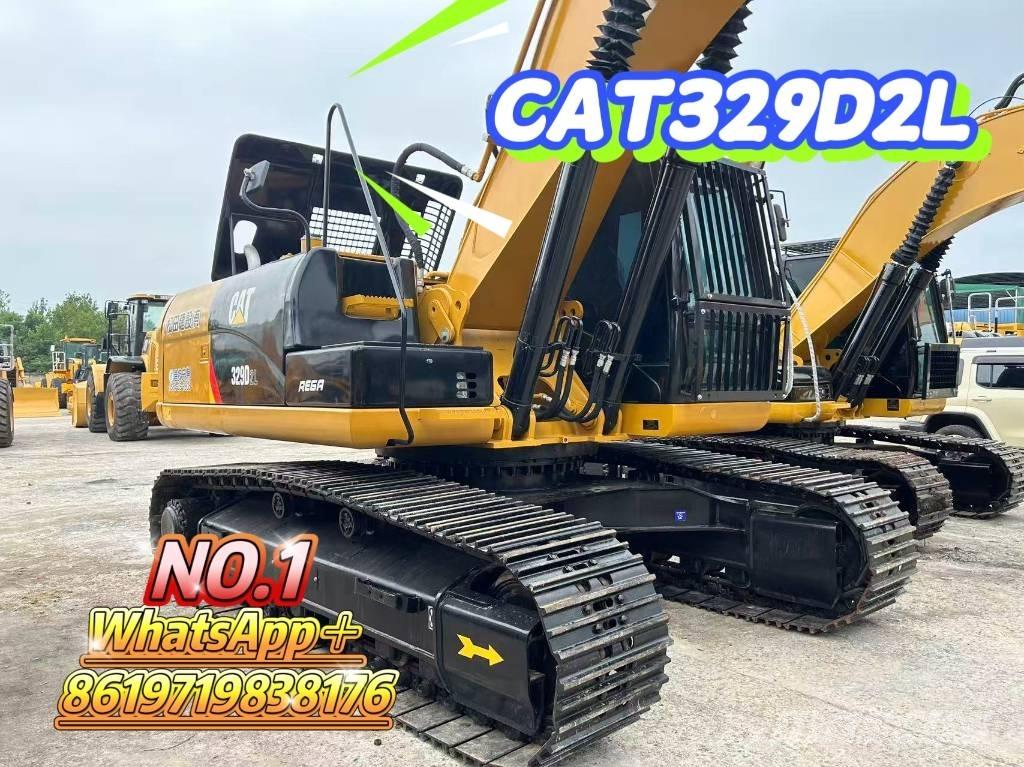

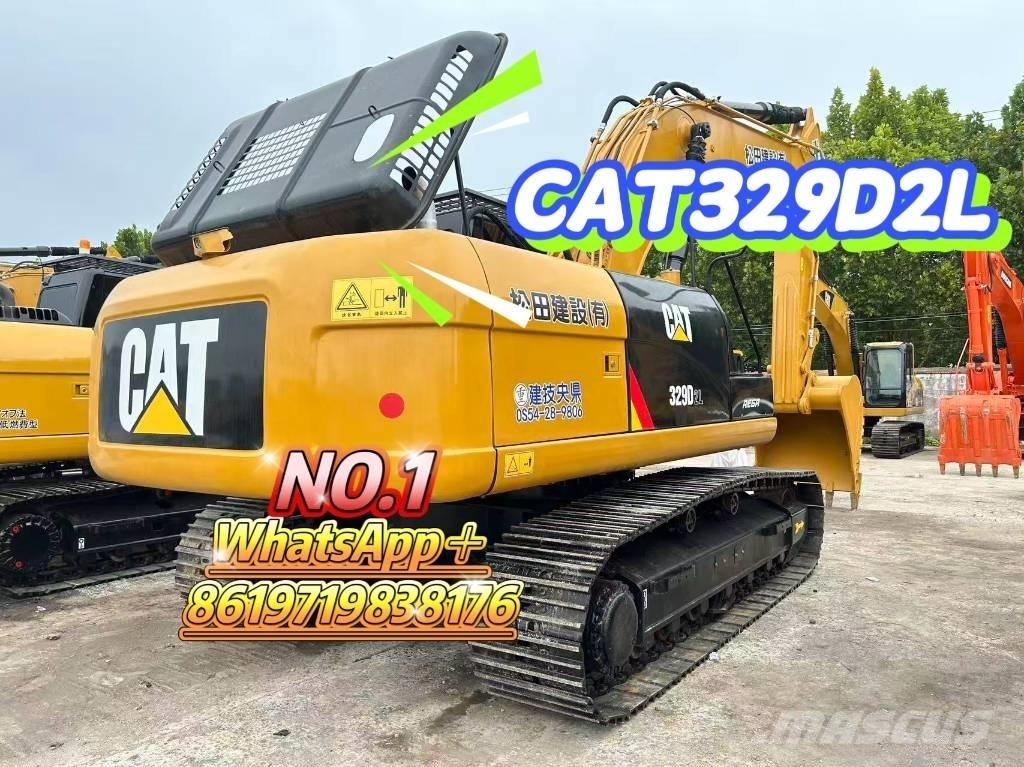

卡特 329 D2L

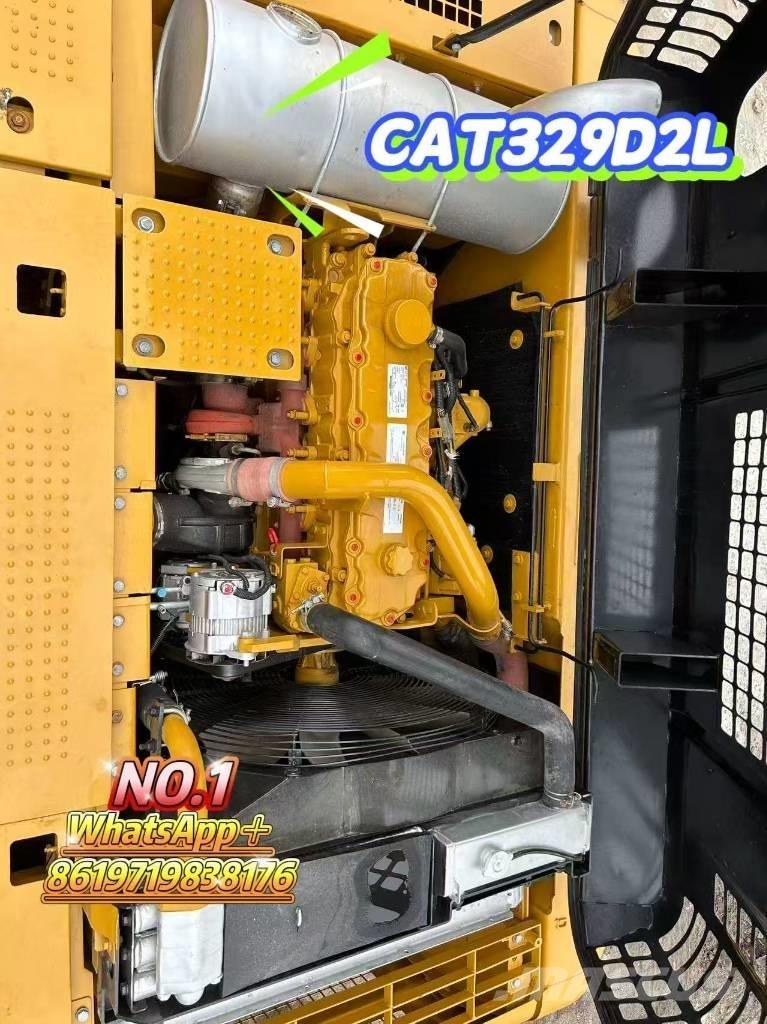

Key Specifications of CAT329D2L - Operating Weight: 30,115 kg - Bucket Capacity: 1.54 m³ - Swing Speed: 9.6 rpm - Travel Speed: 3.4 / 5.3 km/h - Bucket Digging Force: 179 kN - Stick Digging Force: 126 kN - Engine Model: Cat C7.1 ATAAC - Rated Power: 158 kW @ 1,800 rpm - Engine Displacement: 7.1 L - Main Pump Max Flow: 240 L/min - Working Hydraulic Circuit Pressure: 35 Mpa - Fuel Tank Capacity: 520 L - Hydraulic Tank Capacity: 257 L - Overall Transport Length: 10,360 mm - Overall Transport Width: 3,190 / 3,290 / 3,390 mm - Overall Transport Height: 3,330 mm - Cab Height: 3,040 mm - Counterweight Ground Clearance: 1,100 mm - Track Length: 4,860 mm - Track Shoe Width: 600 / 700 / 800 mm - Track Gauge: 2,590 mm - Minimum Ground Clearance: 480 mm - Rear Swing Radius: 3,080 mm - Max Digging Radius (Ground Level): 10,720 mm - Max Digging Depth: 7,290 mm - Max Digging Height: 10,040 mm - Max Dumping Height: 6,900 mm - Max Vertical Digging Depth: 6,160 mm
