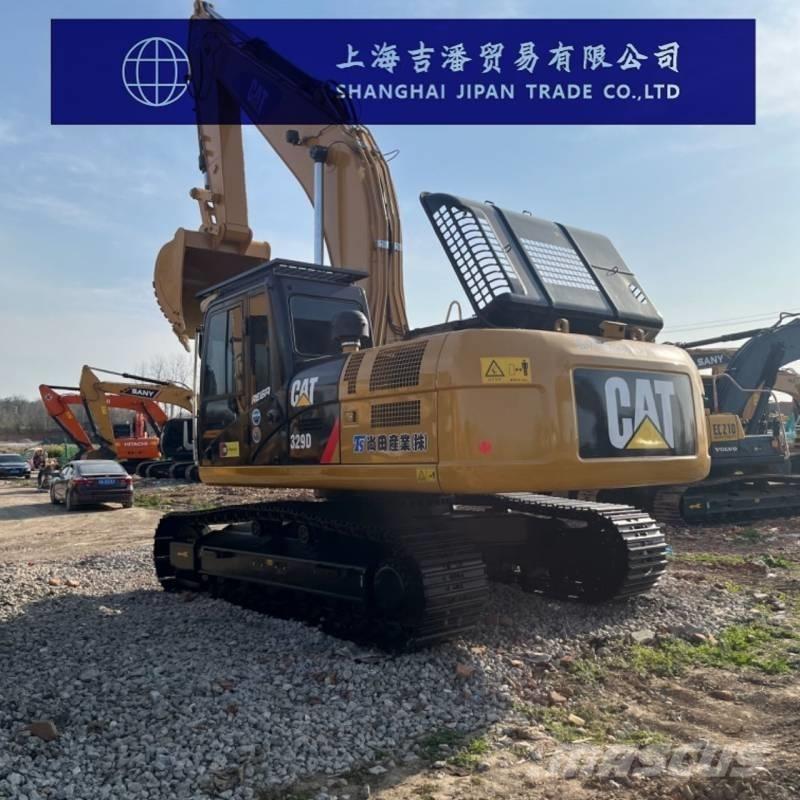

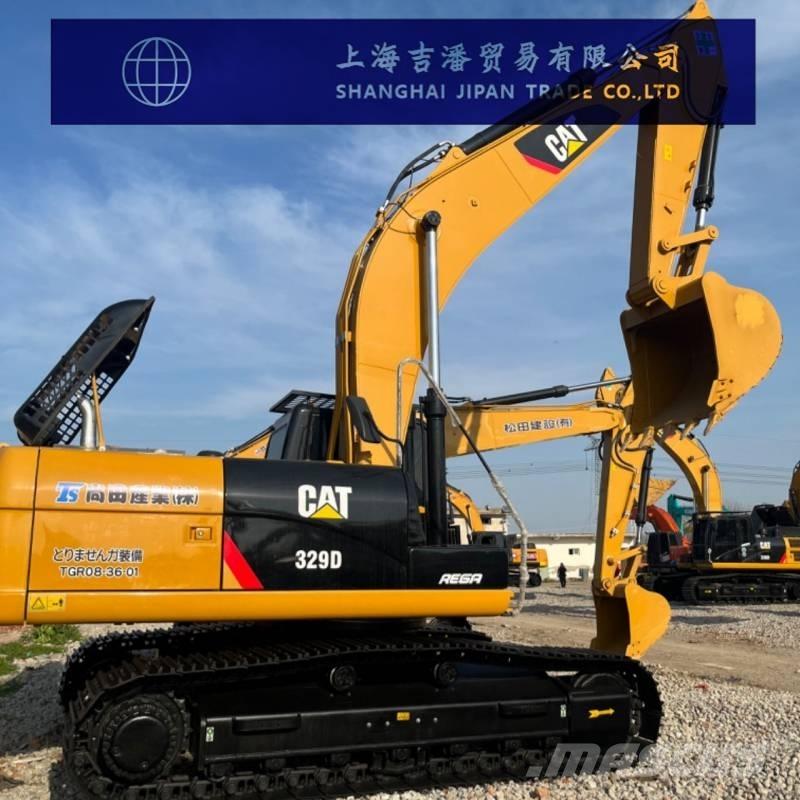

卡特 329 D

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck mounted cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Specification The working weight of the entire machine (kg) is 29,240 Bucket capacity (m³):1.1 Boom length (mm):6150 The length of the boom (mm) is 3200 Origin: the United States of America Tonnage (tons)29 Performance Rotational speed (rpm):10.2 Walking speed (km/h):3.5/5.3 Climbing ability (%)70/35° Power system Engine model: C7ACERT Rated power (kw/rpm)152/2000 Displacement (L)7.2 Number of cylinders (6 Cylinder diameter × stroke (mm)110×127 The cooling method is water cooling Hydraulic system The main overflow set pressure (Mpa) is 3.5 The maximum flow rate of the main pump (l/min) is 235 Working hydraulic circuit (Mpa)3.5 Walking hydraulic circuit (Mpa)3.5 Rotary hydraulic circuit (Mpa)2.75 Pilot oil circuit (MPa)3.9 Boom cylinders - Number × cylinder diameter × stroke (mm)140×1407 Bucket rod cylinder - number × cylinder diameter × stroke (mm)150×1646 Bucket cylinder - Number × cylinder diameter × stroke (mm)135×1156 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)520 Hydraulic oil tank (L)145 Hydraulic System (L)310(including the oil tank) Engine oil change volume (L):30 Coolant (L)30 Main body size Total transportation length (mm):10410 The total transportation width (mm) is 2990 The total transportation height (mm) is 3180 The total height of the cab (mm) is 3040 The ground clearance of counterweights (mm) is 1110 The grounding length of the track (mm) is 3490 The total length of the tracks (mm) is 4360 Track plate width (mm):600 The total width of the tracks (mm) is 2990 Track gauge (mm):2390 Minimum ground clearance (mm):490 Rear end turning radius (mm):3080 Scope of work The maximum excavation radius (mm) of the shutdown face is 10,600 Maximum excavation depth (mm):7170 Maximum excavation height (mm):9990 Maximum unloading height (mm):7020 Maximum vertical excavation depth (mm):6510 Maximum effective excavation depth (mm):7010 Width × height (mm) of the bulldozer board:no bulldozer shovel Lifting or deepening with a bulldozer (mm):no bulldozer
