卡特 329 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

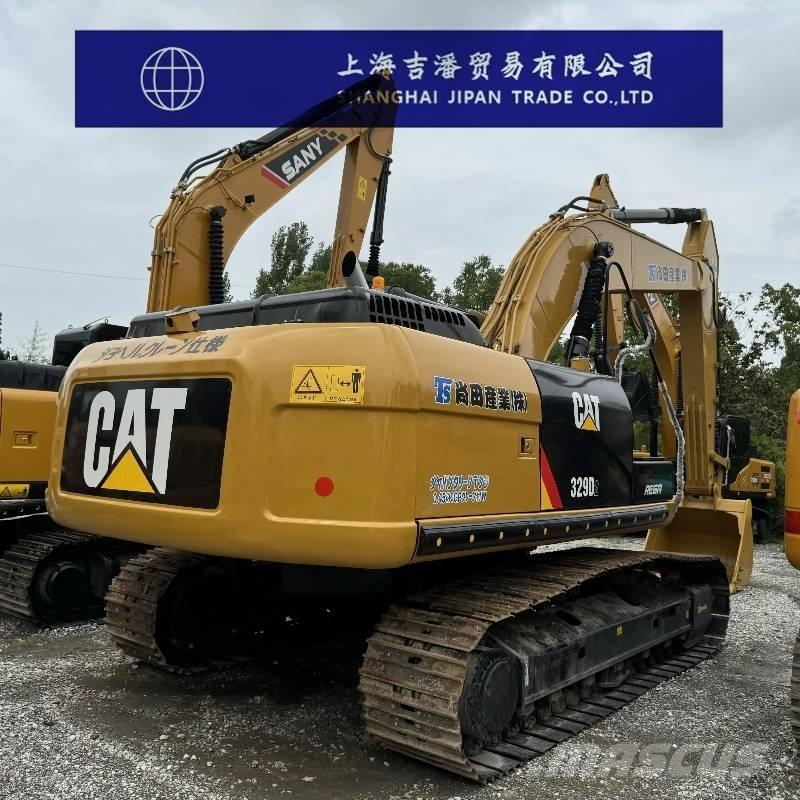

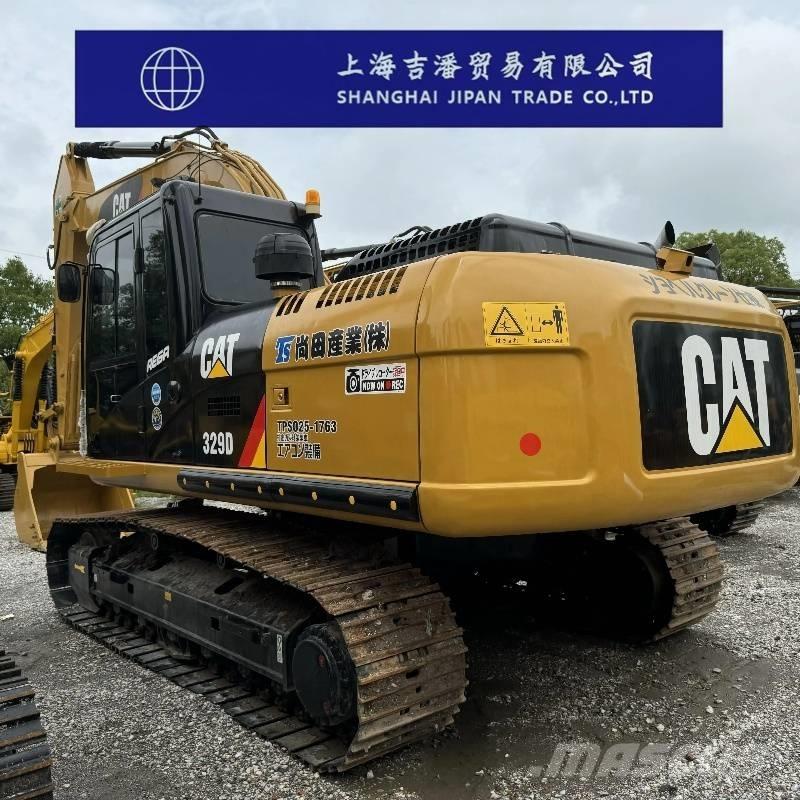

Caterpillar 329D Excavator Parameter Configuration specification The working weight of the whole machine (kg) is 29240 Bucket capacity (m³) 1.1 Boom length (mm) 6150 Stick length (mm) 3200 Origin: Japan Tonnage (tons) 29 Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Slewing speed (rpm) 10.2 Travel speed (km/h) 3.5/5.3 Climbing ability (%) 70/35° dynamical system Engine model C7ACERT Rated power (kw/rpm) 152/2000 Displacement (L) 7.2 Number of cylinders (pcs) 6 Bore × stroke (mm) 110×127 Cooling method: Water cooling Hydraulic system Main overflow set pressure (Mpa) 3.5 The maximum flow rate of the main pump (l/min) is 235 Working hydraulic oil circuit (Mpa) 3.5 Traveling hydraulic circuit (Mpa) 3.5 Slewing hydraulic circuit (Mpa) 2.75 Pilot oil circuit (MPa) 3.9 Boom cylinder - number × bore × stroke (mm) 140×1407 Bucket cylinder - number × bore × stroke (mm) 150×1646 Bucket cylinder - number × bore × stroke (mm) 135×1156 Whether the hydraulic crushing pipeline is standard or not Oil capacity Fuel tank (L) 520 Hydraulic Tank (L) 145 Hydraulic System (L) 310 (including fuel tank) Engine oil change volume (L) 30 Coolant (L) 30 Body size Total length of transport (mm) 10410 Total width of transport (mm) 2990 Total height of transport (mm) 3180 Cab total height (mm) 3040 Counterweight ground clearance (mm) 1110 Track grounding length (mm) 3490 Total track length (mm) 4360 Track shoe width (mm) 600 Total track width (mm) 2990 Track gauge (mm) 2390 Minimum ground clearance (mm) 490 Rear end slewing radius (mm) 3080 Scope of work The maximum excavation radius (mm) of the stopping surface is 10600 Maximum digging depth (mm) 7170 Maximum digging height (mm) 9990 Maximum unloading height (mm) 7020 Maximum vertical digging depth (mm) 6510 Maximum effective digging depth (mm) 7010 The width × height of the bulldozer plate (mm) are not available without a bulldozer There is no bulldozer shovel for lifting or pushing depth (mm).
