卡特 326

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

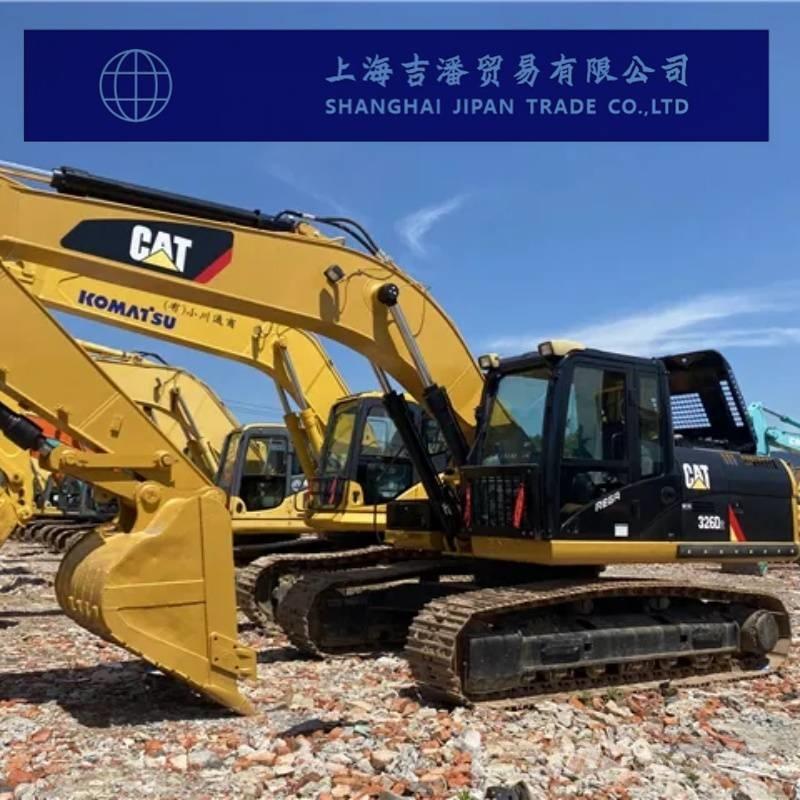

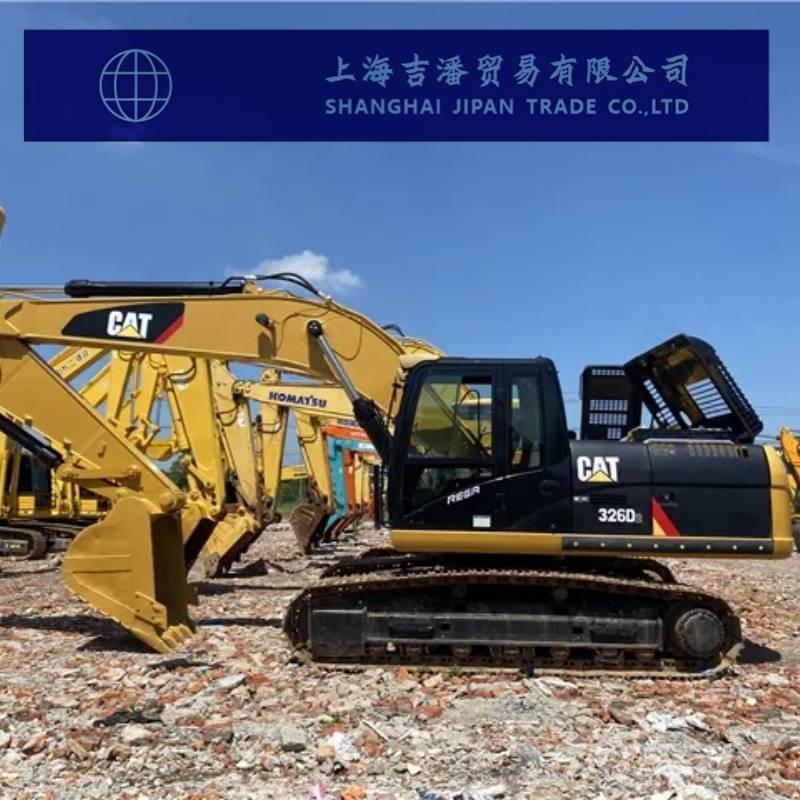

Caterpillar 326DL Excavator Parameter Configuration specification The working weight of the whole machine (kg) is 25560 Bucket capacity (m³) 1.35/1.57 Boom length (mm) 5300/5900 Stick length (mm) 2000/2500/2950 Origin: Xuzhou, Jiangsu Tonnage (tons) 26 Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Rotational speed (rpm) 9.6 Rotational torque (Nm) 73.4 Travel speed (km/h) 5.5 Bucket digging force (kN) 174 Stick digging force (kN) 122 Maximum traction (kN) 227 dynamical system Engine model Caterpillar C7 ACERT Rated power (kw/rpm) 140 Displacement (L) 7.2 Bore × stroke (mm) 110×127 Cooling method: Water cooling Hydraulic system Main overflow set pressure (Mpa) 35 The maximum flow rate of the main pump (l/min) is 235 Traveling hydraulic motor type 35 Slewing hydraulic motor type 24.5 Pilot oil circuit (MPa) 3.9 Boom cylinder - number × bore × stroke (mm) 2×135×1305 Bucket cylinder - number × bore × stroke (mm) 1×140×1660 Bucket cylinder - number × bore × stroke (mm) 1×150×1156 Oil capacity Fuel tank (L) 520 Hydraulic Tank (L) 145 Hydraulic system (L) 300 Engine oil change volume (L) 30 Coolant (L) 30 Body size Total length of transport (mm) 10060 Total Transport Width (mm) 3390 Total height of transport (mm) 3170 Cab total height (mm) 2980 Counterweight ground clearance (mm) 1060 Total track length (mm) 4630 Track shoe width (mm) 600 Total Track Width (mm) 3390 Track gauge (mm) 2590 Minimum ground clearance (mm) 470 Rear end turning radius (mm) 2940 Scope of work The maximum excavation radius of the shutdown surface (mm) is 10030 Maximum digging depth (mm) 6740 Maximum digging height (mm) 9660 Maximum unloading height (mm) 6700 Maximum vertical digging depth (mm) 5830 Maximum effective digging depth (mm) 6560
