卡特 323 GC

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

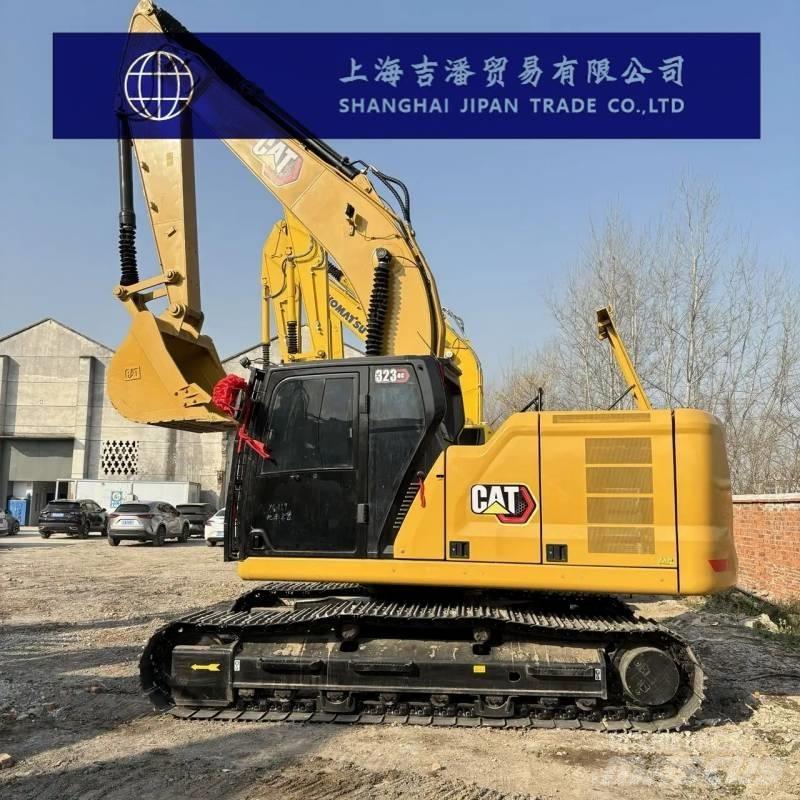

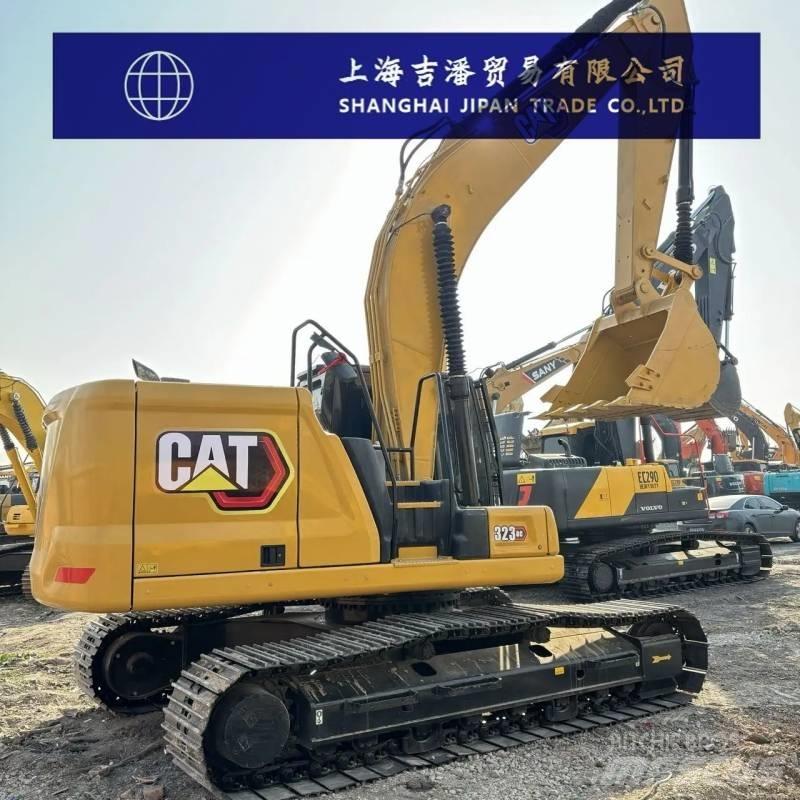

Parameter configuration of Caterpillar's new generation CAT®323 GC hydraulic excavator Specification Power fuel Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)23 The working weight of the entire machine (kg) is 22,500 Bucket capacity (m³) : 1.3 Boom length (mm) : 5700 The length of the boom (mm) is 2900 Performance Rotational speed (rpm) : 11.25 The rotary torque (Nm) is 82k Walking speed (km/h)5.7 Bucket digging force (kN) : 140 Bucket shaft digging force (kN)107 Maximum traction force (kN)205 Power system Engine model: Cat® C4.4 Rated power (kw/rpm) : 129.4/2000 Displacement (L) : 4.4 Cylinder diameter × stroke (mm) : 105*127 Emission standard: National IV Hydraulic system The maximum flow rate of the main pump (l/min) is 429 Working hydraulic circuit (Mpa)35 Walking hydraulic circuit (Mpa)34.3 Rotary hydraulic circuit (Mpa)26.8 Oil capacity Fuel tank (L)345 Hydraulic oil tank (L)115 Hydraulic System (L)234 Engine oil change volume (L)15 Coolant (L)25 Main body size The total transportation length (mm) is 9530 The total transportation width (mm) is 3650 The total transportation height (mm) is 2960 The total length of the track (mm) is 4450 Track plate width (mm) : 2980 Track gauge (mm) : 2380 The ground clearance of the counterweight (mm) is 1050 Minimum ground clearance (mm) : 470 Rear end turning radius (mm)2830 Scope of work Maximum excavation radius (mm) : 9870 Maximum excavation depth (mm) : 6730 Maximum excavation height (mm) : 9450 Maximum unloading height (mm) : 6490 Maximum vertical excavation depth (mm) : 5610
