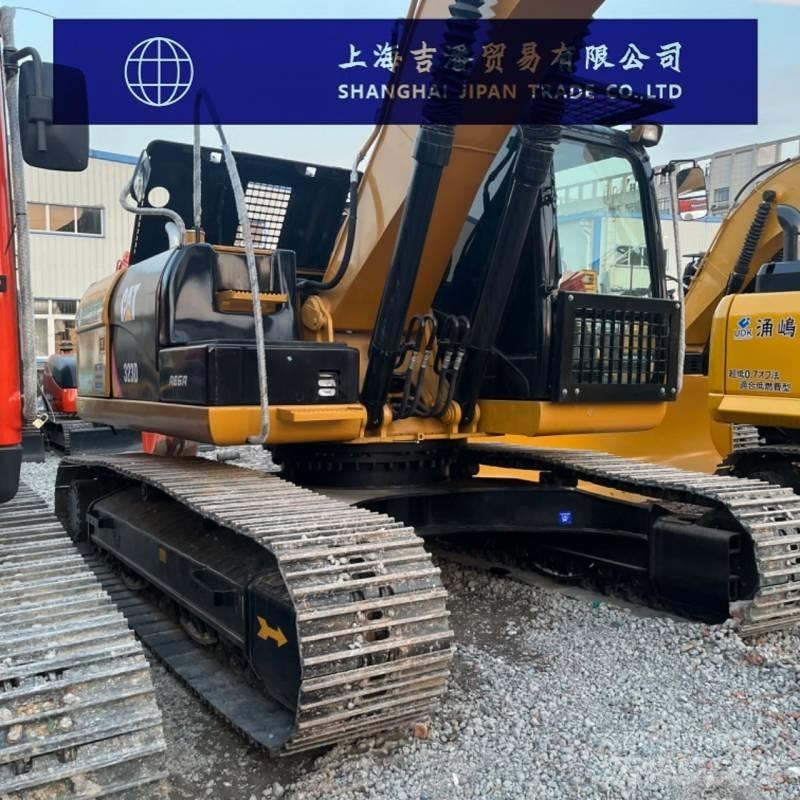

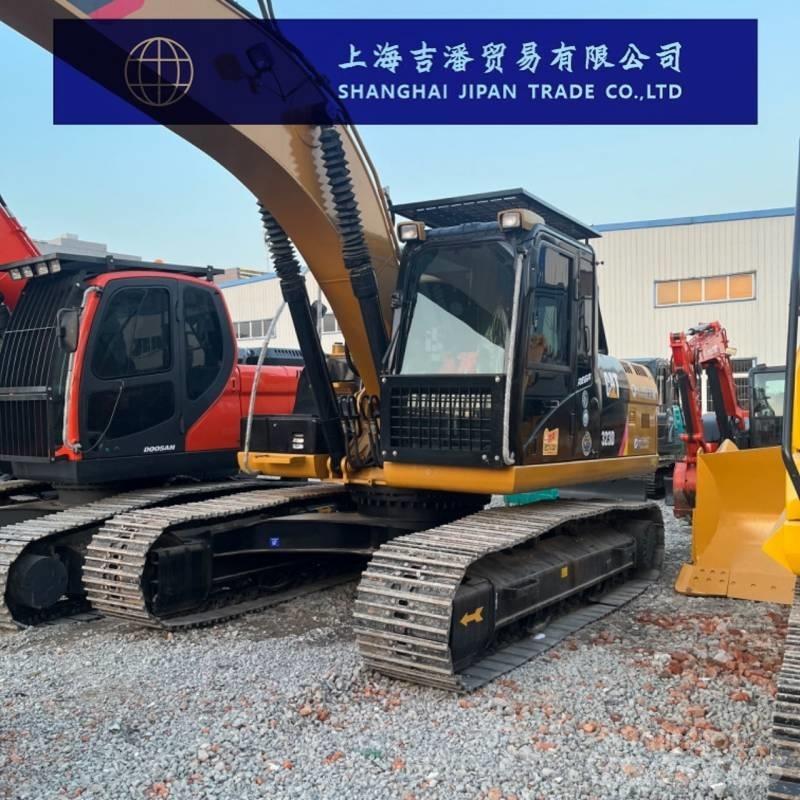

卡特 323 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)23 The working weight of the entire machine (kg) is 22,300-23,100 Bucket capacity (m³)1.2 Boom length (mm) : 5700 The length of the boom (mm) is 2900 Origin: Japan Performance Rotational speed (rpm) : 11.5 Walking speed (km/h) : 3.5/5.7 Climbing ability (%)70/35° Bucket digging force (kN) : 140 The digging force of the boom (kN) is 106 Power system Engine model: C6.4ACERT Rated power (kw/rpm) : 110/2000 Displacement (L)6.4 Number of cylinders (6 Cylinder diameter × stroke (mm) : 102×130 The cooling method is water cooling Hydraulic system The maximum flow rate of the main pump (l/min) is 205 Pilot oil circuit (MPa)3.9 Working hydraulic circuit (Mpa)3.5 Walking hydraulic circuit (Mpa)3.5 Rotary hydraulic circuit (Mpa)2.5 The main overflow set pressure (Mpa) is 3.5 Boom cylinders - number × cylinder diameter × stroke (mm)120×1260 Bucket rod cylinder - number × cylinder diameter × stroke (mm)140×1504 Bucket cylinder - Number × cylinder diameter × stroke (mm)120×1104 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)410 Hydraulic oil tank (L)120 Hydraulic System (L)260(including the oil tank) Engine oil change volume (L) : 30 Coolant (L)25 Main body size The total transportation length (mm) is 9460 The total transportation width (mm) is 3180 The total transportation height (mm) is 3050 The total height of the cab (mm) is 2950 The grounding length of the track (mm) is 3650 The total length of the track (mm) is 4455 Track plate width (mm) : 600 The total width of the tracks (mm) is 3180 Track gauge (mm) : 2380 Minimum ground clearance (mm) : 450 The ground clearance of the counterweight (mm) is 1020 The rear end turning radius (mm) is 2940 Scope of work The maximum excavation radius (mm) of the shutdown face is 9850 Maximum excavation depth (mm) : 6710 Maximum excavation height (mm) : 9470 Maximum unloading height (mm) : 6500 The maximum vertical excavation depth (mm) is 5860 The maximum effective excavation depth (mm) is 6380 Width × height (mm) of the bulldozer board without a bulldozer shovel Lifting or deepening with a bulldozer (mm) without a bulldozer
