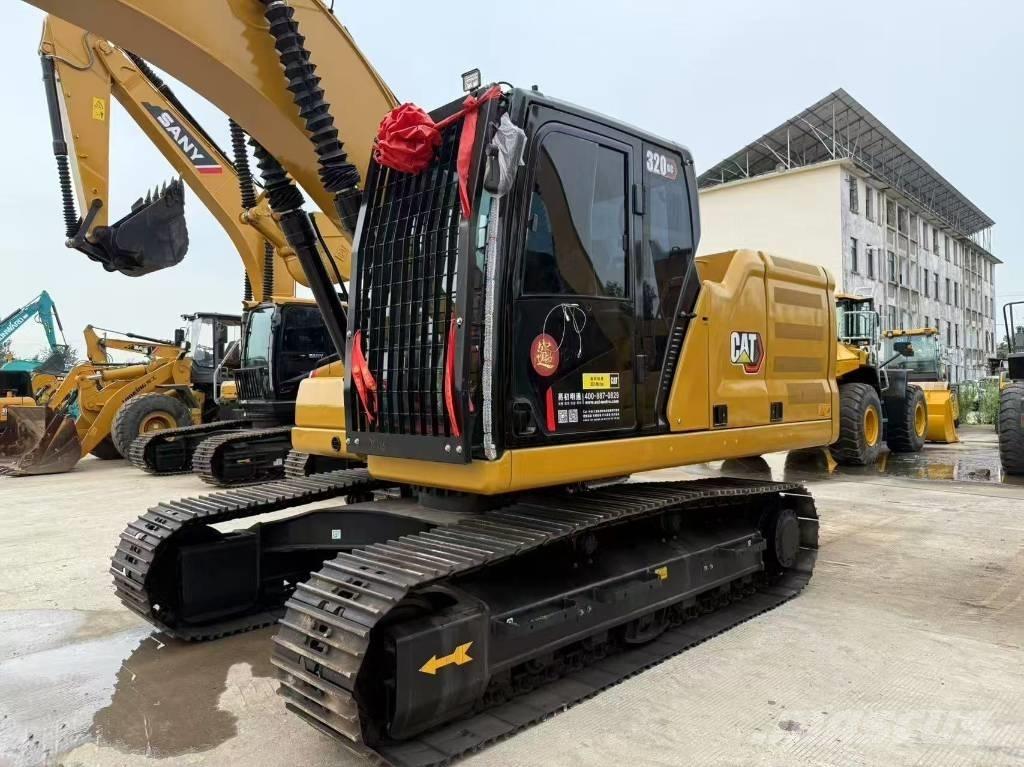

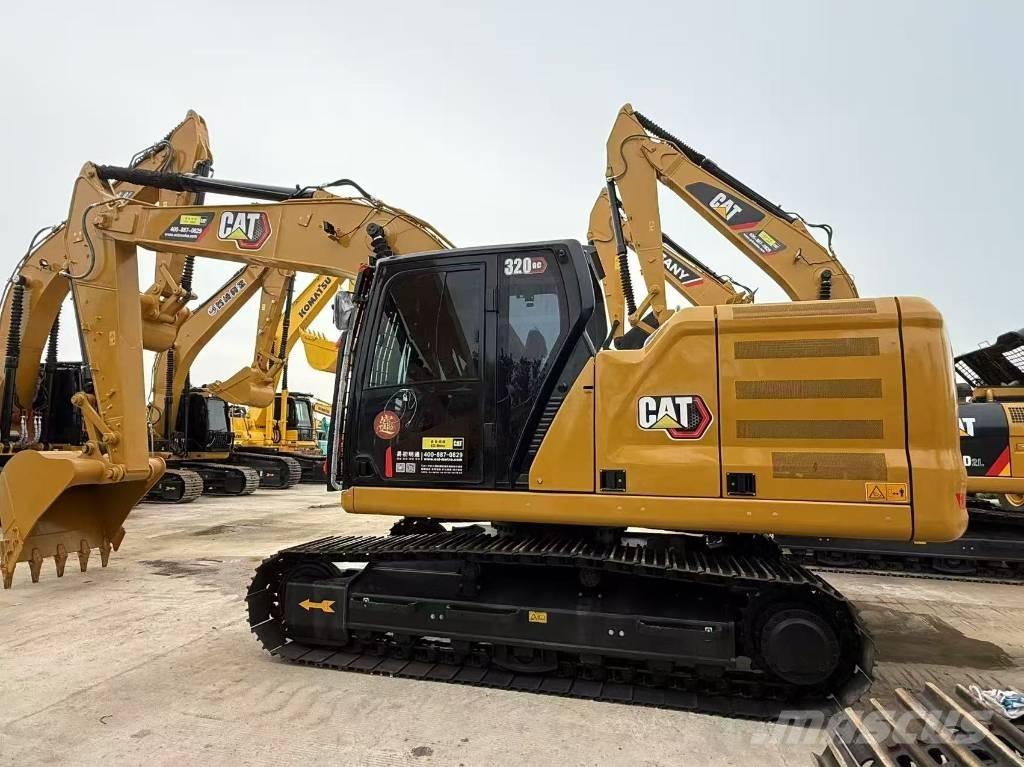

卡特 320 GC

Technical Specifications of CAT320GC Excavator - Machine Parameters - Operating Weight: 20,600 kg - Bucket Capacity: 1.0 m³ - Total Transport Length: 9,530 mm - Total Transport Width: 2,980 mm - Total Transport Height: 2,960 mm - Power System Parameters - Engine Model: Cat® C4.4 - Rated Power: 110 kW / 2000 rpm - Displacement: 4.4 L - Bore × Stroke: 105 × 127 mm - Hydraulic System Parameters - Maximum Flow of Main Pump: 429 L/min - Working Hydraulic Circuit Pressure: 35 MPa - Travel Hydraulic Circuit Pressure: 34.3 MPa - Swing Hydraulic Circuit Pressure: 25 MPa - Travel System Parameters - Travel Speed: 5.9 km/h - Total Track Length: 4,250 mm - Track Shoe Width: 600 / 700 mm - Track Gauge: 2,380 mm - Working Range Parameters - Maximum Digging Radius: 9,770 mm - Maximum Digging Depth: 6,630 mm - Maximum Digging Height: 9,440 mm - Maximum Dumping Height: 6,580 mm
