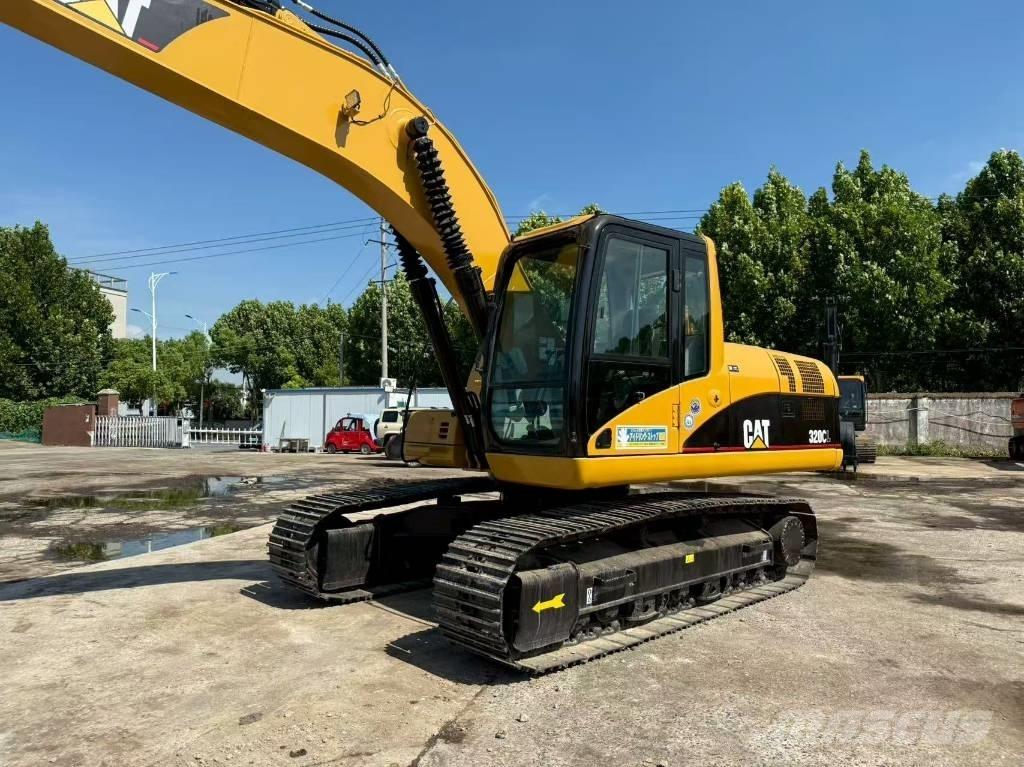

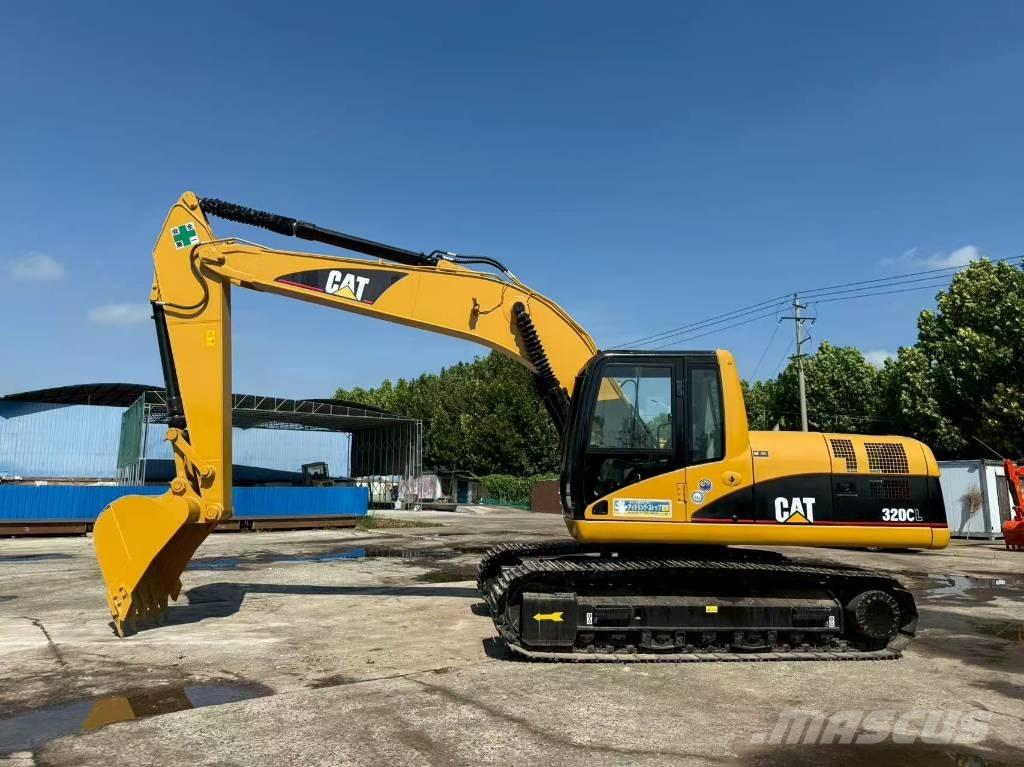

卡特 320 C L

操纵杆 空调 便准铲斗 发动机加热器 发动机润滑油清滤器

Technical Specifications of Caterpillar 320CL Excavator - Machine Parameters: - Operating weight: 21,415 kg - Bucket capacity: 0.8 m³ - Boom length: 5,680 mm - Arm length: 2,900 mm - Swing speed: 11.5 rpm - Travel speed: 3.4/5.5 km/h - Bucket digging force: 132 kN - Arm digging force: 99 kN - Ground pressure: 44.1 Kpa - Power System: - Engine model: Caterpillar CAT 3066ATAAC - Rated power: 110 kW / 1,800 rpm - Displacement: 6.4 L - Bore × stroke: 102 × 130 mm - Hydraulic System: - Maximum main pump flow: 205 L/min - Working hydraulic circuit pressure: 34.3 MPa - Travel hydraulic circuit pressure: 34.3 MPa - Swing hydraulic circuit pressure: 26 MPa - Pilot circuit pressure: 4.12 MPa - Boom cylinders: 2 units (120 × 1,260 mm) - Arm cylinders: 1 unit (140 × 1,430 mm) - Bucket cylinders: 1 unit (120 × 1,030 mm) - Fluid Capacities: - Fuel tank: 320 L - Hydraulic oil tank: 120 L - Hydraulic system: 200 L - Engine oil change capacity: 30 L - Coolant: 24 L - Dimensions: - Overall transport length: 9,390 mm - Overall transport width: 2,980 mm - Overall transport height: 3,050 mm - Track contact length: 3,650 mm - Overall track length: 4,450 mm - Track shoe width: 600 mm - Overall track width: 2,980 mm - Track gauge: 2,380 mm - Minimum ground clearance: 460 mm - Rear swing radius: 2,770 mm
