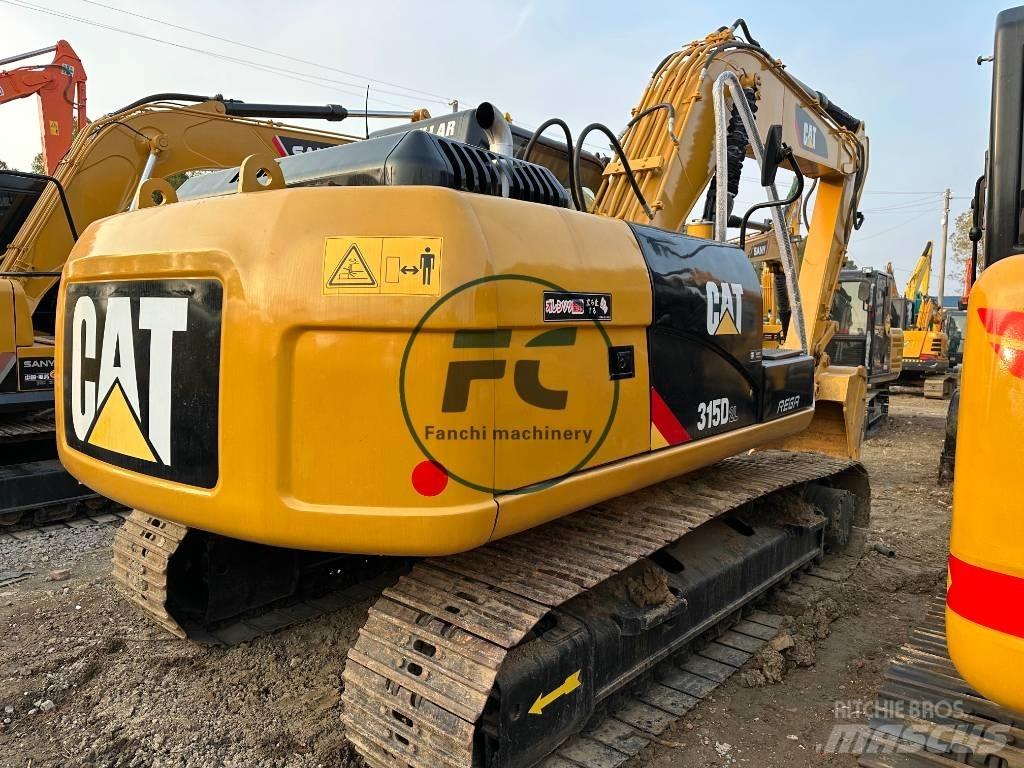

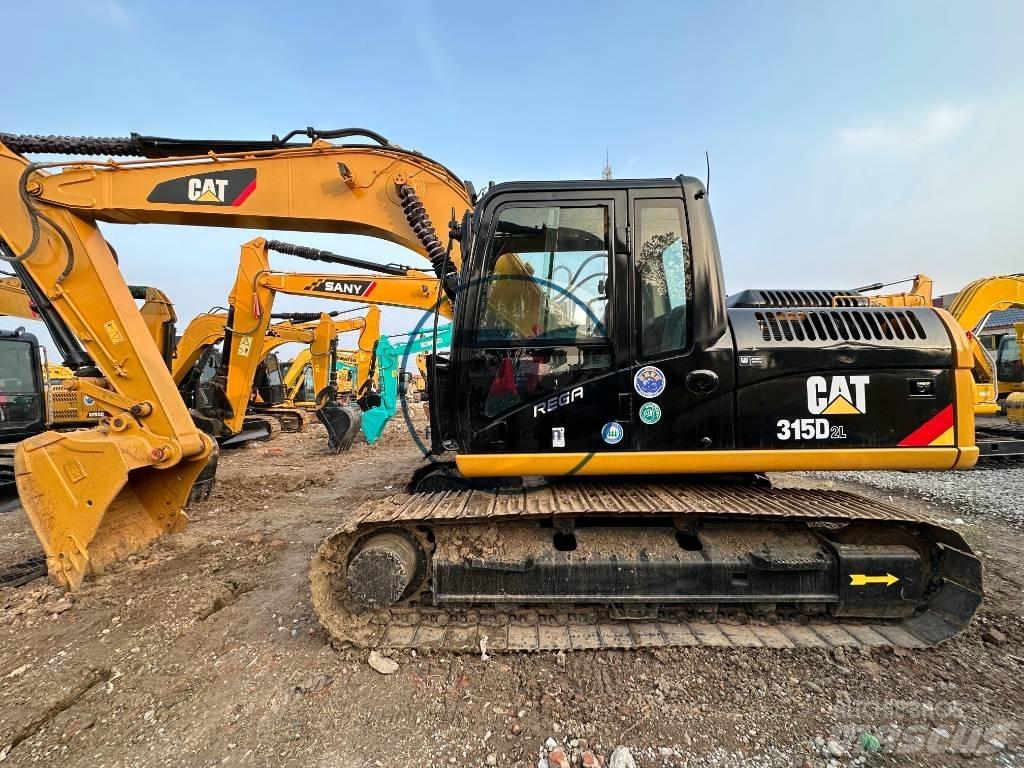

Caterpillar 315D2 Hydraulic Excavator - Product Description
Overview:
The Cat® 315D2 is a 15-ton class hydraulic excavator designed for demanding construction, excavation, and material handling applications. This Tier 4 Final compliant machine delivers exceptional power, efficiency, and durability, making it ideal for medium to large-scale projects requiring reliable performance and low operating costs.
Key Specifications:
Operating Weight: 15,000 - 16,200 kg (depending on configuration)
Engine Power: 93 kW (125 hp) @ 1,800 rpm
Bucket Capacity: 0.53 - 1.0 m³ (depending on bucket type)
Max Digging Depth: 6.5 m (with standard arm)
Max Reach at Ground Level: 9.5 m
Swing Speed: 10.5 rpm
Advanced Features:
Efficient Power System:

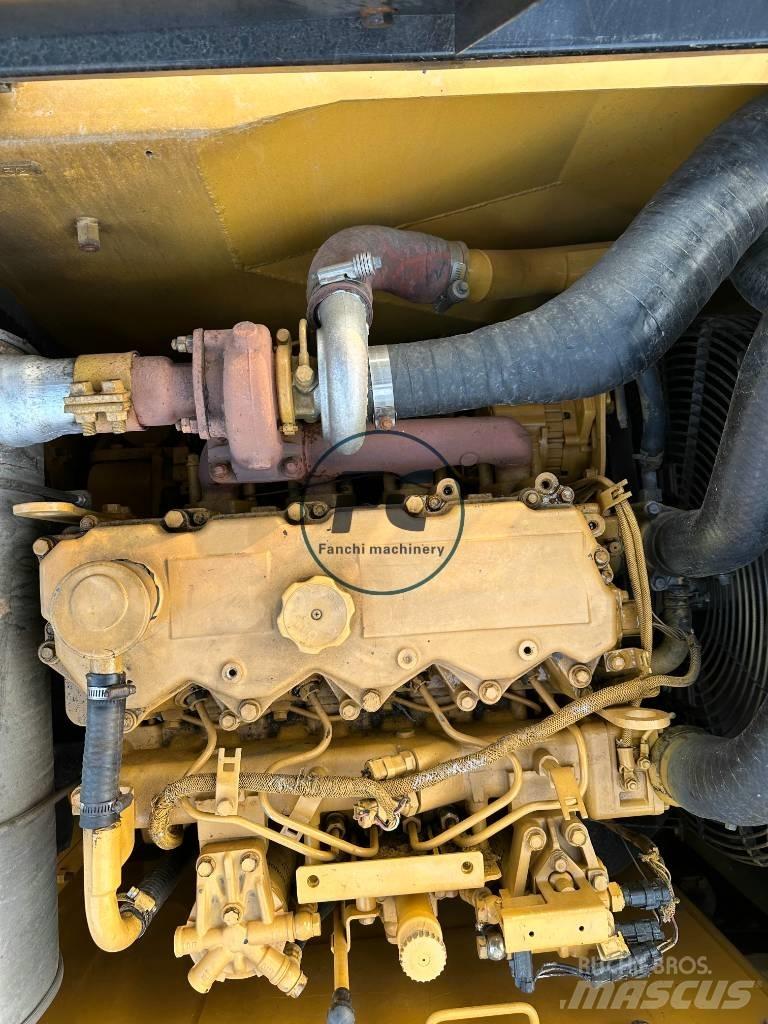

Cat C4.4 ACERT engine meeting Tier 4 Final emissions standards
Cat Clean Emissions Module (CEM) with SCR technology
Eco Mode reduces fuel consumption by up to 15%
Automatic engine speed control for optimal performance
Enhanced Hydraulic Performance:
Advanced load-sensing hydraulic system
Two-pump hydraulic system with 2 x 120 L/min flow
Boom and arm regeneration circuits
Bucket digging force: 102 kN
Superior Operator Environment:
Spacious ROPS/FOPS certified cab with 74 dB noise level
8-inch LCD monitor with advanced diagnostics
Air suspension seat with multiple adjustments
Advanced climate control system
Durability & Serviceability:
Reinforced upper frame and undercarriage
Extended 1,000-hour hydraulic oil change interval
Slide-out radiator and cooling package
Centralized lubrication points
Technology & Safety:
Optional Cat Product Link™ for remote monitoring
Advanced security system
LED lighting package available
Automatic swing brake system
Applications:
General construction and excavation
Road and infrastructure projects
Quarry and aggregate operations
Utility installation and maintenance
Material handling and loading
Comparison with Previous Models:
The 315D2 offers 10% better fuel efficiency than the 315D model, with improved hydraulic responsiveness and 5% greater digging forces. The updated cab design provides better visibility and operator comfort.
Available Attachments:
Hydraulic breakers (up to 1,500 ft-lb class)
Grapple and sorting buckets
Tiltrotator systems
Auger drives
Compaction plates
Warranty & Support:
Standard 2-year/3,000 hour warranty with optional extended coverage through Cat Customer Value Agreements.显示更多
