SmartTEH ST-20/750

不含税价格

向卖家询价

Compnay LOGO
Images9
SmartTEH ST-20/750 输送机械
SmartTEH ST-20/750 输送机械
SmartTEH ST-20/750 输送机械
Favorite收藏
share分享
Save search保存搜索
打印

信息

类别
输送机械
品牌/型号
SmartTEH ST-20/750
生产年份
2019
使用小时
220 小时
附加选项
演示
国家
拉脱维亚
一般等级
1
2
3
4
5
马斯客 ID
055DF23C

详细信息

先前车主有几个
1
售后服务记录
是
毛重
40000 公斤
移动方式
可移动的
处理能力
750 tn/h
发动机
diesel type KDI
发动机制造商
Kohler
运输尺寸(长x宽x高)
28.5 x 3.9 x 3.85 mm
制造国
拉脱维亚
成交条件
EXW
附属装置
remote control, remote diagnistics
配件
操纵系统
其他信息

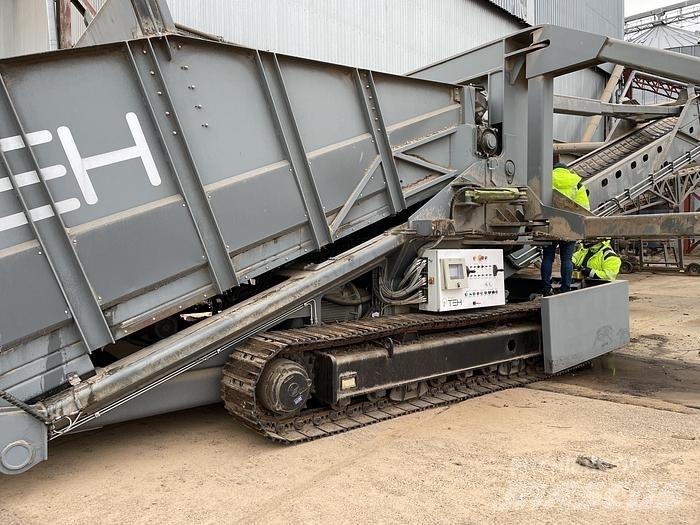

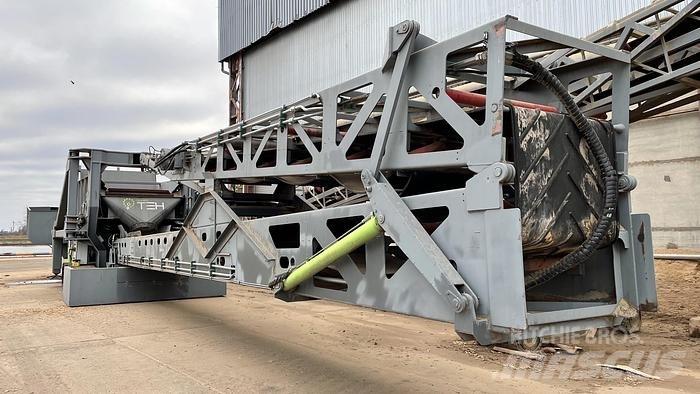

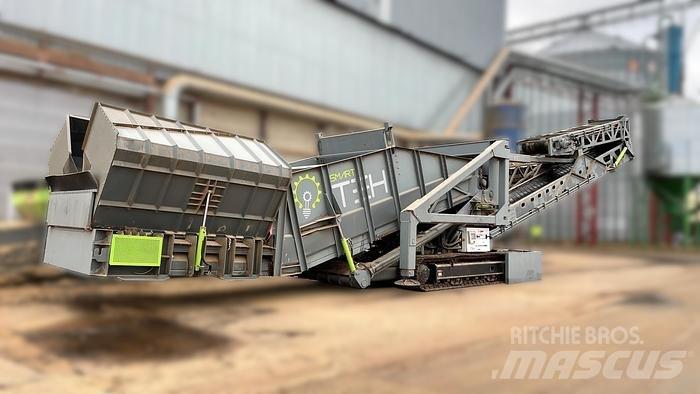

Mobile radial stacker/feeder, or shiploader. Designed for material of bulk density of 750 kg/cbm, equipped with wireless remote control and touchscreen control panel. Diesel engine is used for travelling, and electrical power is necessary for all the other functions. Maximum capacity with boom lifting angle at 2 degrees is 1150 cbm/h; maximum with boom angle of 27 degrees is 720 cbm/h. It is equipped with two outriggers, capable of supporting operation with boom turned to either side. Boom maximum angle of turn is 60 degrees to both sides, or 17 meters from one side to another. Maximum boom height is 12 meters, or 27 degrees. Boom is foldable. Shiploader is equipped with crawlers, maximum travelling speed is 220 m/h. Feed hopper can be lifted up till 6.5 degrees, hopper sides can be tilted upwards to facilitate feeding of material to conveyor 1. Conveyor 1 (receiving from hopper and delivering to boom conveyor) is speed-regulated, depending on amount of material and to prevent from overfeeding of boom conveyor. All main bearings have temperature measuring and monitoring system. There is a remote connection available via mobile cellular network, which allows the manufacturer to assist with errors and troubleshooting. Apart from possibility of receiving material directly from trucks, the shiploader can be used with feeding system of any kind, like extra conveyors or wheel loaders, etc. Video: https://cloud.aquila-harborcranes.com/s/bJFgyCCzXJMN2mK Photo: https://cloud.aquila-harborcranes.com/s/itz6B6ecnnHzZAF显示更多

Aquila Harbor Cranes SIA

Getlinu 7A LV-2121 Rumbula Stopiņu novads 拉脱维亚
