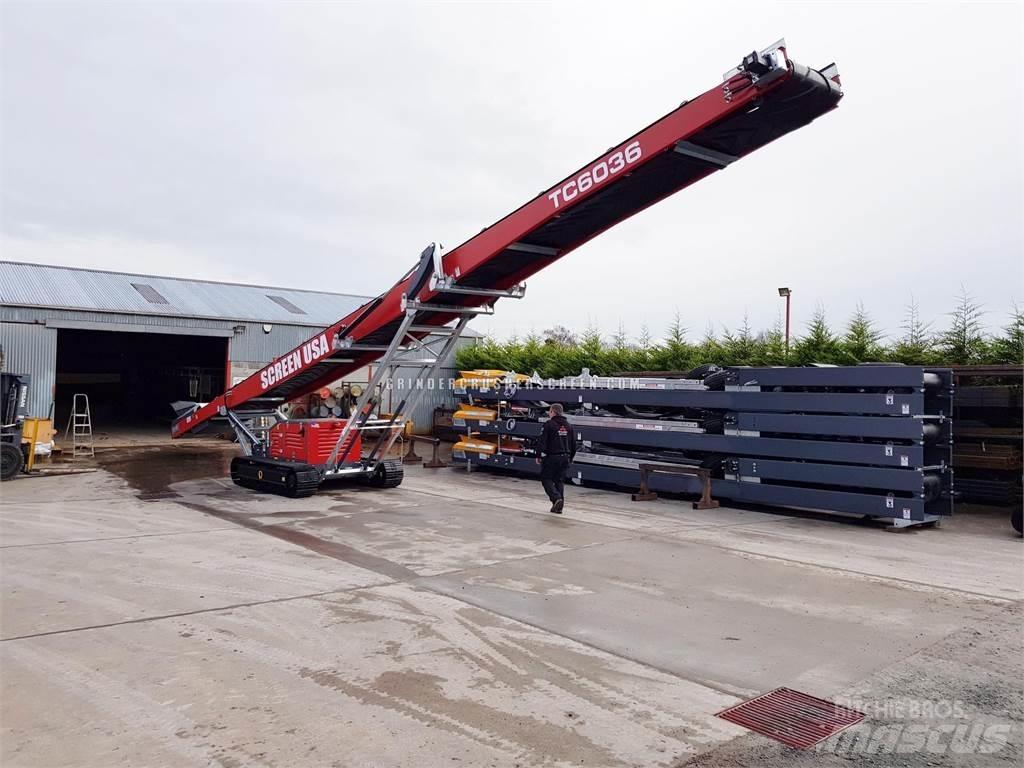

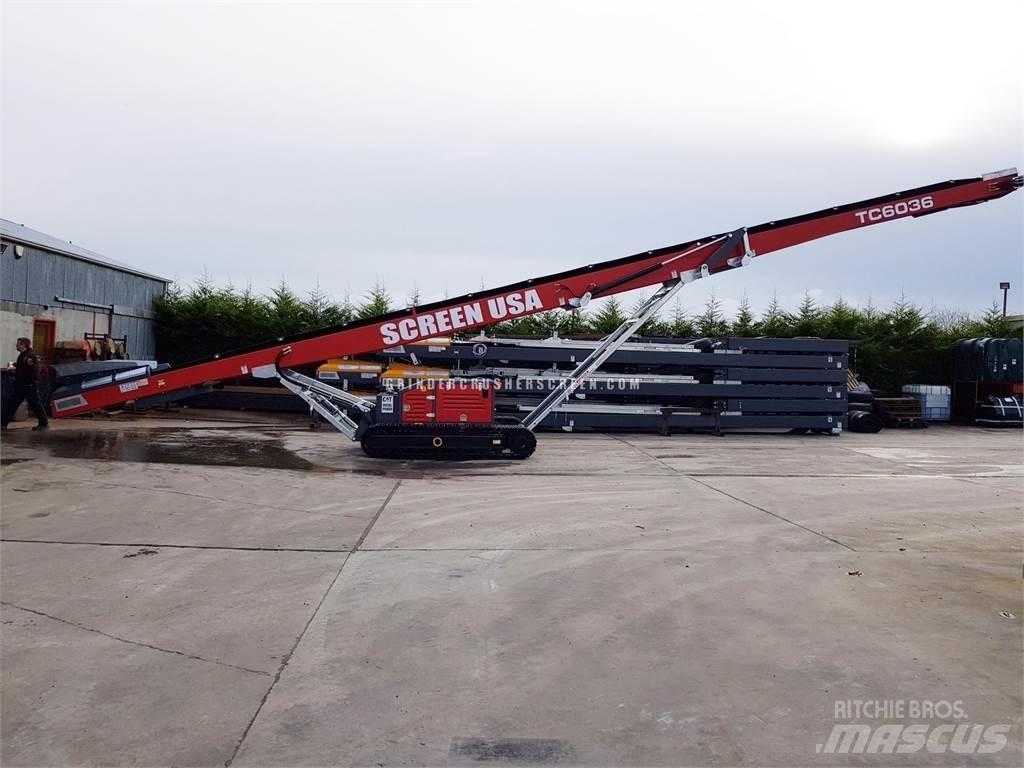

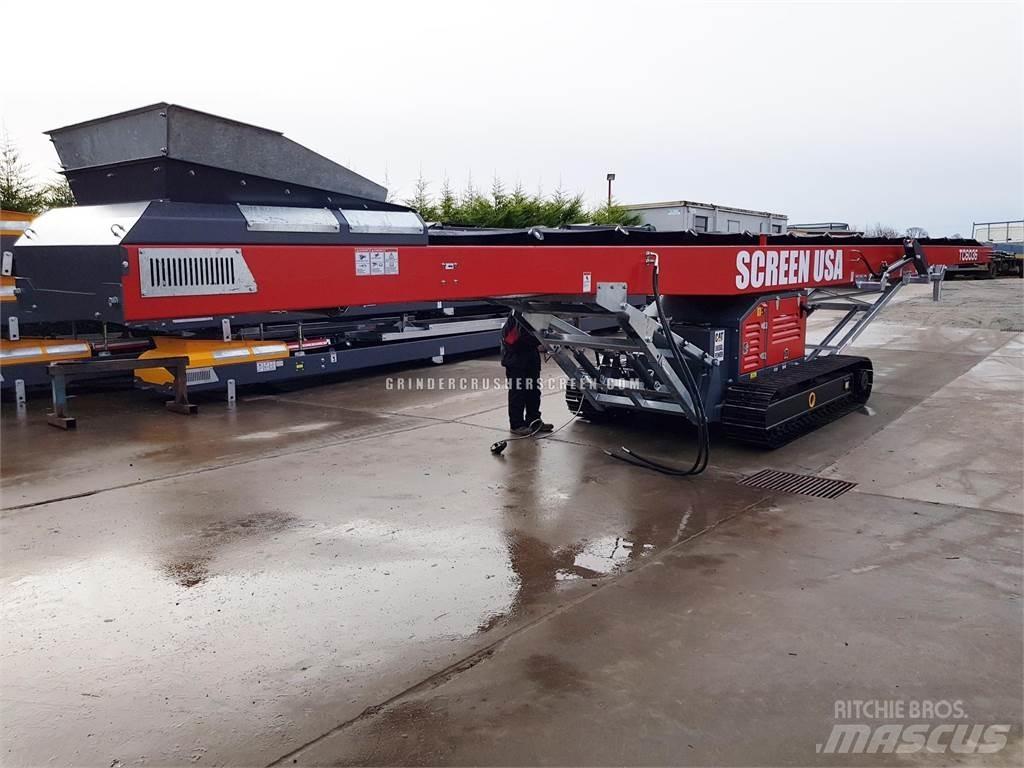

Description: 36 wide, 60' long track mounted, folding conveyor. (50' option also available, TC5036) ENGINE - 49HP Deutz 2.9 Tier 4 Final diesel FRAME - Deep folded plate frame constructed with heavy duty cross bracing for strength and stability - Hydraulic folding head section IDLERS - 35 degree CEMA C class idlers - Impact bed at feedpoint UNDERCARIAGE - 8' tracks with 16 shoes - Umbilical cord remote control - Hydraulic raise and lower - Galvanized trestle with variable feed and discharge heights FEEDBOOT - Drilled for liners - 5-1/2' long with adjustable rubber skirting BELT - 2-Ply equivalent (European style) - Chrevron belt (Optional) - Self adjusting polyurethane belt cleaner OTHER - Mesh under conveyor guarding to 5-1/2 from ground - Side skirting 5-1/2' from ground - All nip points guarded - Remote greasing to all bearing from ground level - Can ship in a 40' container - Max stockpiling height of 26' (at 26 degrees) - Max stockpiling capacity of 745 cu.yd. TRANSPORTATION DIMENSIONS: Length: 37' Width: 7'-5 Height: 8'-4 Weight: 17,500 lbs Conveyor ______ Tags: NewEq HB HPR000Z69T9H显示更多
